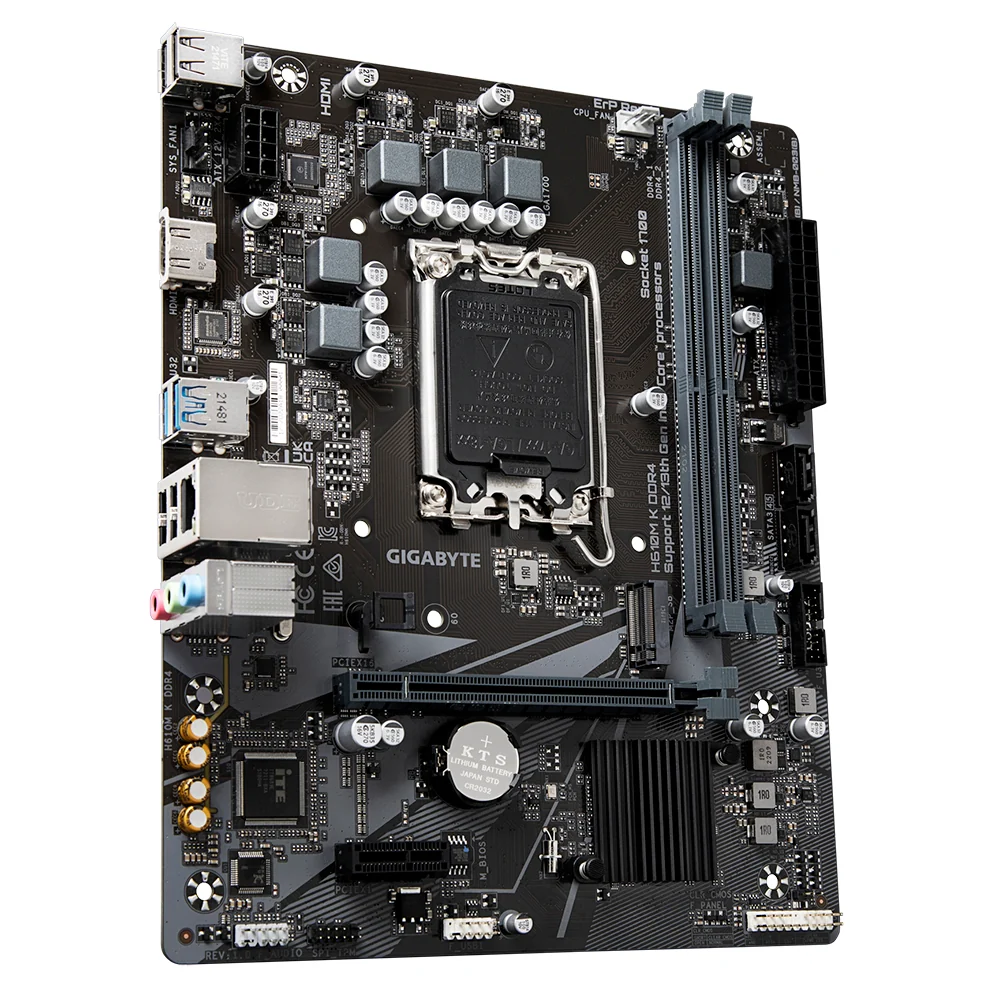

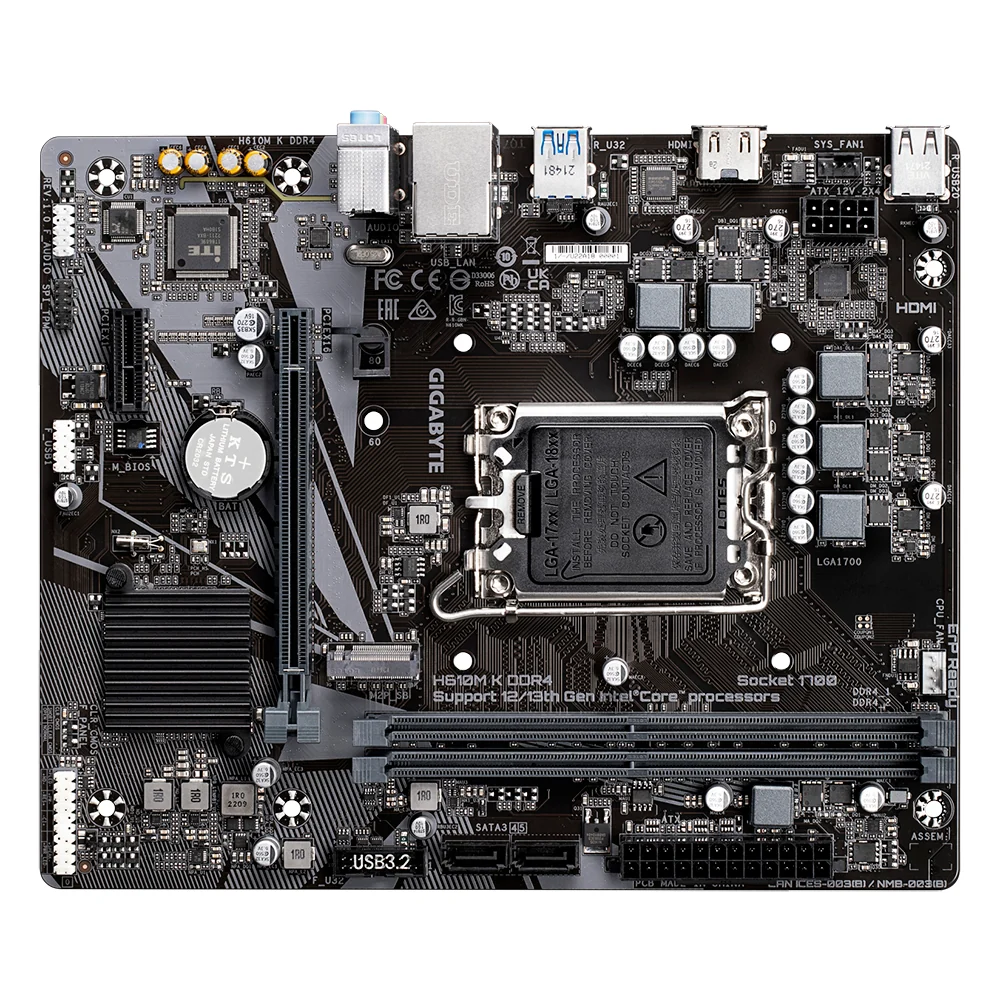

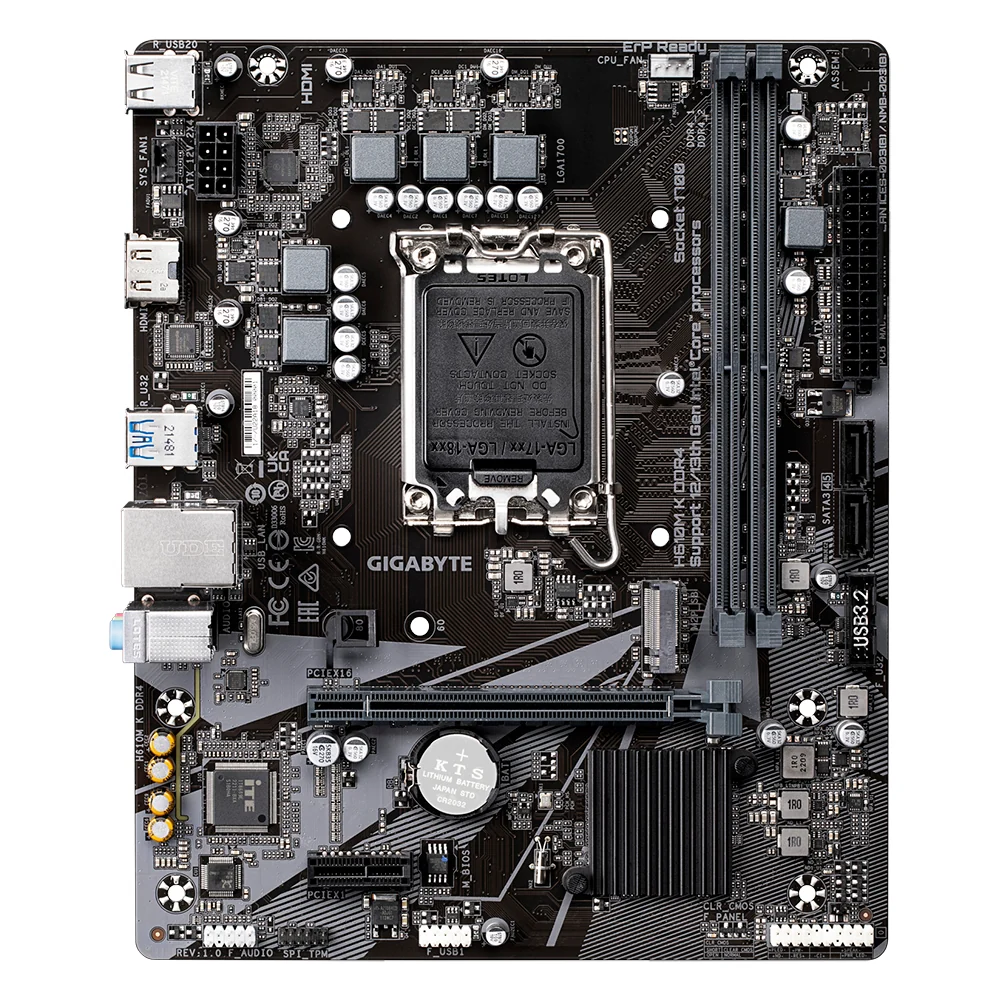

Gigabyte H610M K DDR4 Micro ATX (mATX) Intel Motherboard | Intel LGA1700 Socket

Product Highlights • Supports Intel® Core™ 14th, 13th and 12th Gen processors • Intel® H610 chipset with LGA1700 socket • 2 x DDR4 DIMM slots supporting up to 64GB memory • Supports DDR4 memory speed up to 3200MT/s • HDMI output supports up to 4096 x 2160 @ 60Hz • 1 x M.2 slot and 2 x SATA 6Gb/s ports for storage expansion • Micro ATX form factor suitable for compact PC builds Key Specifications Model: H610M K DDR4 Product Type: Intel Motherboard Form Factor: Micro ATX / mATX Chipset: Intel H610 Socket: Intel LGA1700 CPU Support: • Intel® Core™ 14th Gen Processors • Intel® Core™ 13th Gen Processors • Intel® Core™ 12th Gen Processors • Intel® Pentium® Gold Processors • Intel® Celeron® Processors Memory: 2 x DDR4 DIMM Maximum Memory: Up to 64GB Memory Speed: DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s Memory Support: Dual Channel, Intel® XMP, Non-ECC Un-buffered DDR4 Video Output: • 1 x HDMI port, supports up to 4096 x 2160 @ 60Hz Expansion Slots: • 1 x PCIe 4.0 x16 slot • 1 x PCIe 3.0 x1 slot Storage: • 1 x M.2 connector, Socket 3, M Key, Type 2280 / 2260 • Supports PCIe 3.0 x4 / x2 SSD • 2 x SATA 6Gb/s connectors LAN: Realtek® GbE LAN, 1Gbps / 100Mbps Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio Rear I/O Ports: • 1 x HDMI port • 2 x USB 3.2 Gen 1 ports • 4 x USB 2.0 / 1.1 ports • 1 x RJ-45 port • 3 x Audio jacks Internal I/O Connectors: • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x CPU fan header • 1 x System fan header • 1 x M.2 Socket 3 connector • 2 x SATA 6Gb/s connectors • 1 x Front panel header • 1 x Front panel audio header • 1 x USB 3.2 Gen 1 header • 1 x USB 2.0 / 1.1 header • 1 x Trusted Platform Module header • 1 x Clear CMOS jumper Special Features: • PCIe 4.0 Design • NVMe PCIe 3.0 x4 M.2 • GbE LAN with Bandwidth Management • Smart Fan 6 • GIGABYTE APP Center • Q-Flash • Anti-Sulfur Resistors Design Operating System: Windows® 11 64-bit, Windows® 10 64-bit Dimensions & Weight Dimensions: 22.6 x 18.5 x 2.0 cm Weight: 0.59 kg Warranty: 3 Years Warranty
