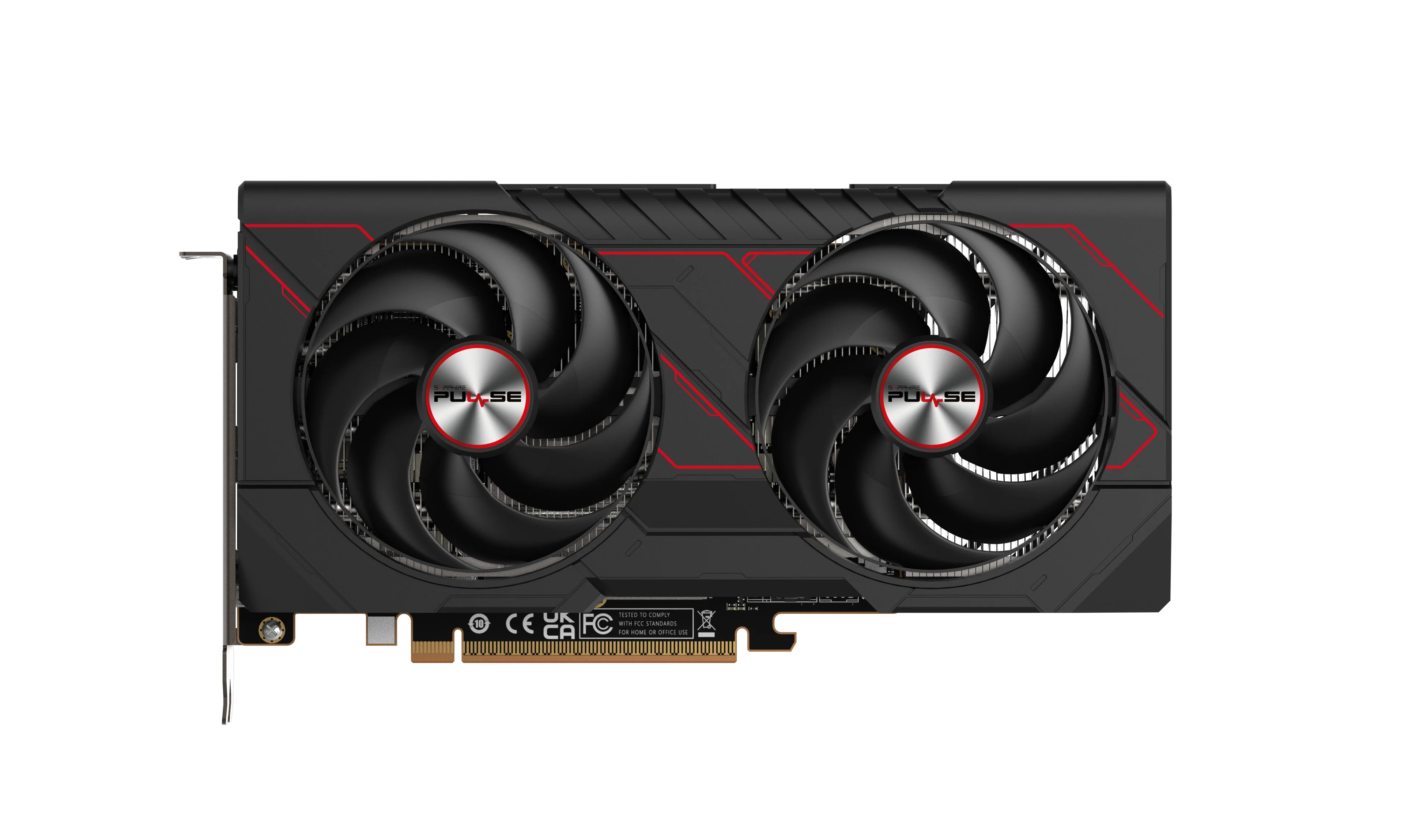

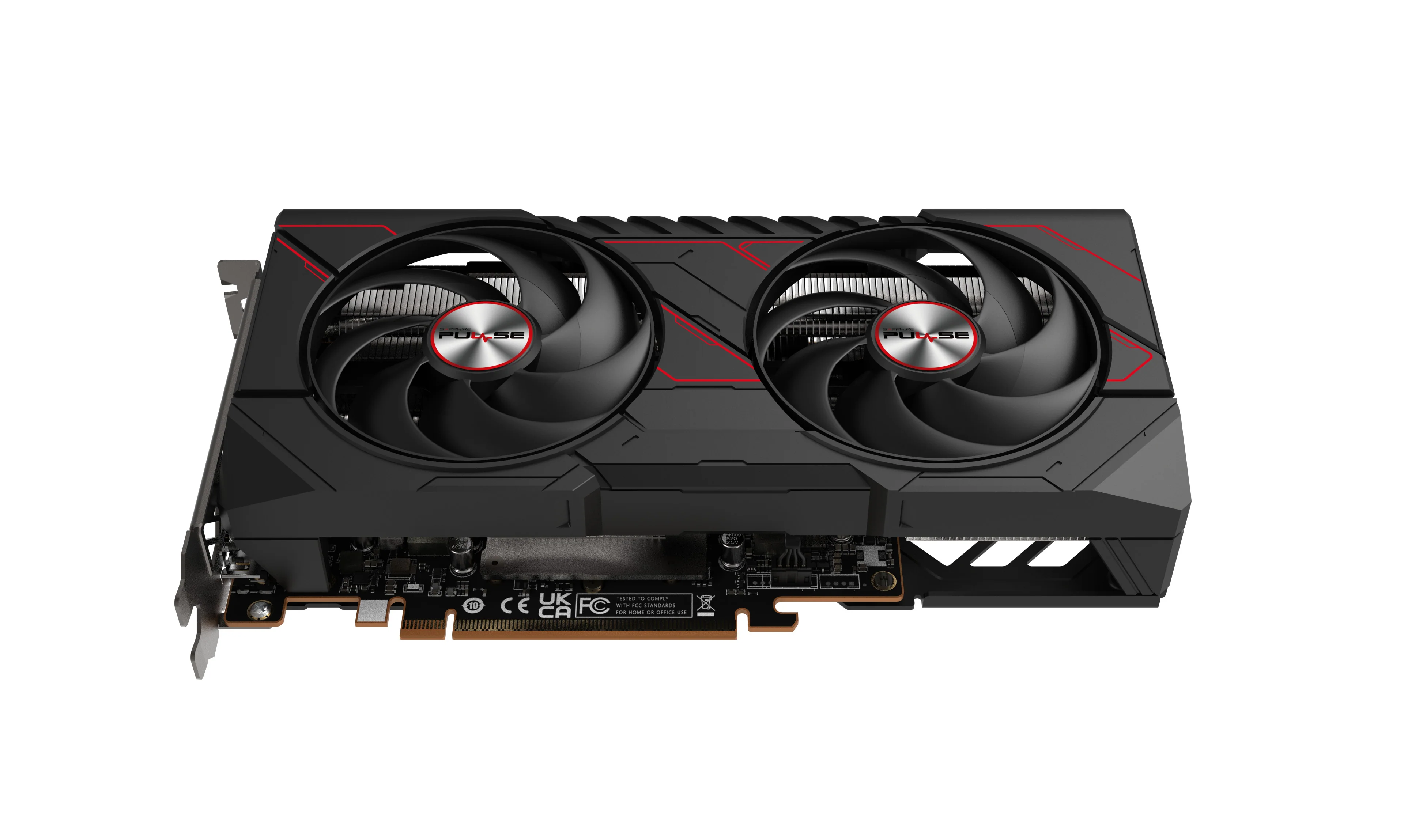

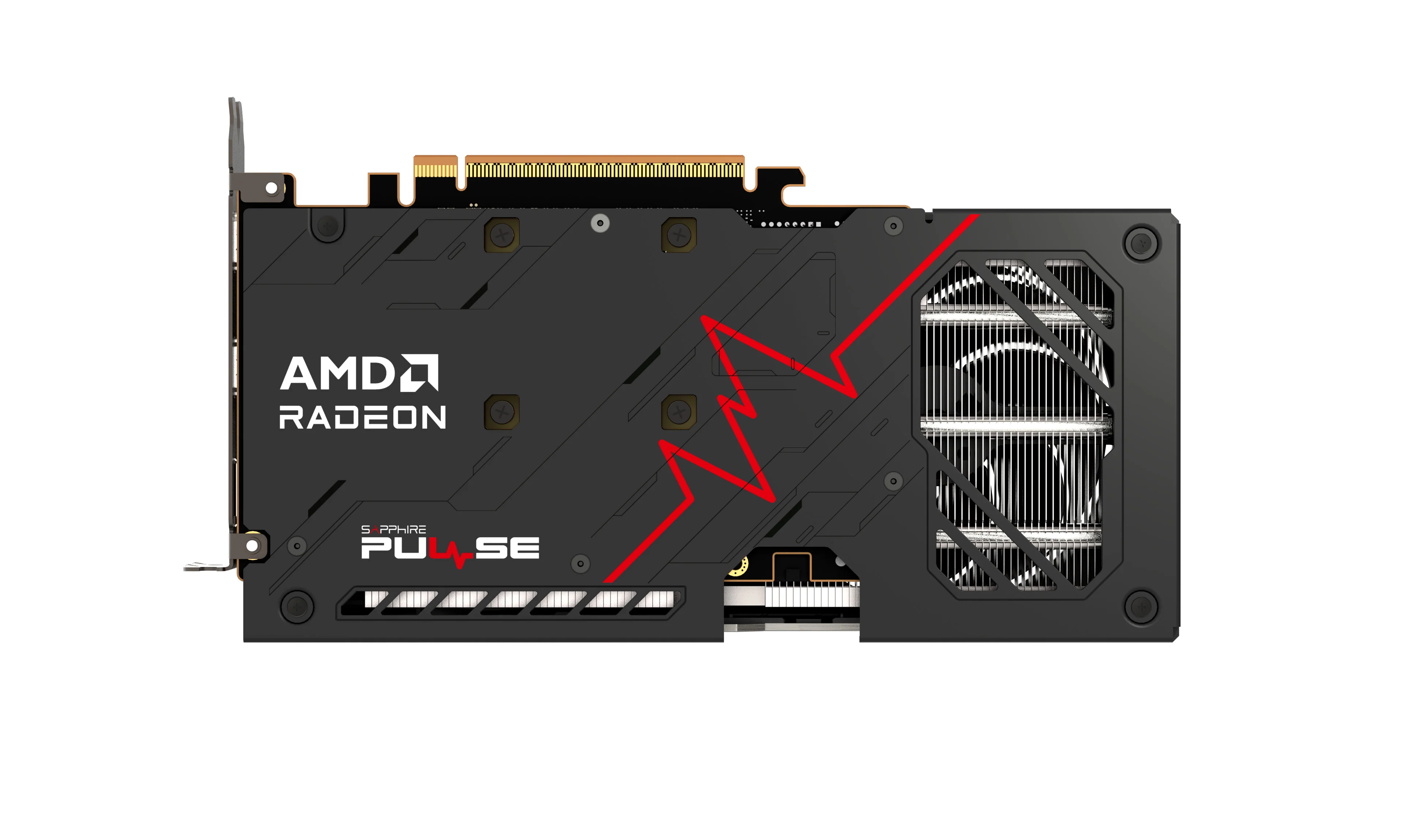

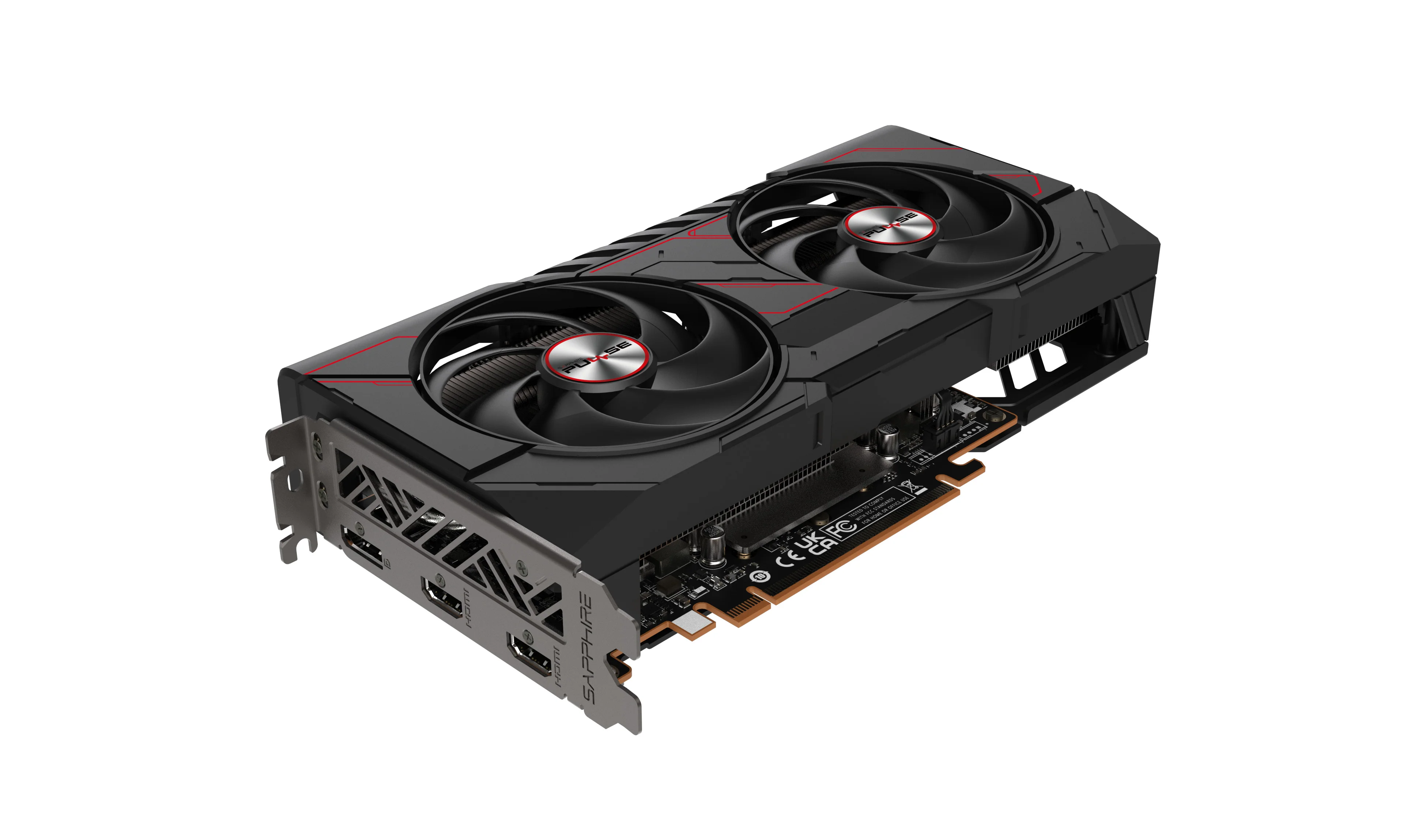

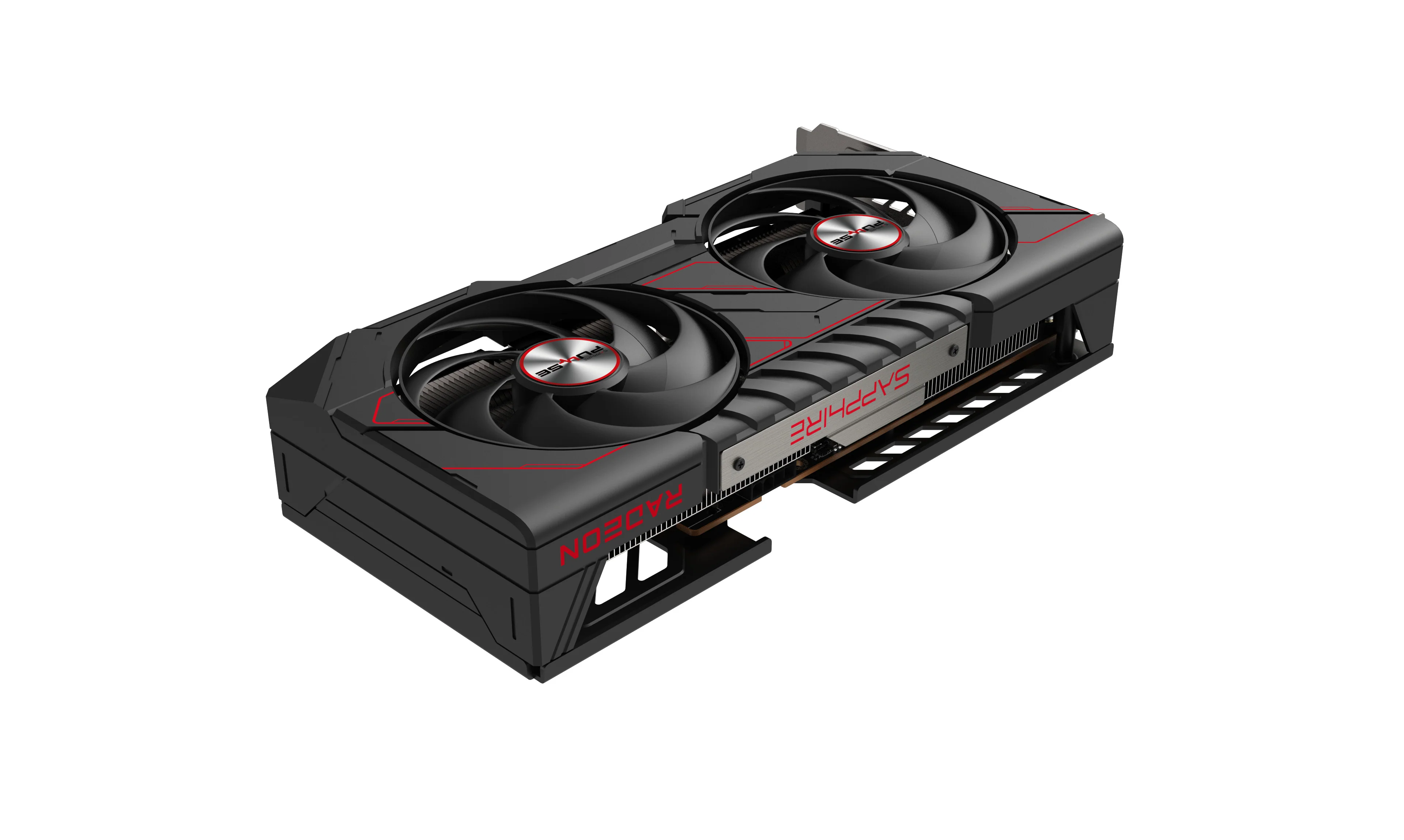

SAPPHIRE PULSE AMD Radeon RX 9060 XT 16GB / 8GB GDDR6 Graphics Card | 11350-03-20G / 11350-04-20G

Product Highlights • Powered by AMD RDNA 4 architecture for high-performance gaming • Available with 16GB or 8GB high-speed GDDR6 memory • Boost clock reaches up to 3290MHz for responsive gaming performance • Dual-X cooling system provides efficient heat dissipation • AeroCurve fan blades improve airflow while reducing operating noise • Honeywell PTM7950 thermal material improves heat transfer • Metal backplate provides added strength and component protection • Supports AMD FidelityFX Super Resolution 4 with AI upscaling • Compact 2.3-slot design fits a wide range of gaming PC builds Key Specifications Product Type: Gaming Graphics Card Available Models: SAPPHIRE PULSE RX 9060 XT OC 16GB and 8GB Graphics Engine: AMD Radeon RX 9060 XT Architecture: AMD RDNA 4 Stream Processors: 2048 Compute Units: 32 Ray Accelerators: 32 AI Accelerators: 64 Infinity Cache: 32MB Game Clock: Up to 2700MHz Boost Clock: Up to 3290MHz 16GB: Model Code: 11350-03-20G Video Memory: 16GB GDDR6 Recommended Gaming Resolution: 1440p 8GB: Model Code: 11350-04-20G Video Memory: 8GB GDDR6 Recommended Gaming Resolution: 1080p Ultra Memory Speed: 20Gbps Memory Interface: 128-Bit Bus Standard: PCI Express 5.0 x16 Cooling System: Dual-X Dual-Fan Cooling Thermal Interface Material: Honeywell PTM7950 Fan Bearing: Sleeve Bearing Metal Backplate: Yes Fan Control: Intelligent Fan Control and Precision Fan Control Maximum Displays: 3 Display Outputs: 2 x HDMI and 1 x DisplayPort 2.1a Maximum Resolution: 7680 x 4320 DirectX Support: DirectX 12 Ultimate BIOS Support: UEFI Typical Board Power: 170W Power Connector: 1 x 8-Pin PCIe Recommended Power Supply: 450W Slot Size: 2.3 Slots Supported Operating Systems: Windows 10, Windows 11 and Linux Size & Weight Dimensions: 111.25 x 46.08 mm Weight: 910 g What’s in the Box • SAPPHIRE PULSE AMD Radeon RX 9060 XT Graphics Card • Quick Installation Guide Warranty: 3 Year Warranty
