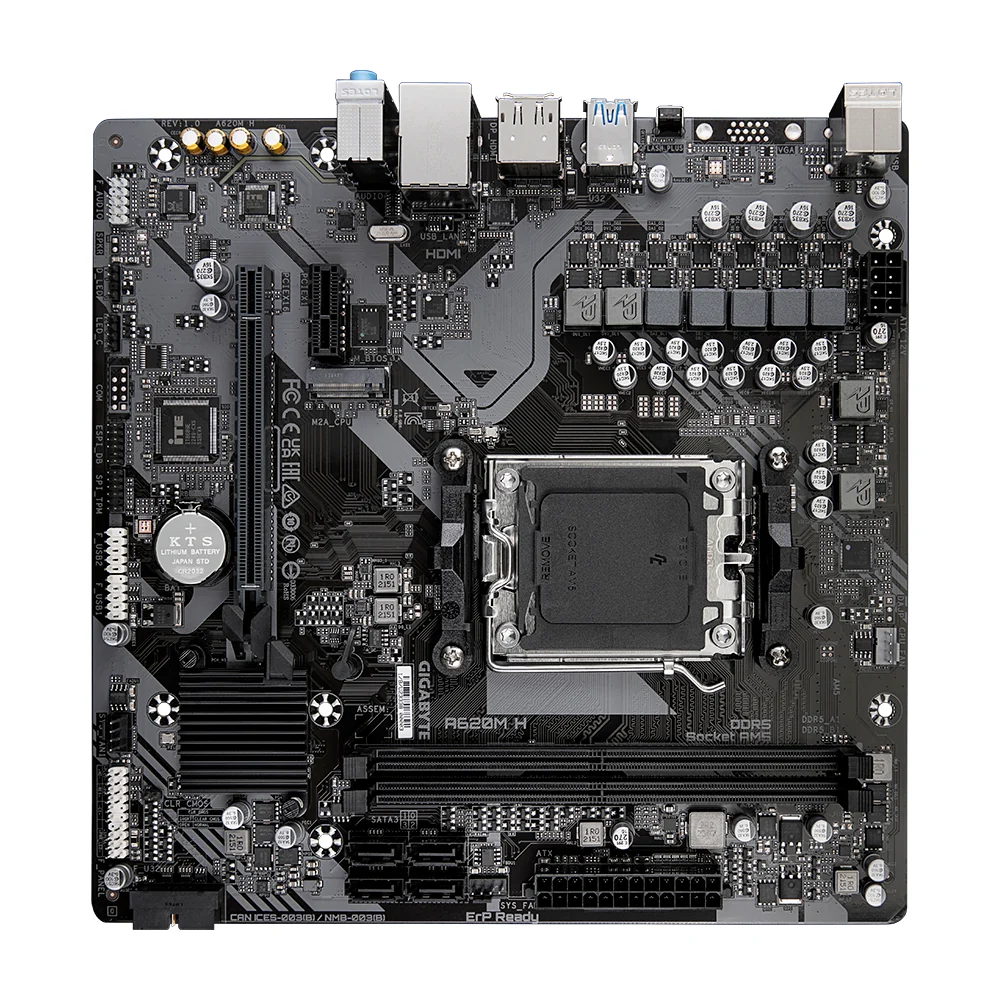

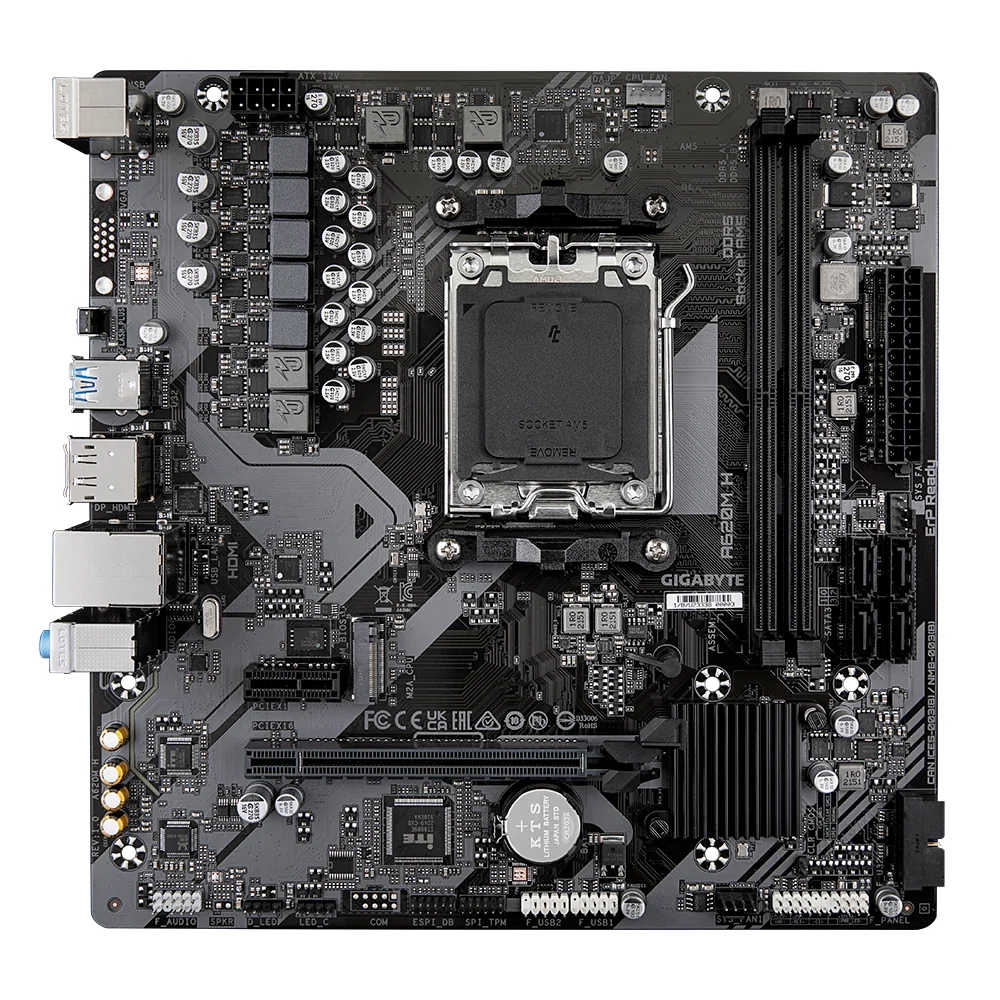

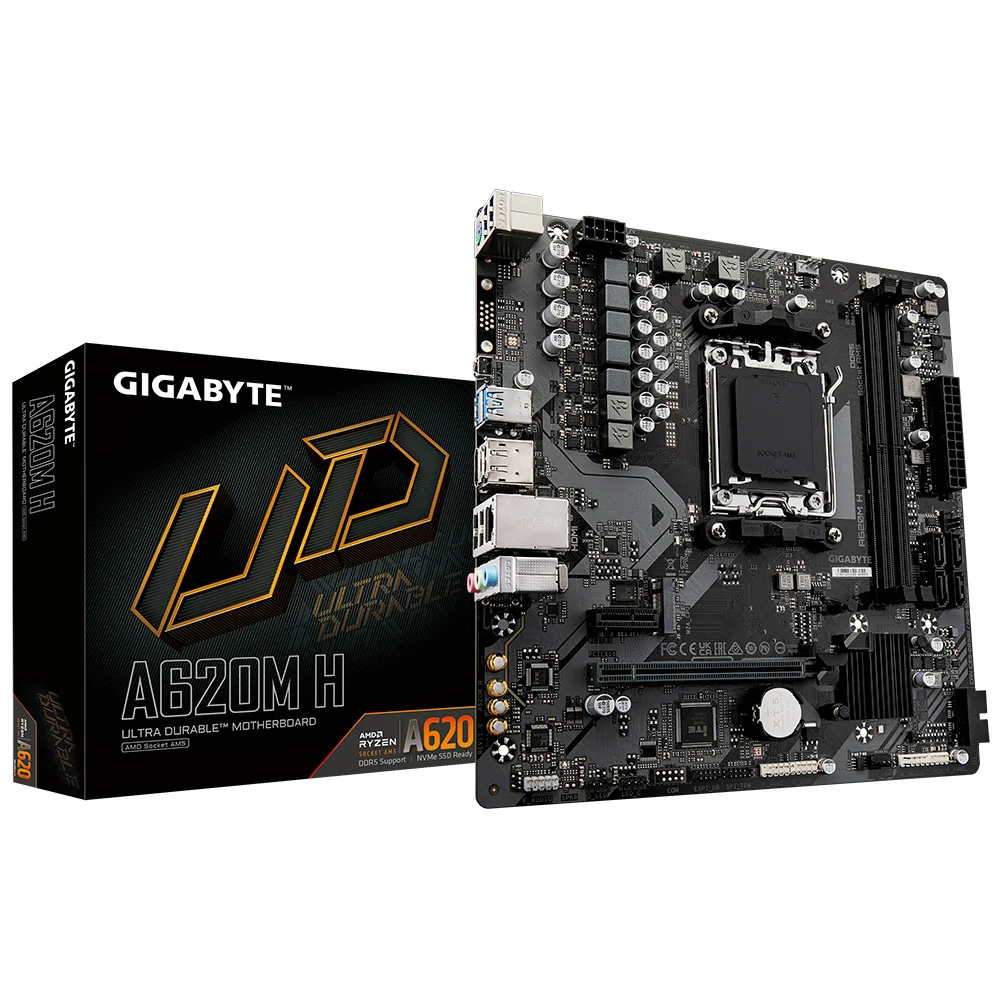

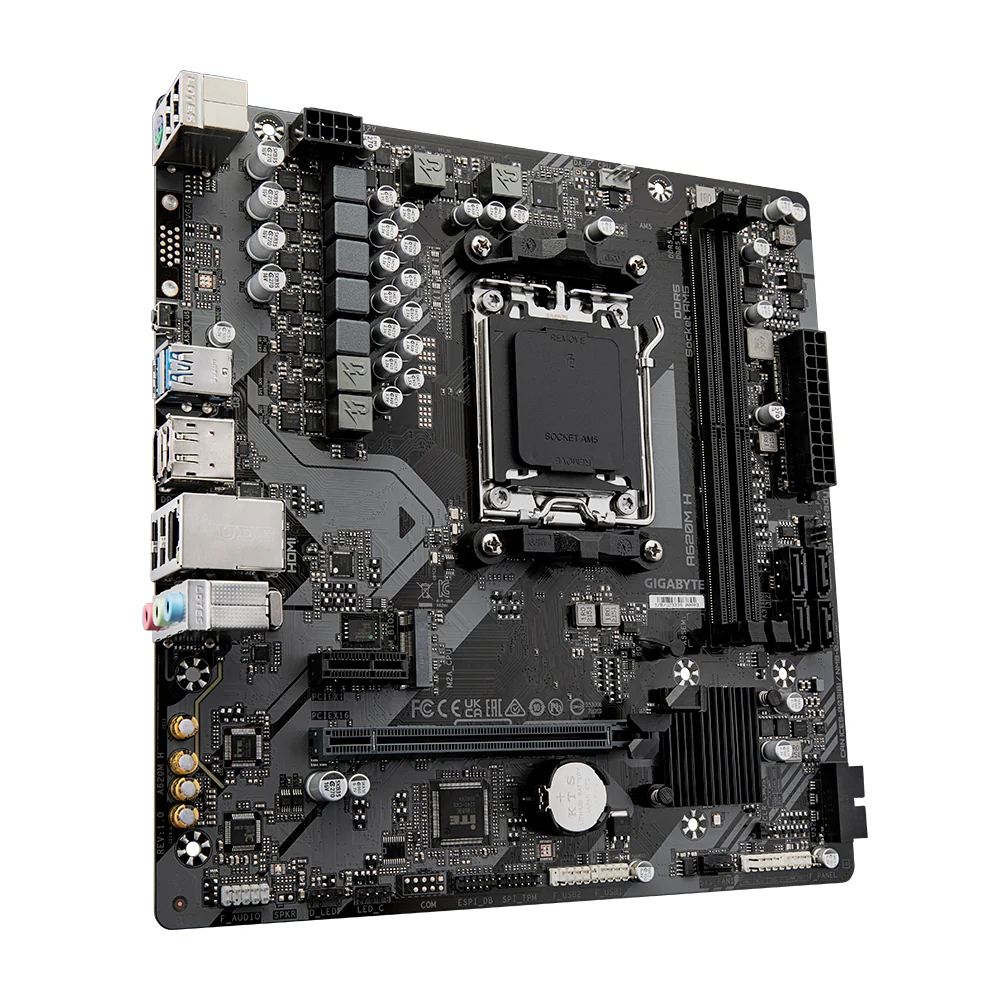

Gigabyte A620M H Micro ATX (mATX) AMD Gaming Motherboard | AMD AM5 Socket

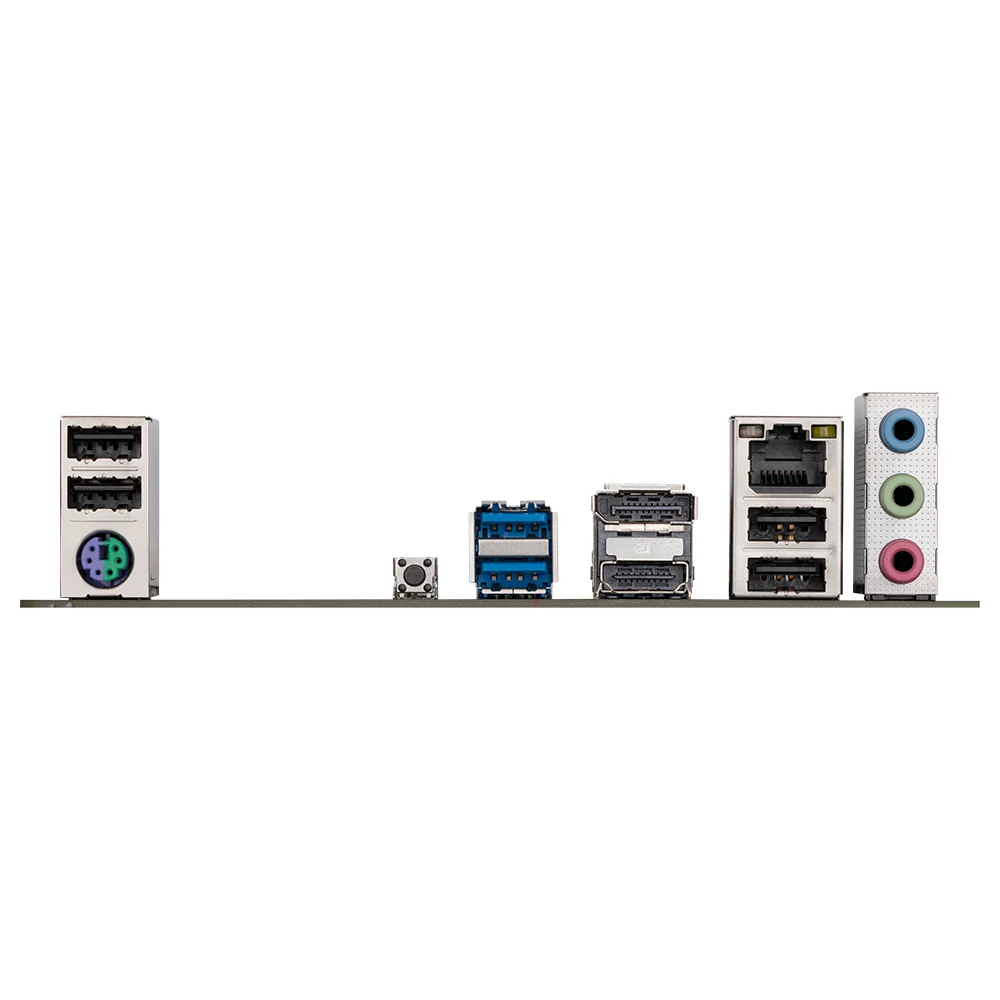

Product Highlights • Supports AMD Ryzen™ 9000, 8000 and 7000 Series processors • AMD A620 chipset with AM5 socket for modern Ryzen builds • 2 x DDR5 DIMM slots supporting up to 128GB memory • Supports DDR5 memory speed up to 6400MT/s (O.C.) • DisplayPort and HDMI display output for flexible connectivity • 1 x PCIe 4.0 M.2 slot and 4 x SATA 6Gb/s ports for storage expansion • Micro ATX form factor suitable for compact PC builds Key Specifications Model: A620M H Product Type: AMD Gaming Motherboard Form Factor: Micro ATX / mATX Chipset: AMD A620 Socket: AMD Socket AM5 CPU Support: • AMD Ryzen™ 9000 Series Processors • AMD Ryzen™ 8000 Series Processors • AMD Ryzen™ 7000 Series Processors Memory: 2 x DDR5 DIMM Maximum Memory: Up to 128GB Memory Speed: DDR5 6400 / 6200 / 6000 / 5600 / 5200 / 4800 / 4400 MT/s Memory Support: Dual Channel, AMD EXPO™, Intel® XMP, Non-ECC Un-buffered DDR5 Graphics Output: • 1 x DisplayPort 1.4, supports up to 3840 x 2160 @ 144Hz • 1 x HDMI 2.1 port, supports up to 4096 x 2160 @ 60Hz Expansion Slots: • 1 x PCIe 4.0 x16 slot • 1 x PCIe 3.0 x1 slot Storage: • 1 x M.2 connector, Socket 3, M Key, Type 2580 • Supports PCIe 4.0 x4 / x2 SSD • 4 x SATA 6Gb/s connectors • Supports RAID 0, RAID 1 and RAID 10 LAN: Realtek® GbE LAN Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio Back Panel Connectors: • 4 x USB 2.0 / 1.1 ports • 1 x PS/2 keyboard / mouse port • 1 x Q-Flash Plus button • 2 x USB 3.2 Gen 1 ports • 1 x DisplayPort • 1 x HDMI port • 1 x RJ-45 port • 3 x Audio jacks Internal I/O Connectors: • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x CPU fan header • 2 x System fan headers • 1 x Addressable LED strip header • 1 x RGB LED strip header • 1 x M.2 Socket 3 connector • 4 x SATA 6Gb/s connectors • 1 x Front panel header • 1 x Front panel audio header • 1 x USB 3.2 Gen 1 header • 2 x USB 2.0 / 1.1 headers • 1 x Trusted Platform Module header • 1 x Clear CMOS jumper Special Features: • 5+2+2 Phases Digital VRM Solution • PCIe 4.0 Design • PCIe EZ-Latch • Q-Flash Plus • Q-Flash • Smart Fan 6 • GIGABYTE Control Center • RGB Fusion Support Operating System: Windows® 11 64-bit, Windows® 10 64-bit Dimensions & Weight Dimensions: 23.0 x 22.5 x 2.0 cm Weight: 1.00 kg Warranty: 3 Years Warranty
