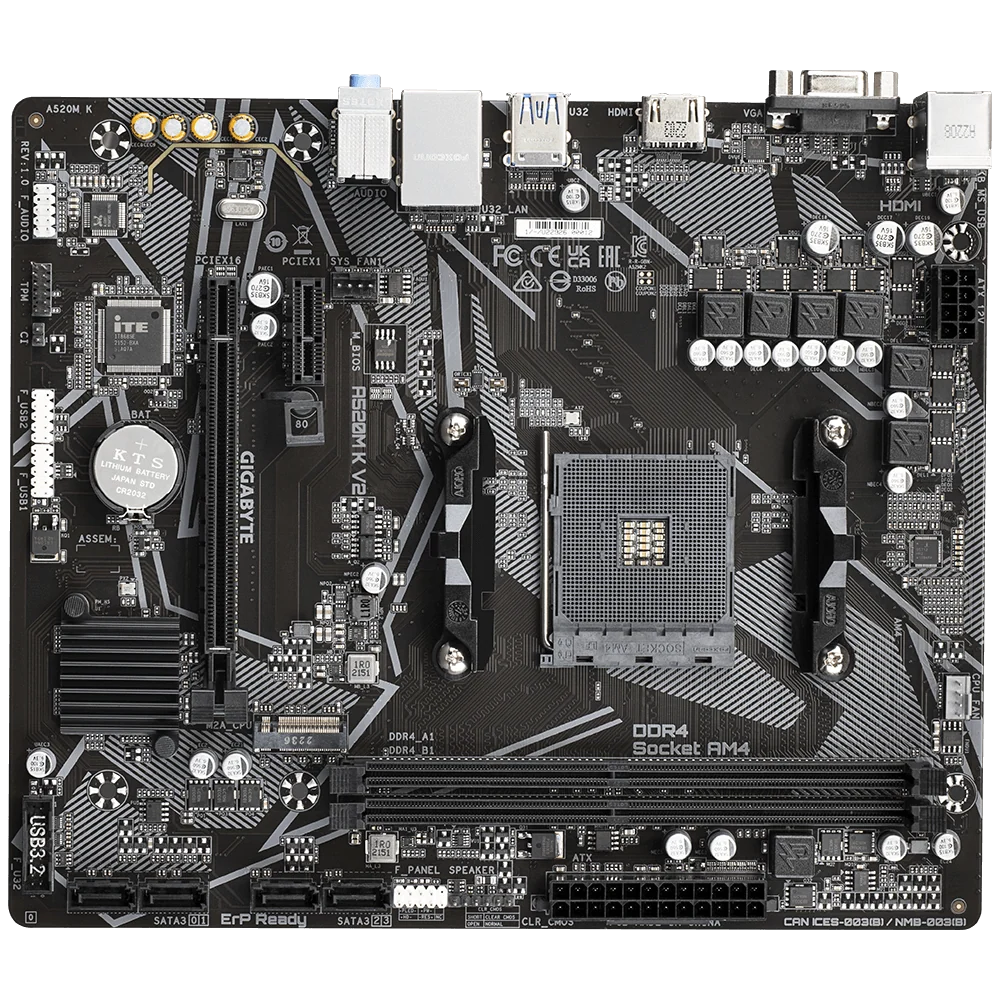

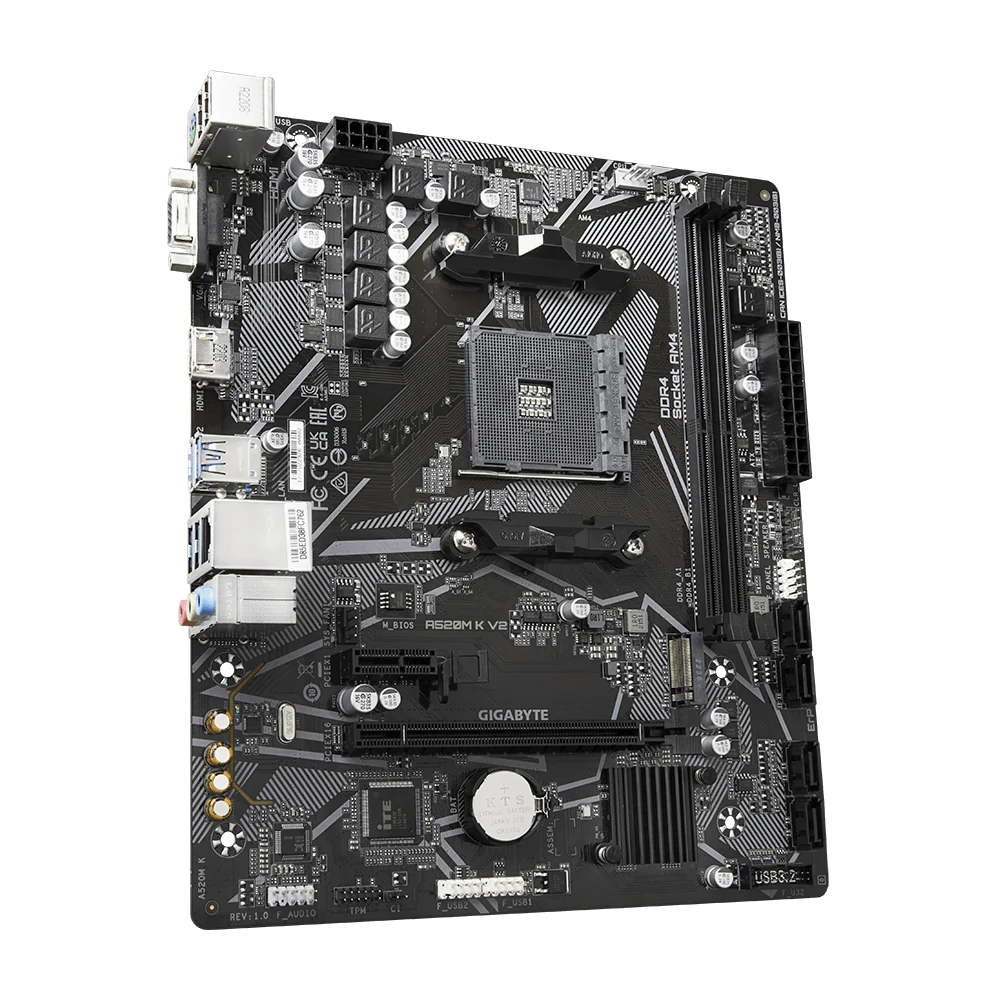

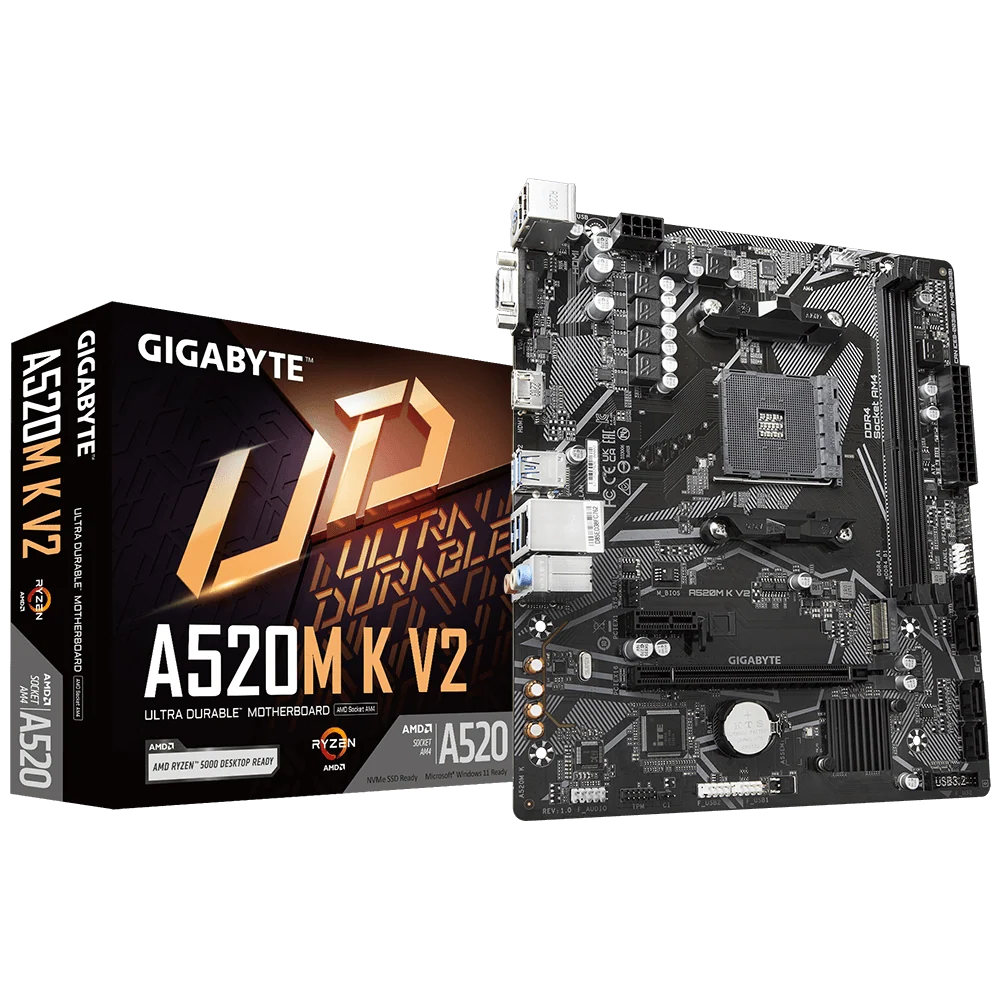

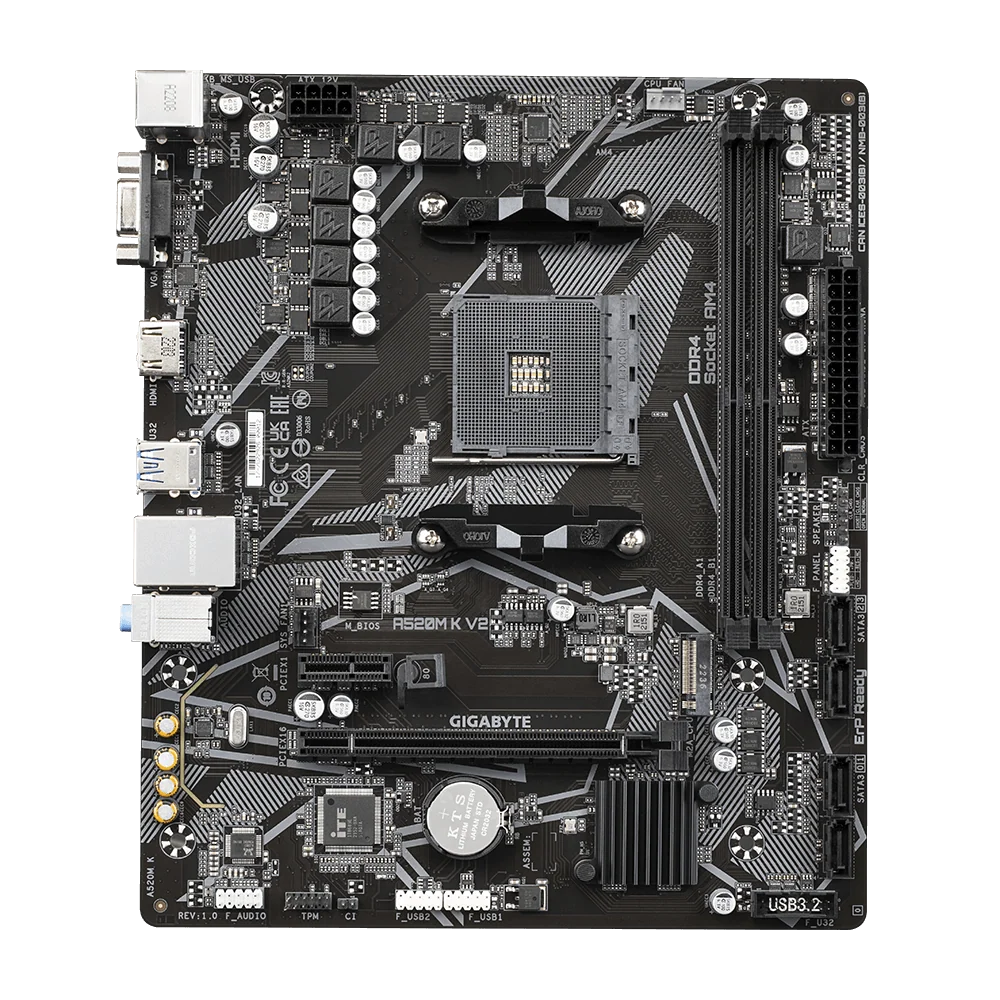

GIGABYTE A520M K V2 Rev1.1 Micro ATX (mATX) AMD Motherboard | AMD AM4 Socket

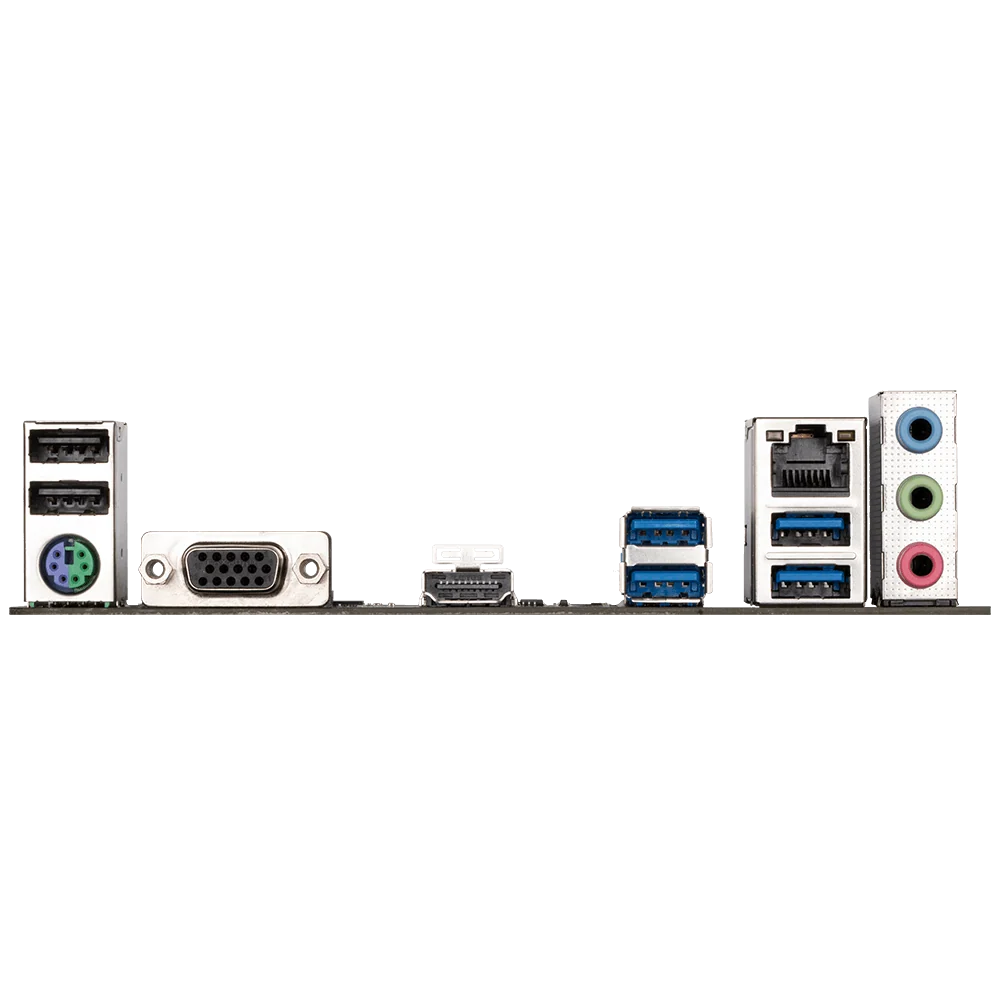

Product Highlights • Supports AMD Ryzen™ 5000 / 5000 G-Series / 4000 G-Series / 3000 Series processors • AMD A520 chipset with AM4 socket for reliable Ryzen desktop builds • 2 × DDR4 DIMM slots support up to 64GB memory capacity • Supports DDR4 memory up to 5100MHz OC • M.2 slot and 4 × SATA 6Gb/s ports for flexible storage expansion • HDMI 2.1 and D-Sub output for display connectivity Key Specifications Product Type: AMD Motherboard Model: GIGABYTE A520M K V2 Rev 1.1 Chipset: AMD A520 CPU Socket: AMD AM4 CPU Support: • AMD Ryzen™ 5000 G-Series Processors • AMD Ryzen™ 5000 Series Processors • AMD Ryzen™ 4000 G-Series Processors • AMD Ryzen™ 3000 Series Processors • AMD Ryzen™ 3000 G-Series Processors Memory: • 2 × DDR4 DIMM Slots • Maximum Memory Capacity: 64GB • Memory Support Up To DDR4 5100MHz OC Video Output: • 1 × D-Sub • 1 × HDMI 2.1 Audio: Realtek® Audio CODEC LAN: Realtek® GbE LAN Chip Expansion Slots: • 1 × PCIe x16 Slot, PCIe 3.0 • 1 × PCIe x1 Slot, PCIe 3.0 Storage: • 1 × M.2 Connector • 4 × SATA 6Gb/s Connectors USB: • 4 × USB 3.2 Gen 1 Rear Ports • 2 × USB 3.2 Gen 1 via Internal Header • 2 × USB 2.0 Rear Ports • 4 × USB 2.0 via Internal Headers Rear I/O: • 1 × PS/2 Keyboard / Mouse Port • 1 × D-Sub Port • 1 × HDMI Port • 4 × USB 3.2 Gen 1 Ports • 2 × USB 2.0 Ports • 1 × RJ-45 Port • 3 × Audio Jacks Dimensions & Weight: • Dimensions: 23.3 cm x 19.8 cm x 3.5 cm • Weight: 0.70 kg – 1.00 kg Warranty: 3 Years Warranty
