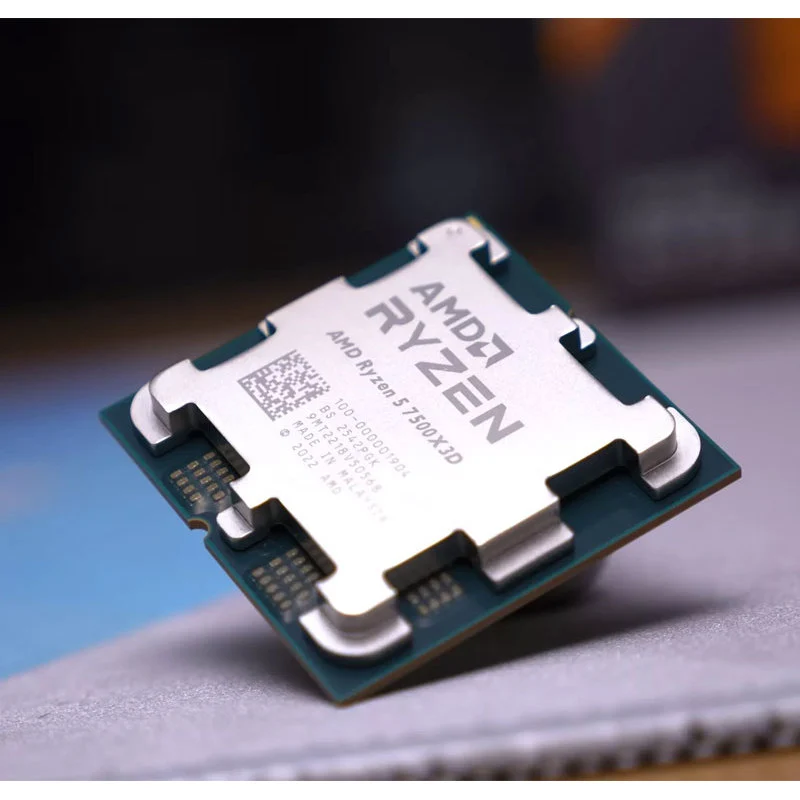

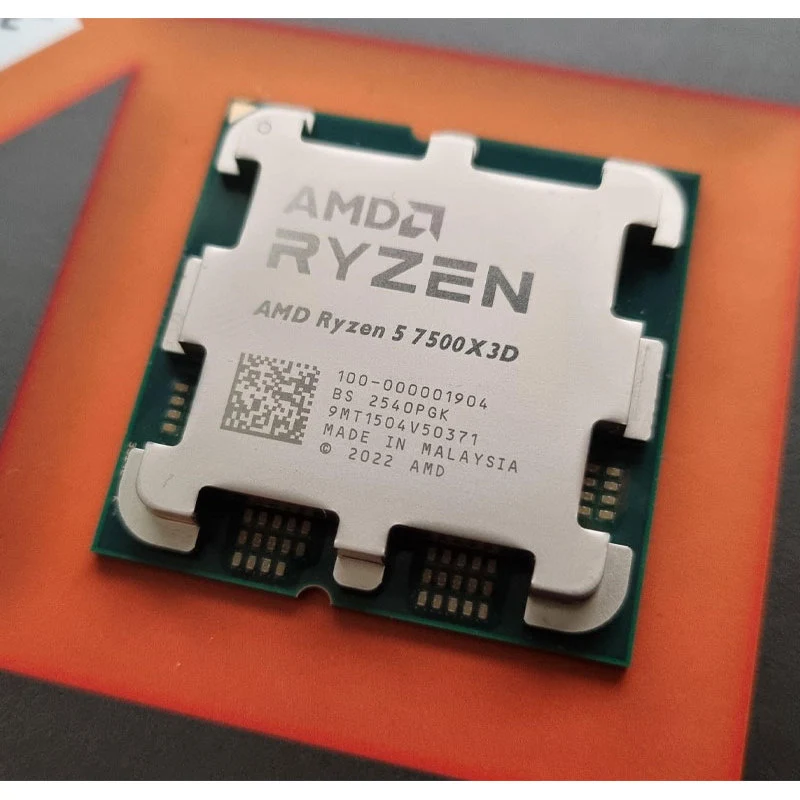

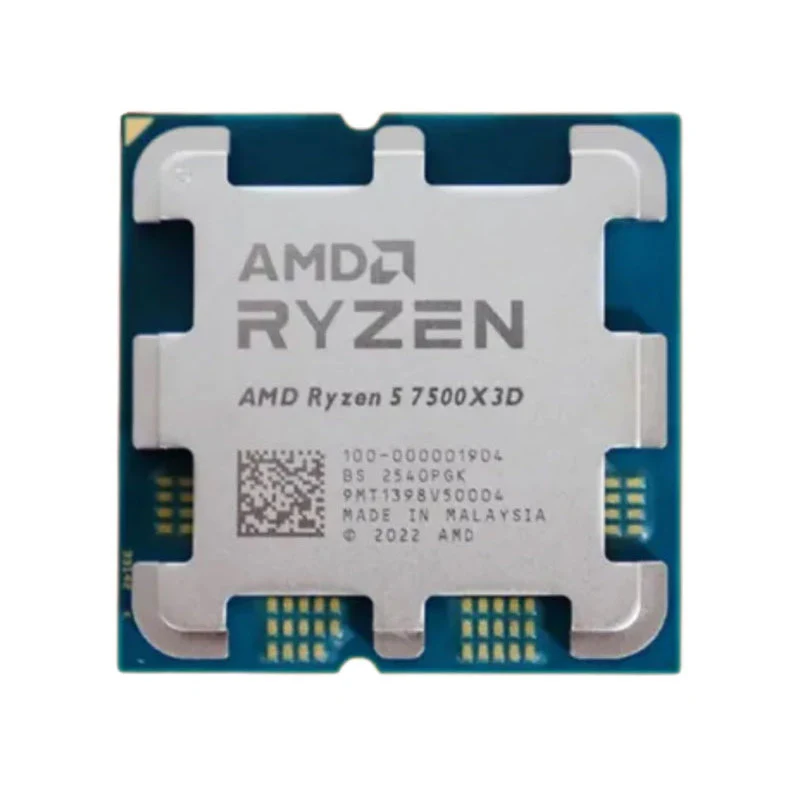

AMD Ryzen 5 7500X3D Tray Unit AM5 Gaming Processor (6-Cores/12-Threads, Up to 4.5Ghz) | AMD Ryzen™ 5 7000 SERIES

Product Highlights • AMD Ryzen™ 5 desktop processor with AMD 3D V-Cache™ technology • 6 cores and 12 threads for smooth gaming and multitasking performance • Boost clock up to 4.5GHz for responsive everyday performance • Large 96MB L3 cache helps improve gaming performance and low-latency workloads • Supports DDR5 memory and PCIe® 5.0 for next-generation AM5 platforms • Integrated AMD Radeon™ Graphics included for basic display output Key Specifications Product Type: Desktop Processor Processor Line: AMD Ryzen™ 5 Desktop Processors Series: Ryzen 7000 Series Processor Name: AMD Ryzen™ 5 7500X3D Form Factor: Desktop Boxed Processor Market Segment: Enthusiast Desktop Code Name: Raphael AM5 Processor Architecture: Zen 4 CPU Cores / Threads: 6 Cores / 12 Threads Multithreading (SMT): Yes Max Boost Clock: Up to 4.5GHz Base Clock: 4.0GHz Cache: • L1 Cache: 384KB • L2 Cache: 6MB • L3 Cache: 96MB Default TDP: 65W Processor Technology: • CPU Cores: TSMC 5nm FinFET • I/O Die: TSMC 6nm FinFET CPU Socket: AM5 Supporting Chipsets: • A620 • X670E • X670 • B650E • B650 • X870E • X870 • B840 • B850 System Memory Support: • Type: DDR5 • Max Memory: 128GB • Memory Channels: 2 • Subtype: UDIMM Max Memory Speed: • 2×1R DDR5-5200 • 2×2R DDR5-5200 • 4×1R DDR5-3600 • 4×2R DDR5-3600 ECC Support: Yes (Requires Motherboard Support) PCI Express® Version: PCIe® 5.0 Native PCIe® Lanes: 28 Total / 24 Usable NVMe Support: Boot / RAID0 / RAID1 / RAID10 Native USB Support: • USB 3.2 Gen 2: 4 • USB 2.0: 1 Integrated Graphics: AMD Radeon™ Graphics Graphics Core Count: 2 Graphics Frequency: 2200MHz USB Type-C® DisplayPort™ Alternate Mode: Yes Unlocked for Overclocking: Yes AMD EXPO™ Memory Support: Yes Precision Boost Overdrive: Yes Curve Optimizer Voltage Offsets: Yes AMD Ryzen™ Master Support: Yes CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions: • AES • AMD-V • AVX • AVX2 • AVX512 • FMA3 • MMX-plus • SHA • SSE / SSE2 / SSE3 / SSE4.1 / SSE4.2 / SSE4A • SSSE3 • x86-64 Thermal Solution: Not Included Recommended Cooler: Liquid Cooler Recommended Max Operating Temperature: 89°C Launch Date: 11/12/2025 OS Support: • Windows 11 64-Bit • Windows 10 64-Bit • RHEL x86 64-Bit • Ubuntu x86 64-Bit Dimensions & Weight: • Product Dimensions: 4.00 × 4.00 × 0.40 cm • Weight: 0.07 kg What's in the Box: • 1 × AMD Ryzen™ 5 7500X3D Processor • User Documentation Warranty: 3 Years Warranty
