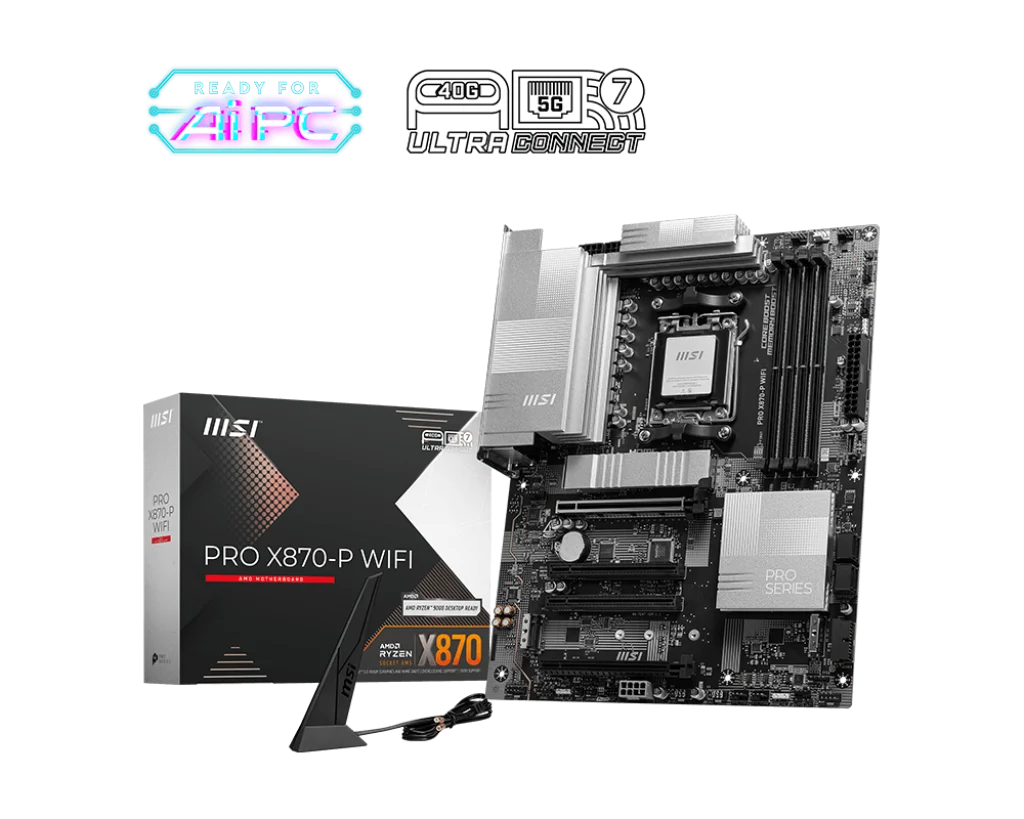

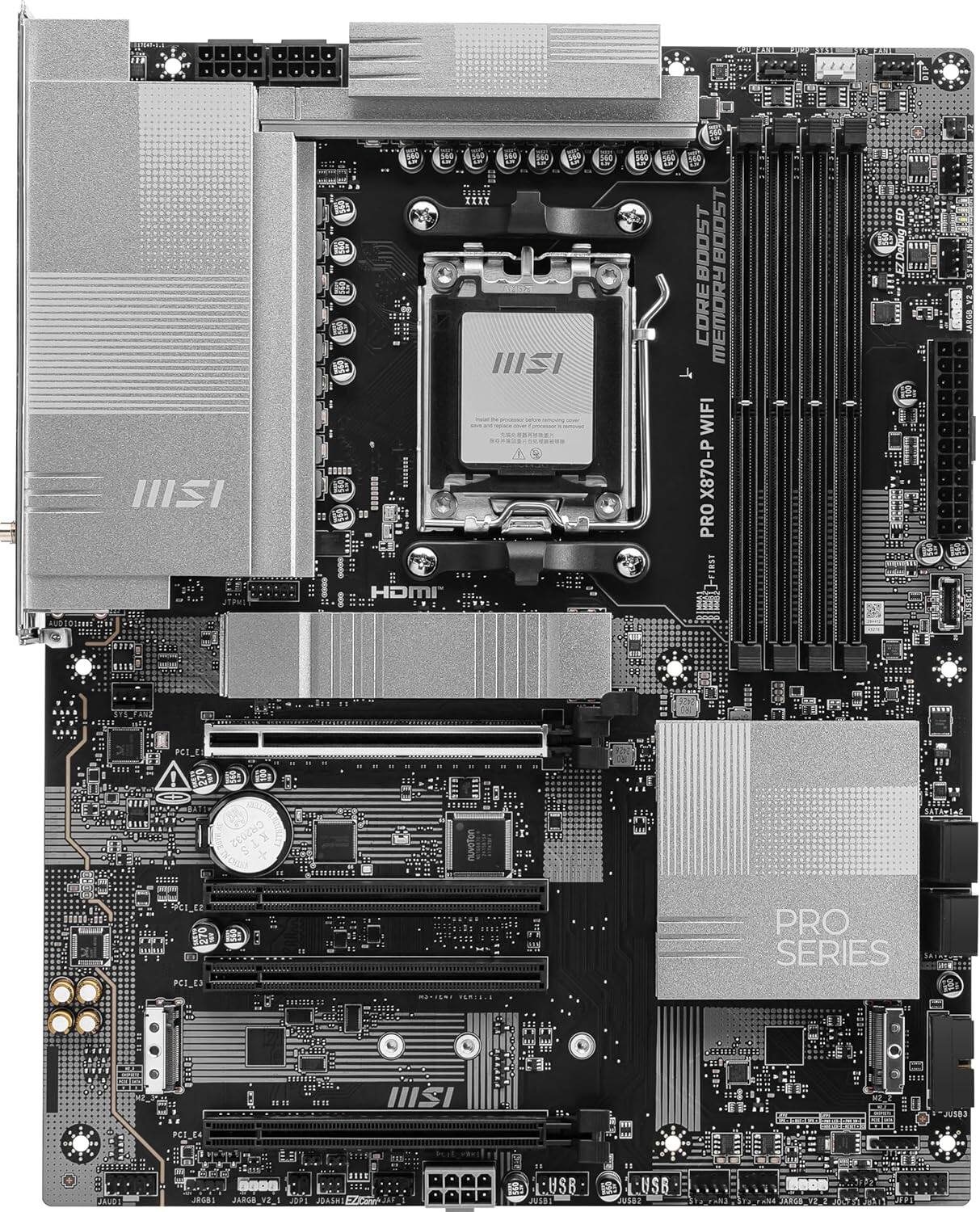

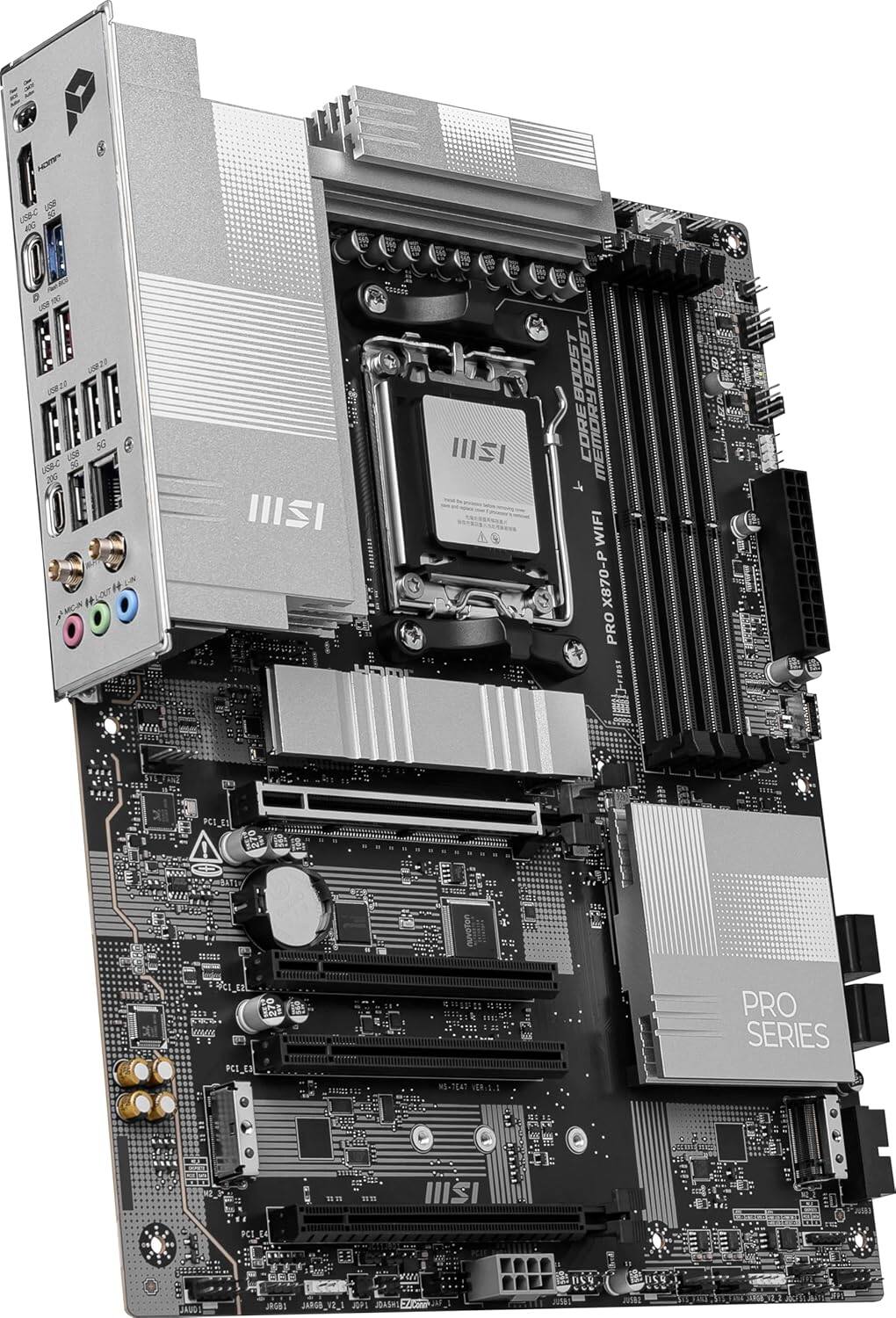

MSI PRO X870-P WIFI (ATX) AMD Gaming Motherboard | AMD AM5 Socket

Product Highlights • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors • AMD X870 chipset with AM5 socket for next-generation performance • 4 × DDR5 memory slots support up to 256GB capacity • Supports DDR5 memory up to 8200MHz OC and AMD EXPO™ • Built-in Wi-Fi 7, Bluetooth 5.4, and Realtek 5G LAN • Triple M.2 support with PCIe 5.0 SSD compatibility Key Specifications Product Type: AMD Motherboard Form Factor: ATX Model: MSI PRO X870-P WIFI CPU Support: • AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors • Socket: AMD AM5 Chipset: AMD X870 Memory: • 4 × DDR5 UDIMM Slots • Max Memory Capacity: 256GB • Memory Speed Support: • DDR5 8200 – 5600 MT/s (OC) • DDR5 5600 – 4800 MT/s (JEDEC) • Supports AMD POR Speed and JEDEC Speed • Supports AMD EXPO™ • Supports Memory Overclocking • Dual-Channel Memory Support • Supports Non-ECC, Un-buffered Memory • Supports CUDIMM (Clock Driver Bypass Mode Only) Video Output: • 1 × HDMI 2.1 • 1 × USB Type-C DisplayPort Expansion Slots: • 4 × PCIe x16 Slots • PCI_E1: PCIe 5.0 x16 (From CPU) • PCI_E2: PCIe 3.0 x1 (From Chipset) • PCI_E3: PCIe 3.0 x1 (From Chipset) • PCI_E4: PCIe 4.0 x4 (From Chipset) Storage: • 3 × M.2 Slots Up To PCIe 5.0 • 4 × SATA 6G Ports Audio: • Realtek ALC897 Audio Codec LAN: • Realtek 8126VB 5G LAN Wireless Connectivity: • Wi-Fi 7 • Bluetooth 5.4 Rear I/O Ports: • 1 × Clear CMOS Button • 1 × Flash BIOS Button • 1 × HDMI • 1 × USB Type-C 40Gbps • 1 × USB Type-C 20Gbps • 2 × USB 3.2 Gen 2 10Gbps Type-A • 2 × USB 3.2 Gen 1 5Gbps Type-A • 4 × USB 2.0 Ports • 3 × Audio Connectors • 2 × Wi-Fi / Bluetooth Antenna Connectors • 1 × LAN Port Dimensions & Weight: • Form Factor: ATX • Product Dimensions: 30.5 cm × 24.4 cm • Net Weight: Approximately 1.2 – 1.5 kg What's in the Box: • 1 × MSI PRO X870-P WIFI Motherboard • Wi-Fi Antenna • SATA Cable • M.2 Screw Kit • User Documentation Warranty: 3 Years Warranty
