MSI PRO H610M-G WIFI DDR5 Micro ATX (mATX) Intel Motherboard | Intel LGA1700 Socket

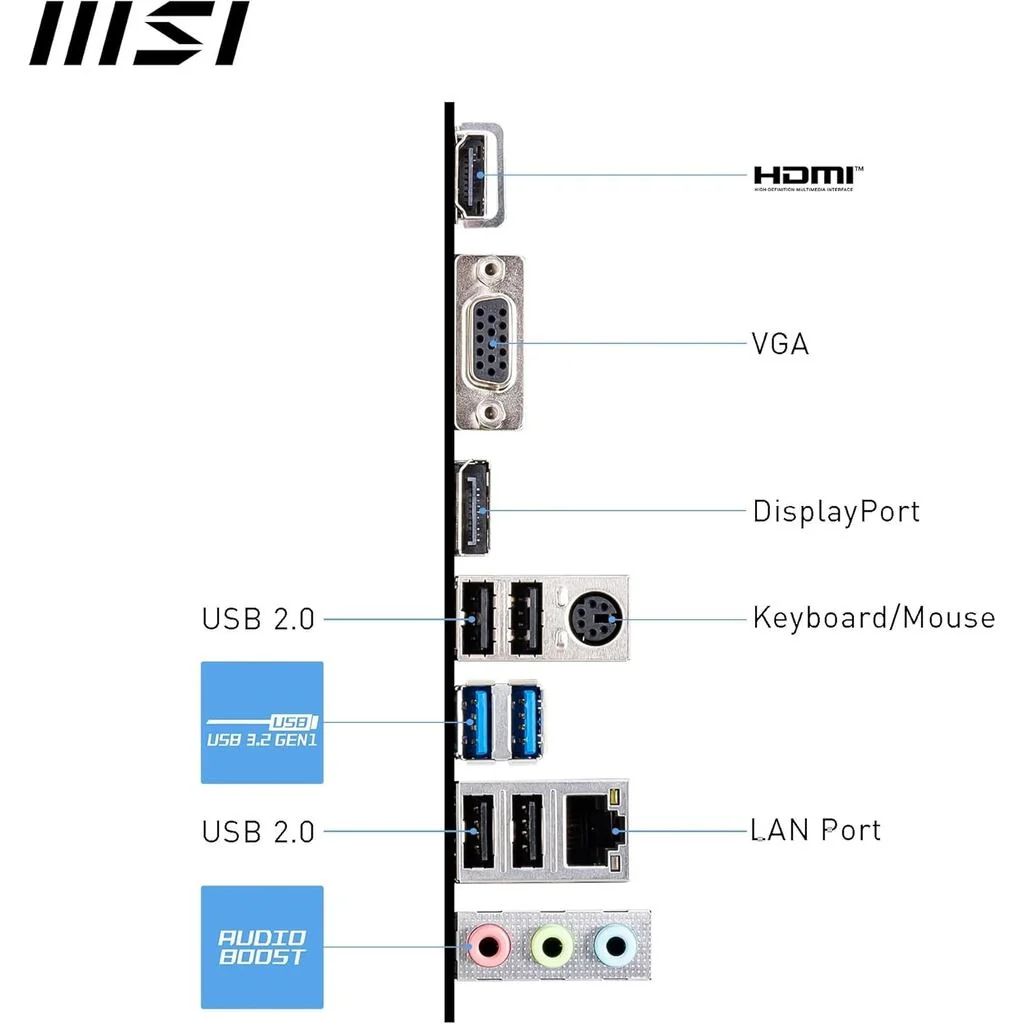

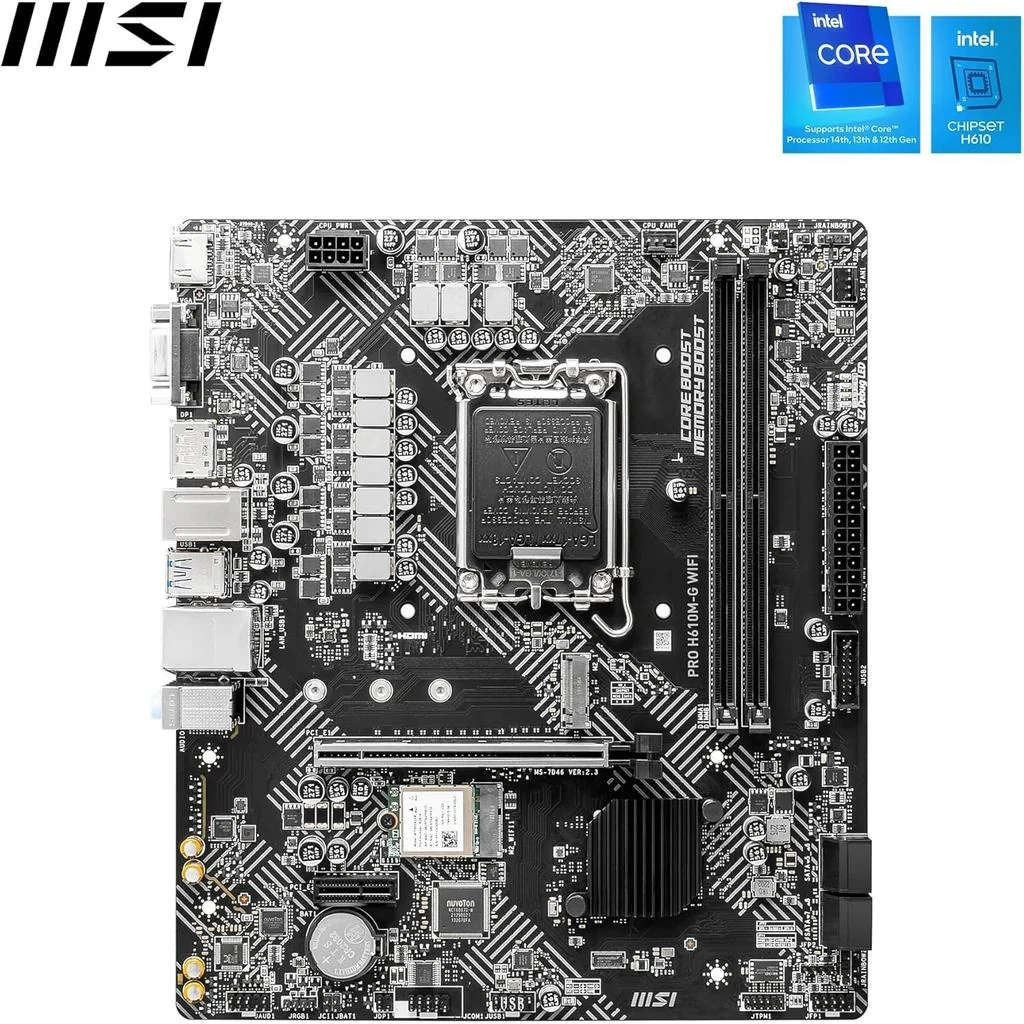

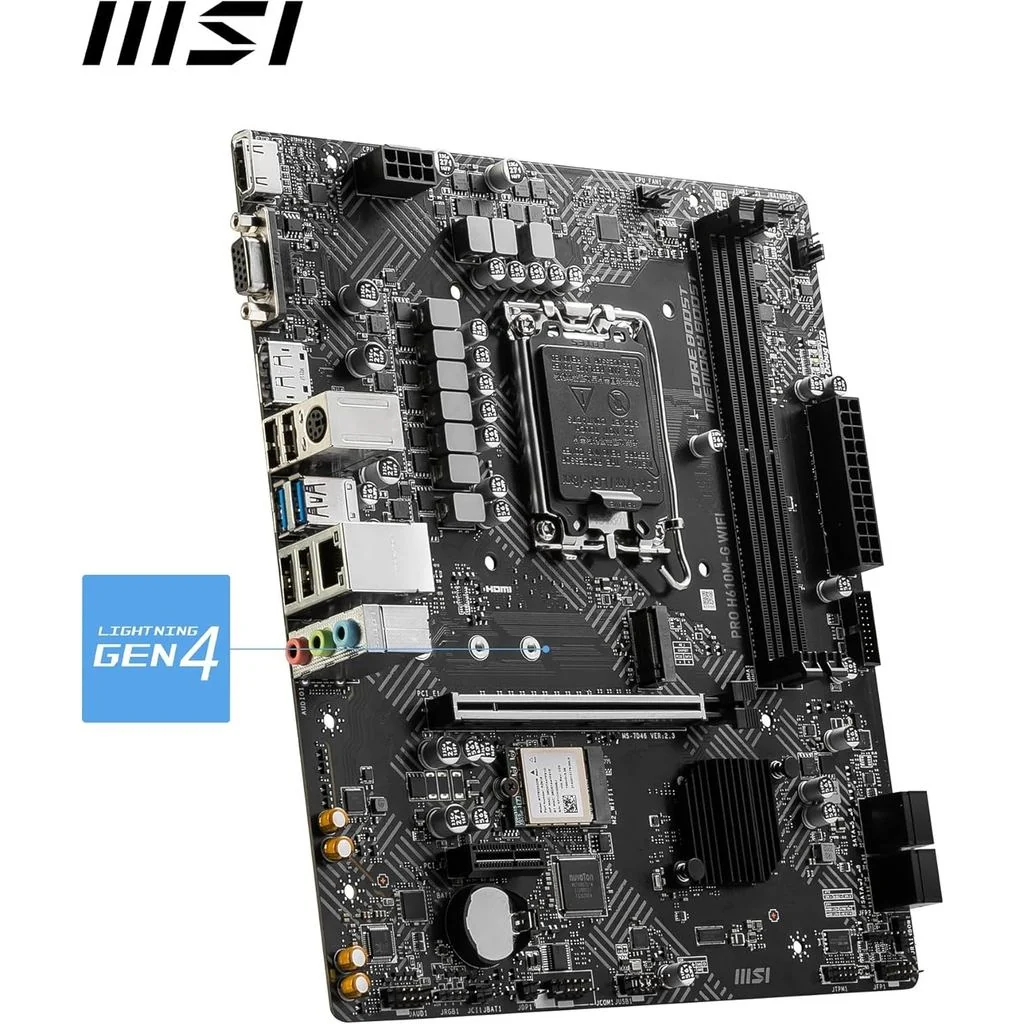

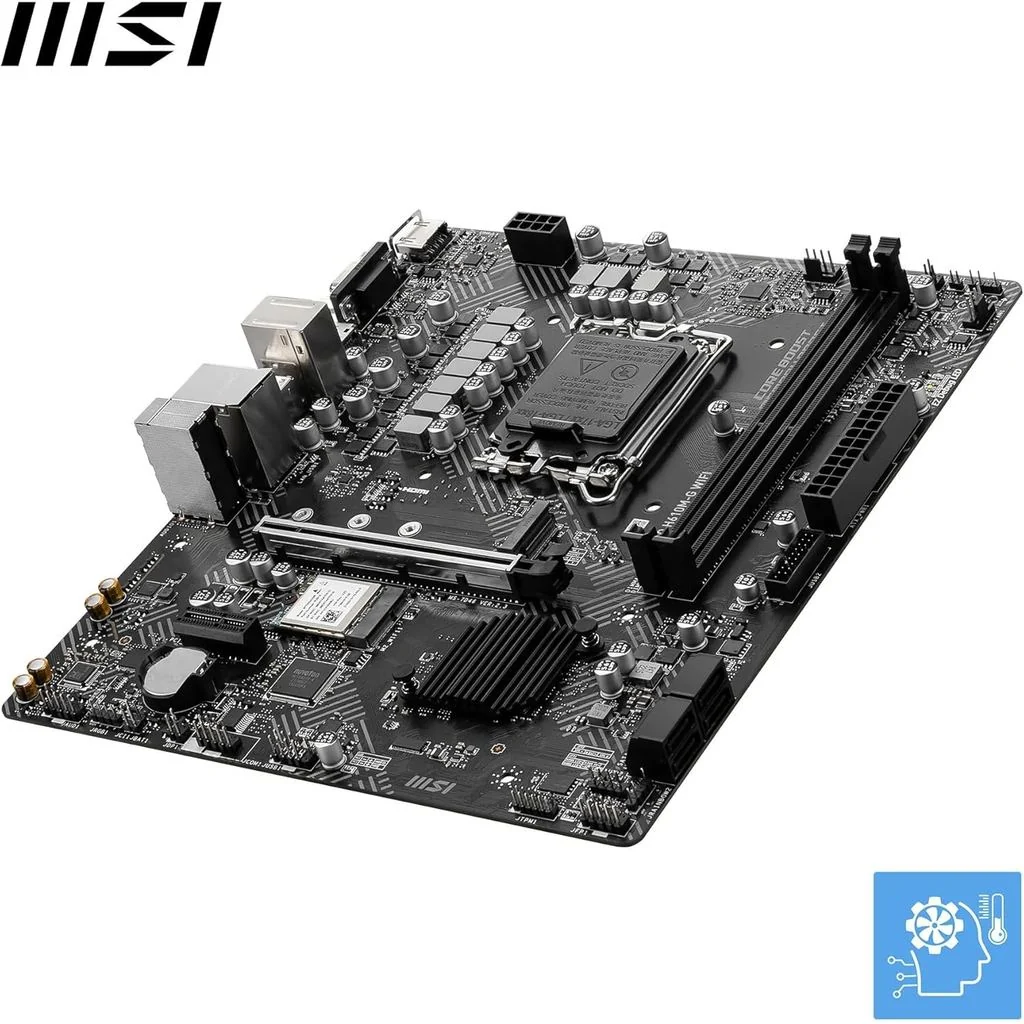

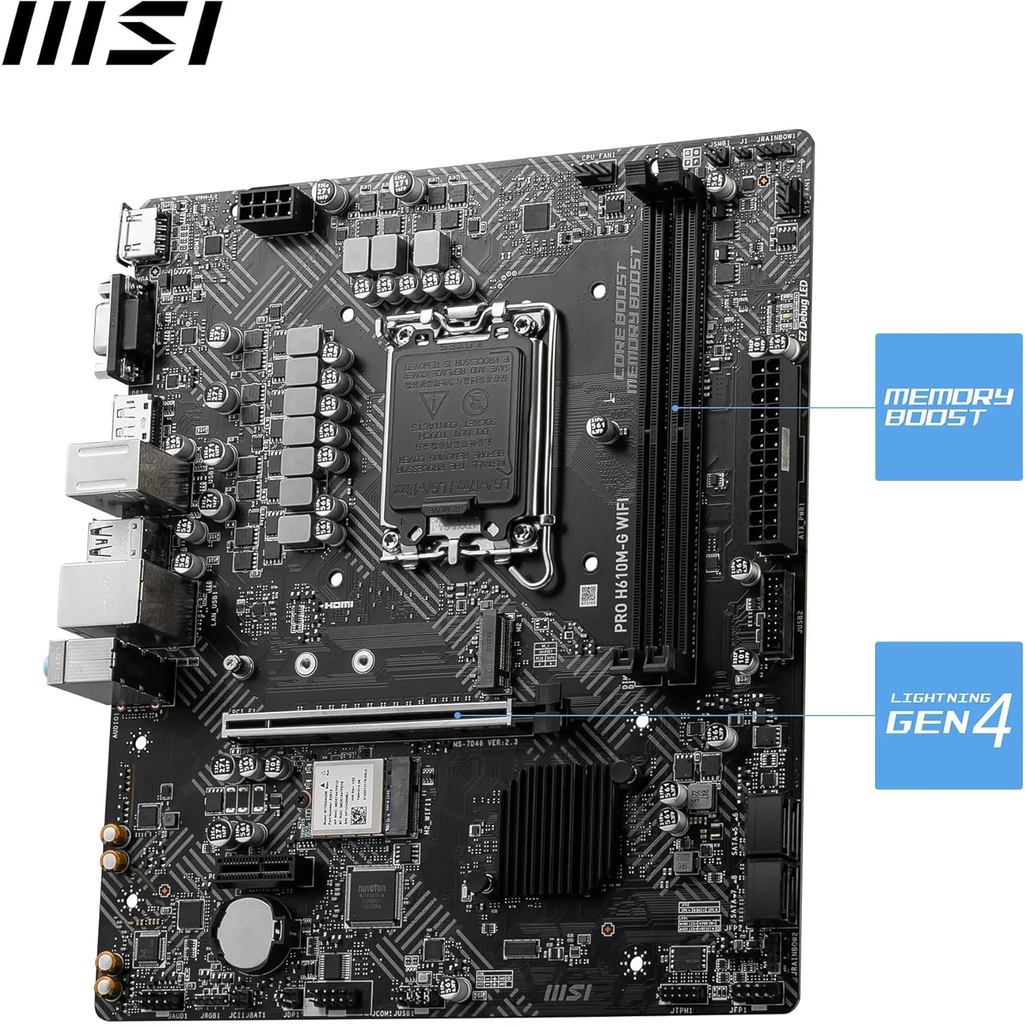

Product Highlights • Supports Intel® 14th / 13th / 12th Gen Core™ Processors with LGA1700 socket • Dual-channel DDR5 memory support up to 5600MHz (OC) • Built-in Wi-Fi 6E and Bluetooth® 5.3 connectivity • PCIe 4.0 x16 slot for high-performance graphics cards • HDMI™, DisplayPort, and VGA outputs for versatile display support • EZ Debug LED for quick hardware troubleshooting Key Specifications Product Type: Intel Motherboard Model: MSI PRO H610M-G WIFI DDR5 Chipset: Intel H610 CPU Socket: Intel LGA1700 CPU Support • Supports 14th Gen Intel® Core™ Processors • Supports 13th Gen Intel® Core™ Processors • Supports 12th Gen Intel® Core™ Processors • Supports Next Gen Intel® Core™ Processors Memory • 2 × DDR5 DIMM Slots • Dual-Channel DDR5 Memory • Memory Speed Support: Up to 5600MHz (OC) Audio • Realtek® ALC897 Codec • 7.1-Channel High Definition Audio LAN • Intel® I219V 1Gbps LAN Controller Wireless Connectivity • Wi-Fi 6E • Bluetooth® 5.3 • Supports 2.4GHz / 5GHz / 6GHz Bands • Supports MU-MIMO TX/RX • Supports IEEE 802.11 a/b/g/n/ac/ax Video Output • 1 × DisplayPort 1.4 (Max 4K 60Hz) • 1 × HDMI™ 2.1 (Max 4K 60Hz) • 1 × VGA Expansion Slots • 1 × PCIe 4.0 x16 Slot • 1 × PCIe 3.0 x1 Slot Storage • 1 × M.2 Slot • Supports PCIe 3.0 x4 / SATA Mode • Supports 2280 / 2260 / 2242 Devices • 4 × SATA 6Gb/s Ports USB Connectivity • 4 × USB 2.0 Rear Ports • 2 × USB 2.0 Front Ports • 2 × USB 5Gbps Type-A Rear Ports • 2 × USB 5Gbps Type-A Front Ports Internal Connectors • 1 × ATX Power Connector • 1 × CPU Power Connector • 1 × CPU Fan Header • 1 × System Fan Header • 2 × Front Panel Headers • 1 × Chassis Intrusion Header • 1 × Front Audio Header • 1 × COM Port Header • 2 × Addressable RGB LED Connectors • 1 × RGB LED Connector • 1 × TPM Header LED Feature • 4 × EZ Debug LEDs Operating System Support • Windows® 11 64-bit • Windows® 10 64-bit Dimensions & Weight • Dimensions : 24.3 cm x 21.1 cm x 3.5 cm • Weight: 0.85 kg – 1.0 kg Warranty: 3 Years Warranty
