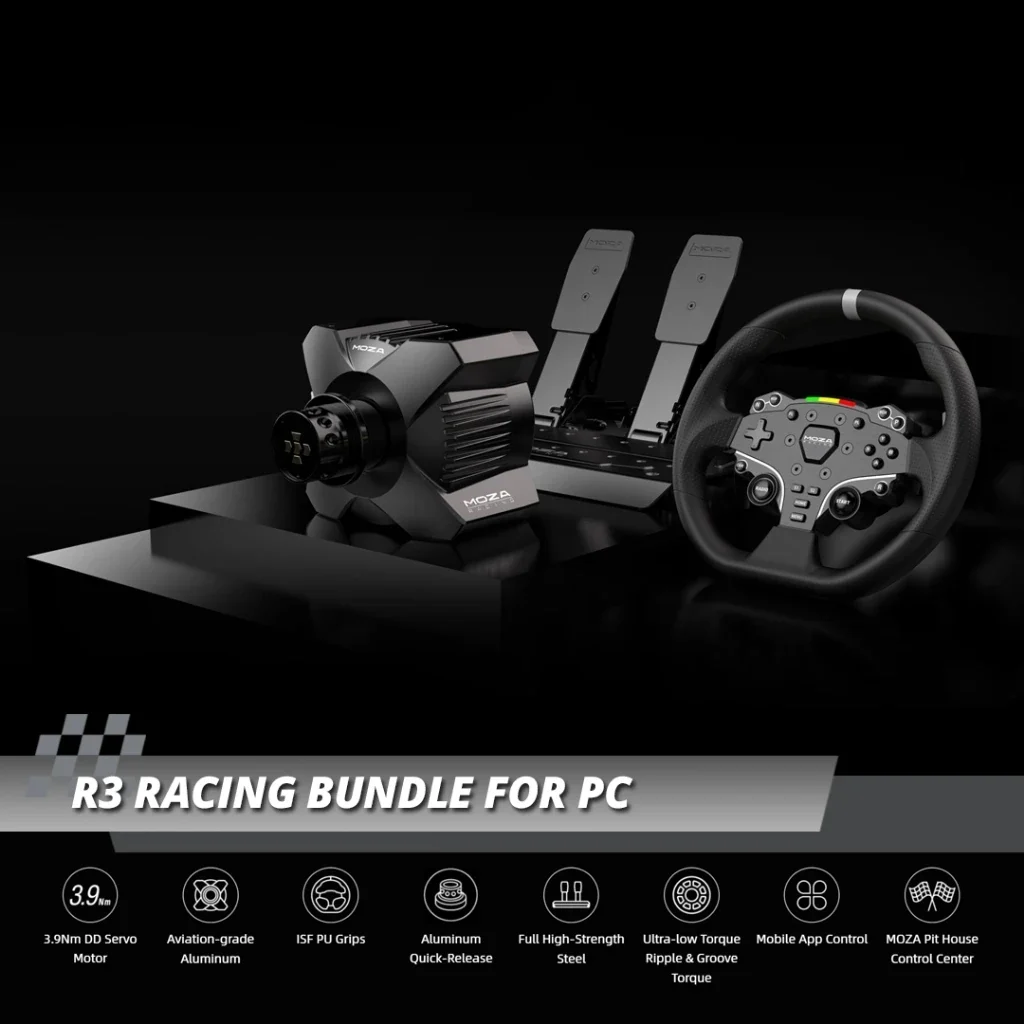

MOZA R3 Racing Simulator Bundle for PC (RS074) 3.9Nm Racing Wheel and Pedals

Product description

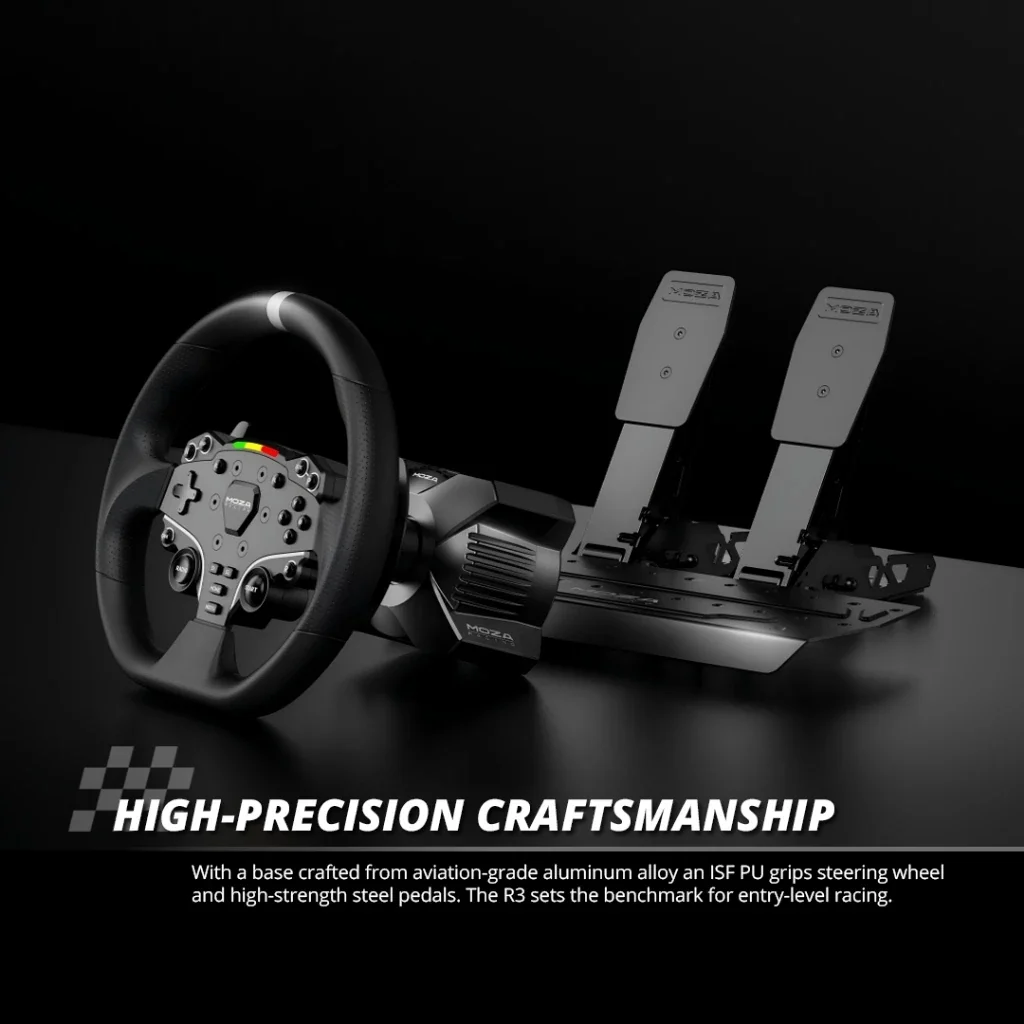

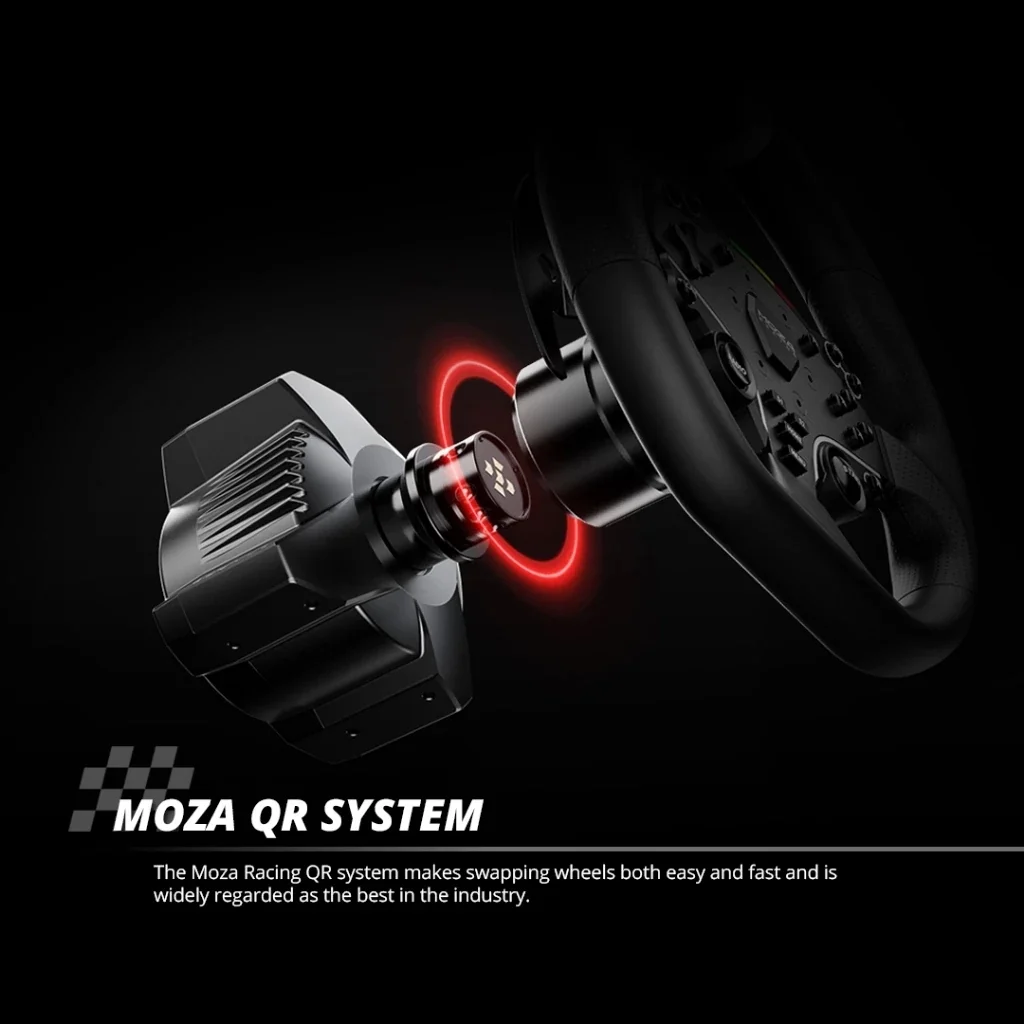

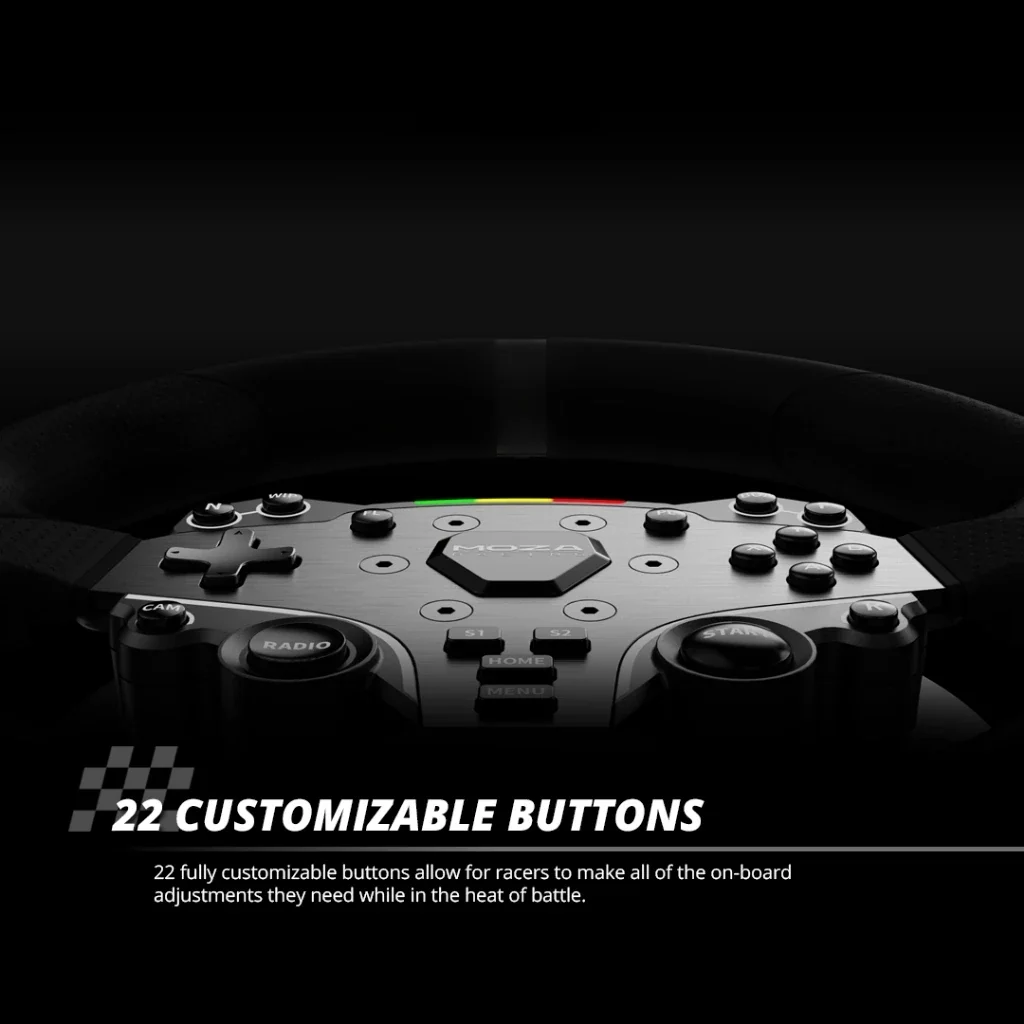

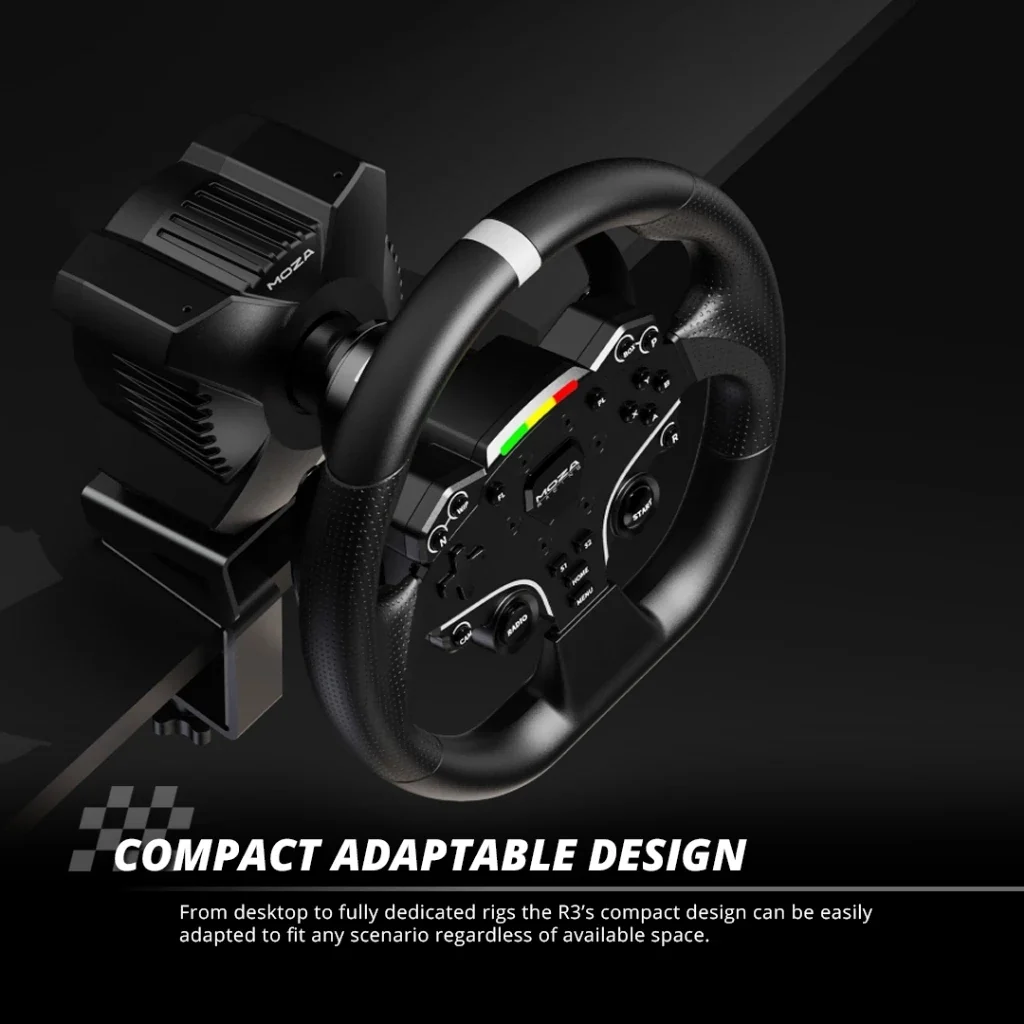

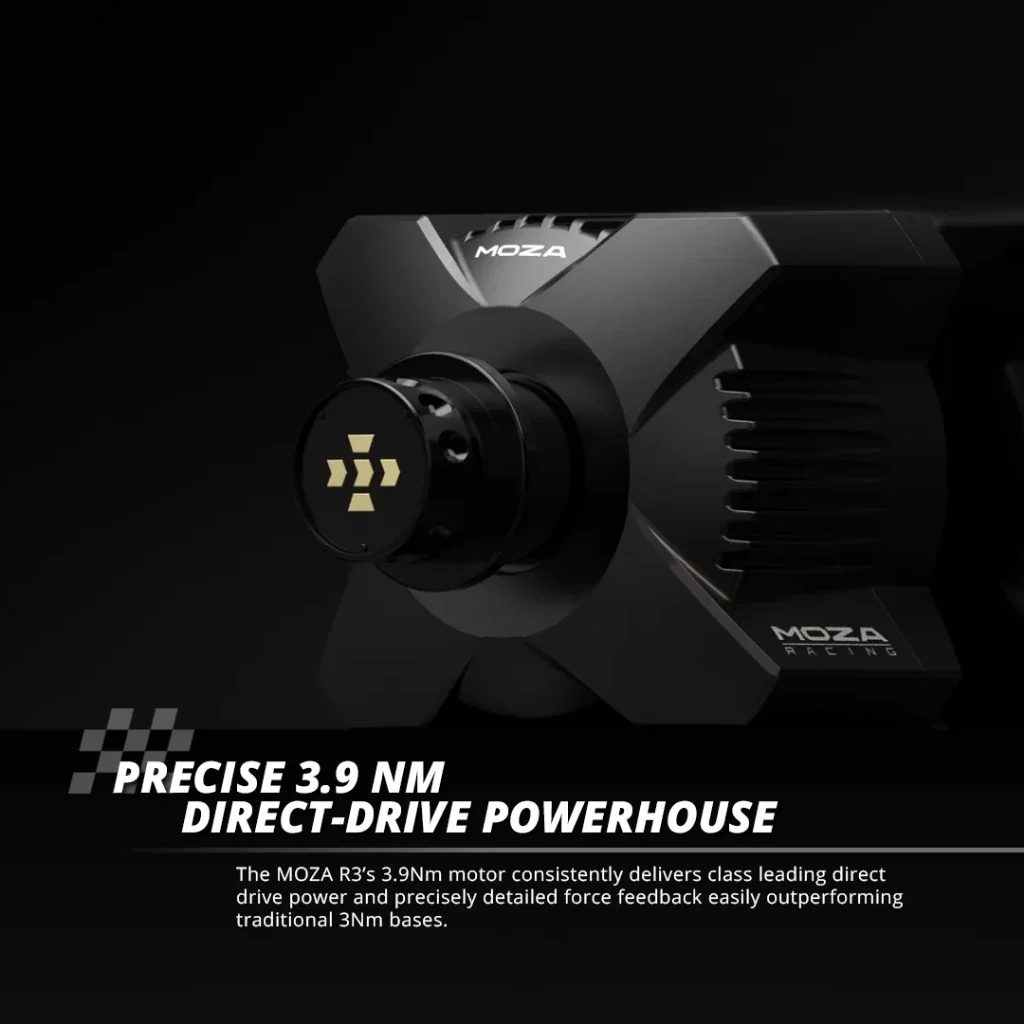

Product Highlights • 3.9Nm direct drive motor delivers precise and detailed force feedback • Compact racing wheel base suitable for desktop or racing rig setup • Aviation-grade aluminum alloy housing for strong durability • 280mm ES steering wheel with ISF PU grips for comfortable control • 22-button steering wheel layout with RGB RPM LED light • SR-P Lite pedals with Hall sensor throttle for responsive input • Includes table clamp, power supply, data cable, and toolkit Key Specifications – DD R3 Wheel Base • Brand: MOZA • Model: R3 Racing Wheel & Pedals Bundle • Platform: PC • Drive Type: Direct Drive • Peak Torque: 3.9Nm • Max Wheel Rotation: Limitless • Housing Material: Aviation Aluminum Alloy • Colour: Black • Rated Power: 72W • Input Voltage: 110V~220V AC → 12V DC • Encoder Resolution: 15 Bits • USB Refresh Rate: 1000Hz • APP Functionality: Supported • Quick Release: Supported • Connection Ports: Power, DC Input, Pedal, USB, Dash • Mounting Method: 4 Holes on Bottom • Table Clamp: Included • Online Firmware Upgrade: Supported Key Specifications – ES Steering Wheel • Wheel Size: 280mm • Grips: ISF PU • Face Plate Material: Aluminum Alloy • Shifter Paddle Material: Aluminum Alloy • Buttons: 22 • RPM LED Light: 10 High Brightness RGB LED Beads • Intelligent Telemetry: Supported • Release Method: MOZA Quick Release Key Specifications – SR-P Lite Pedals • Material: High-Strength Steel • Plate Material: High-Strength Steel • Colour: Black • Throttle Sensor: Hall Sensor • Pedal Spacing: Adjustable • Pedal Plate Height: Adjustable • Pedal Input Adjustment: Supported • Pedal Input Reversal: Supported • Pedal Output Curve Adjustment: Supported • Pedal Anti-Slip Pad: Included Dimensions & Weight • DD R3 Base Dimensions: 200 x 150 x 120mm • DD R3 Base Weight: 4kg • Steering Wheel Size: 280mm • SR-P Lite Pedals Dimensions: 350 x 270 x 140mm • SR-P Lite Pedals Weight: 1.5kg • Package Weight: Approx. 11.4kg What’s in the Box • MOZA DD R3 Wheel Base x 1 • ES Steering Wheel x 1 • SR-P Lite Pedals x 1 • Table Clamp x 1 • Power Supply x 1 • Data Cable x 1 • Toolkit x 1 • Manual and Warranty Card x 1 Warranty: 2 Years Warranty
