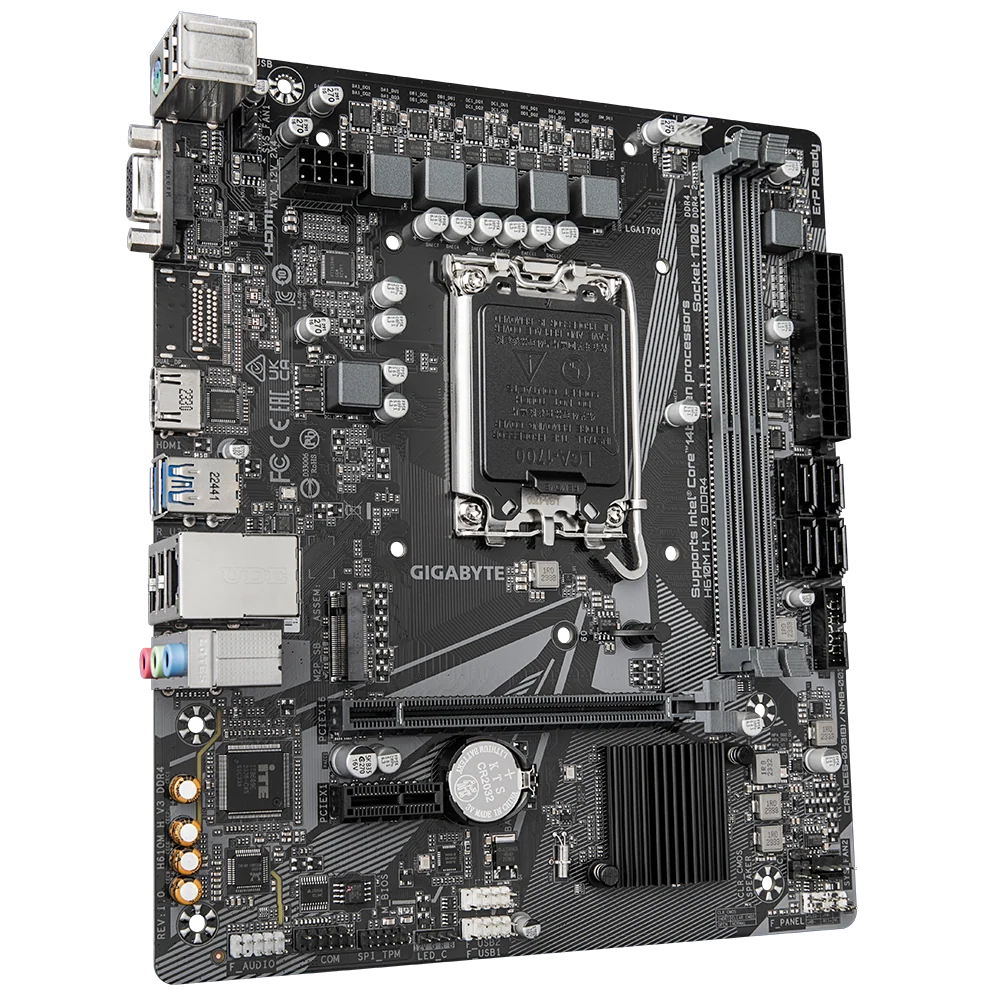

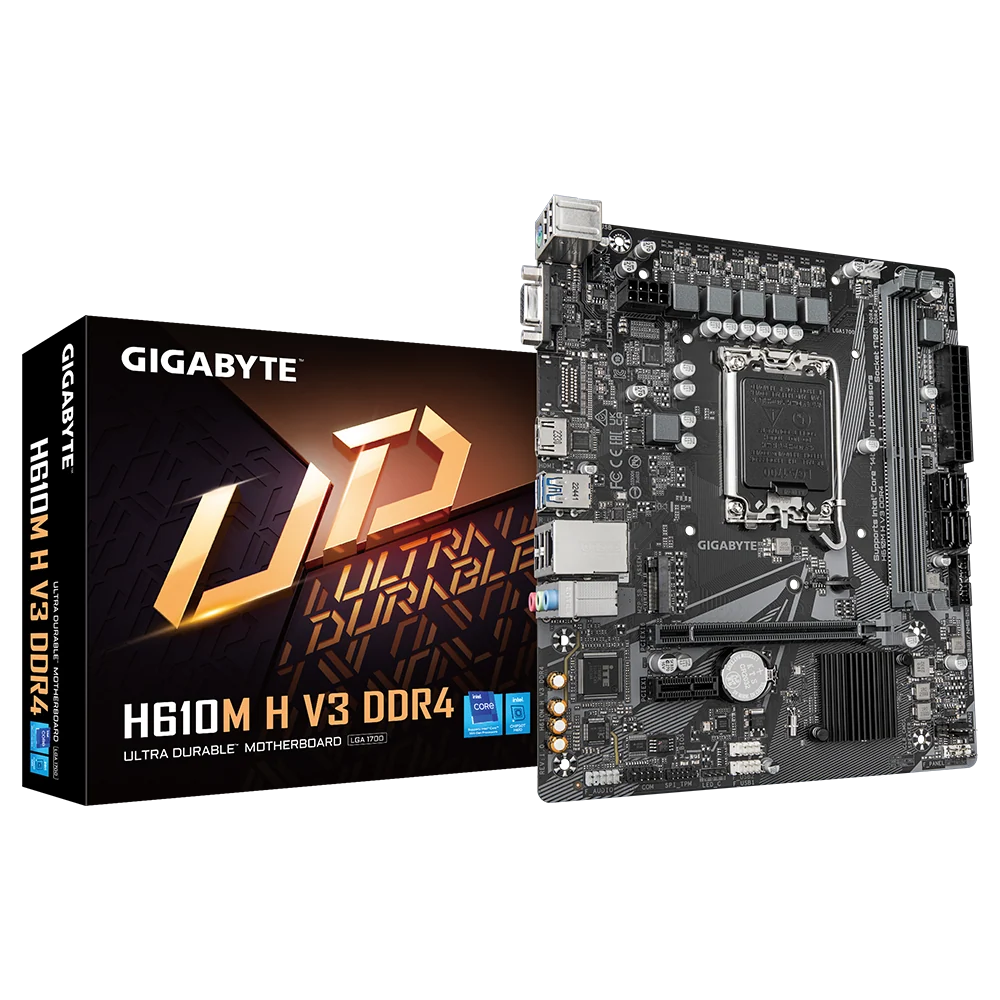

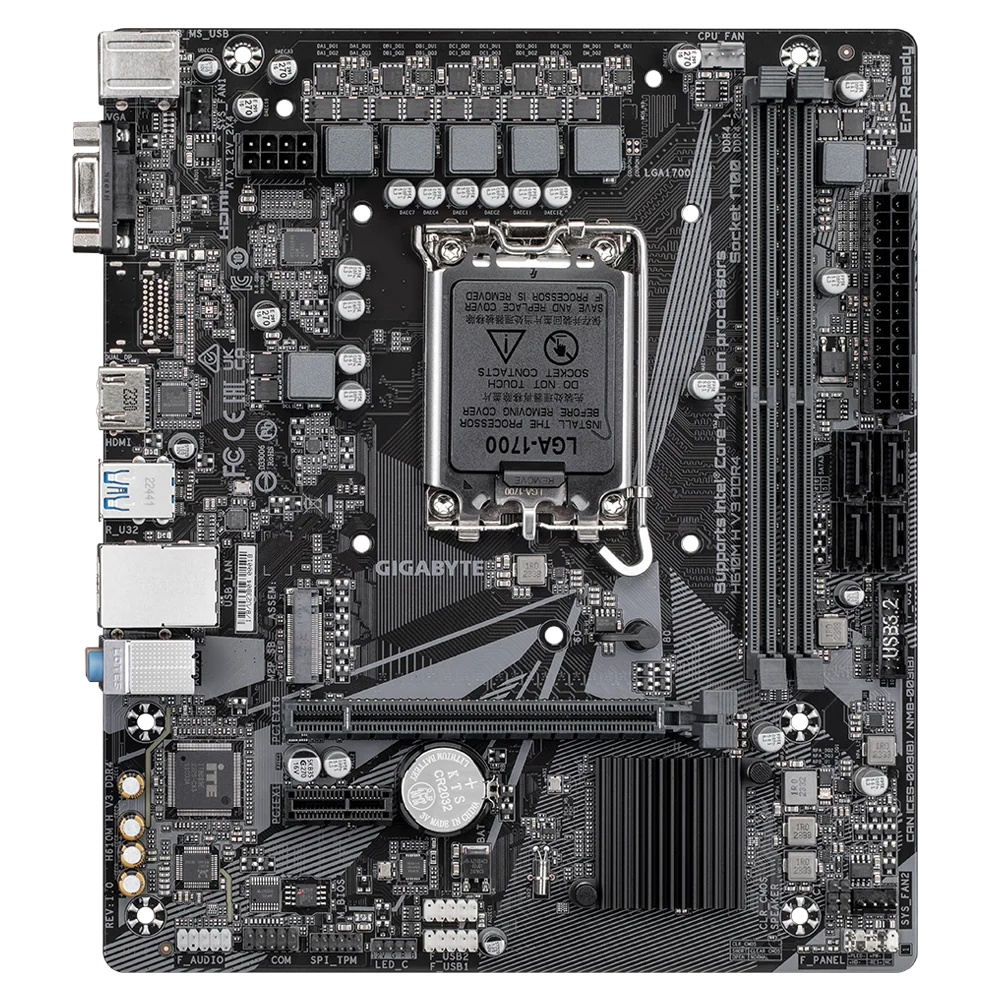

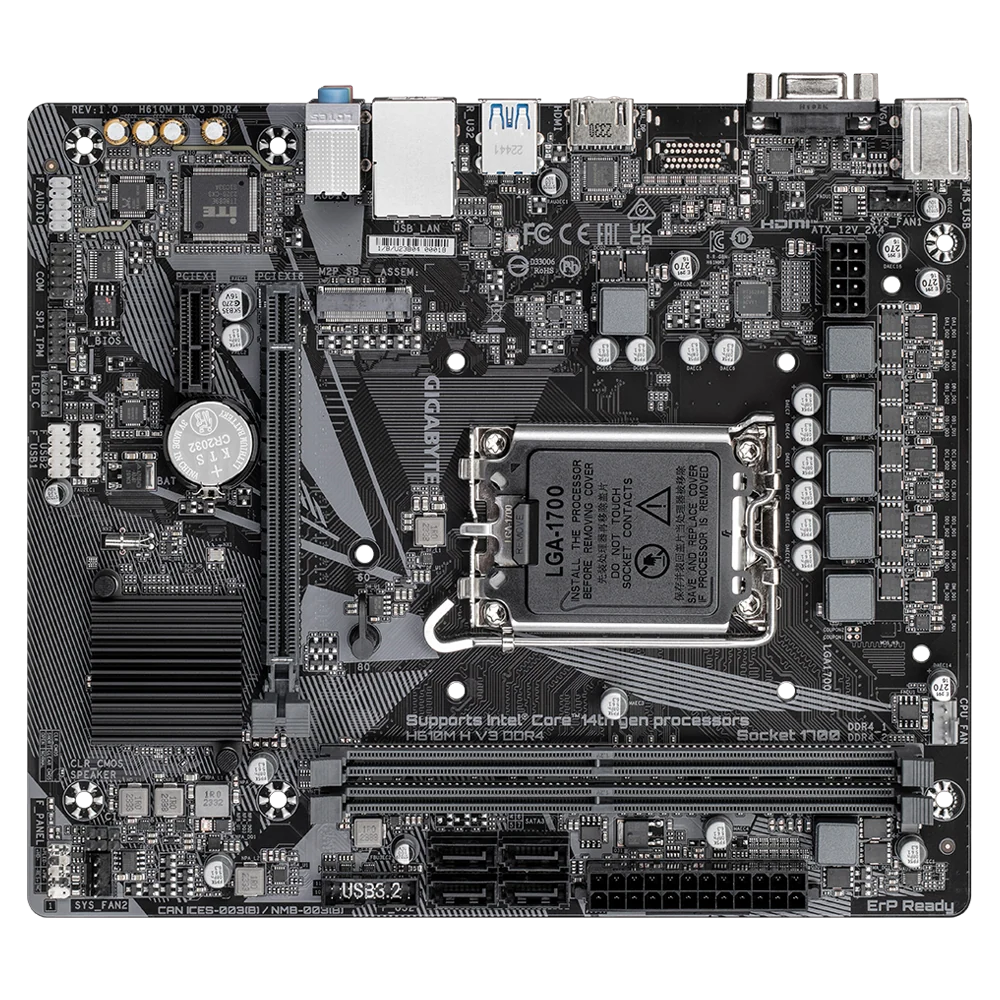

Gigabyte H610M H V3 DDR4 Micro ATX (mATX) Intel Motherboard | Intel LGA1700 Socket

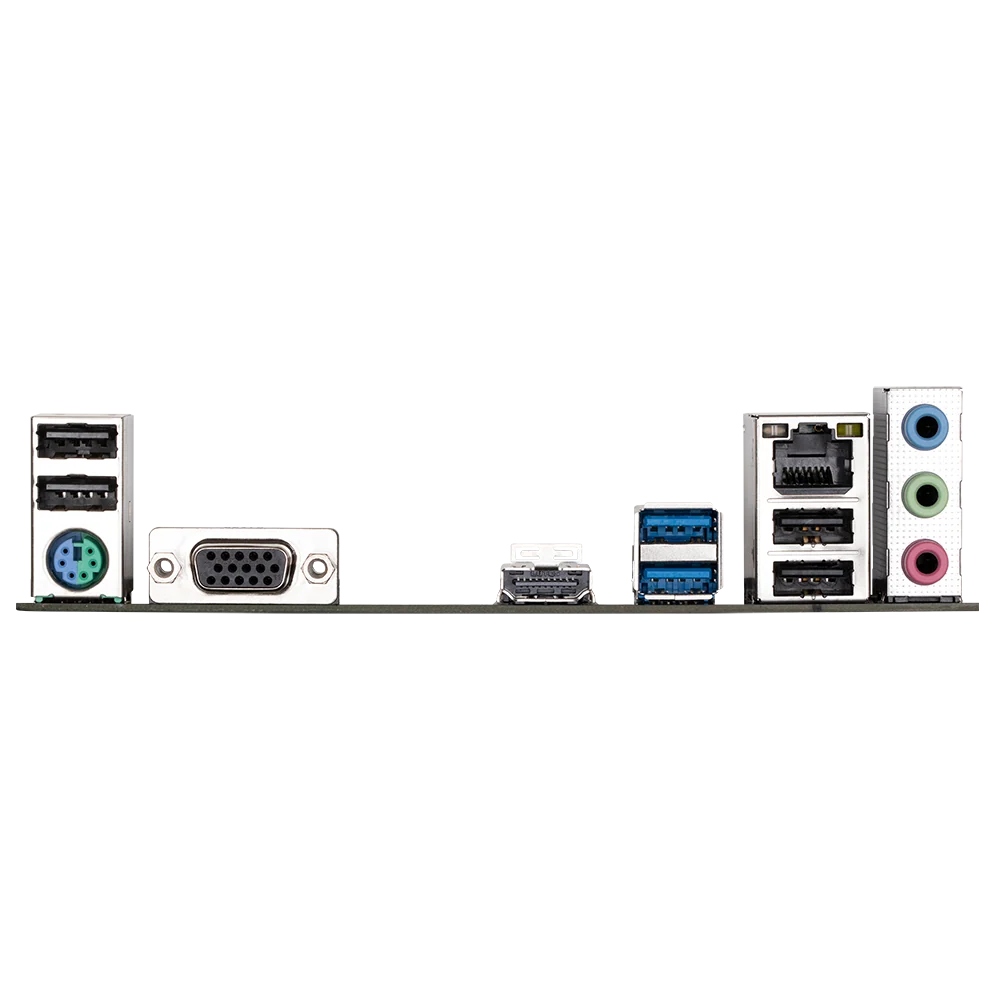

Product Highlights • Supports Intel® Core™ 14th, 13th and 12th Gen processors • Intel® H610 chipset with LGA1700 socket • 2 x DDR4 DIMM slots supporting up to 64GB memory • Supports DDR4 memory speed up to 3200MHz • HDMI and D-Sub display output for flexible connectivity • 1 x M.2 slot and 4 x SATA 6Gb/s ports for storage expansion • Micro ATX form factor suitable for compact PC builds Key Specifications Model: H610M H V3 DDR4 Product Type: Intel Motherboard Form Factor: Micro ATX / mATX Chipset: Intel H610 Socket: Intel LGA1700 CPU Support: • Intel® Core™ 14th Gen Processors • Intel® Core™ 13th Gen Processors • Intel® Core™ 12th Gen Processors • Intel® Pentium® Gold Processors • Intel® Celeron® Processors Memory: 2 x DDR4 DIMM Maximum Memory: Up to 64GB Memory Speed: DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 Memory Support: Dual Channel, Intel® XMP Video Output: • 1 x D-Sub port • 1 x HDMI port, supports up to 4096 x 2160 @ 60Hz Expansion Slots: • 1 x PCIe 4.0 x16 slot • 1 x PCIe 3.0 x1 slot Storage: • 1 x M.2 connector, Socket 3, M Key, Type 2280 / 2260 • Supports PCIe 3.0 x4 / x2 SSD • 4 x SATA 6Gb/s connectors LAN: Realtek® GbE LAN Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio Rear I/O Ports: • 1 x PS/2 keyboard / mouse port • 1 x D-Sub port • 1 x HDMI port • 2 x USB 3.2 Gen 1 ports • 4 x USB 2.0 / 1.1 ports • 1 x RJ-45 port • 3 x Audio jacks Special Features: • 4+1+1 Hybrid Digital VRM Design • Smart Fan 6 • GIGABYTE APP Center • Q-Flash • Anti-Sulfur Resistors Design Operating System: Windows® 11 64-bit, Windows® 10 64-bit Dimensions & Weight Dimensions: 22.3 x 19.3 x 2.0 cm Weight: 1.00 kg Warranty: 3 Years Warranty
