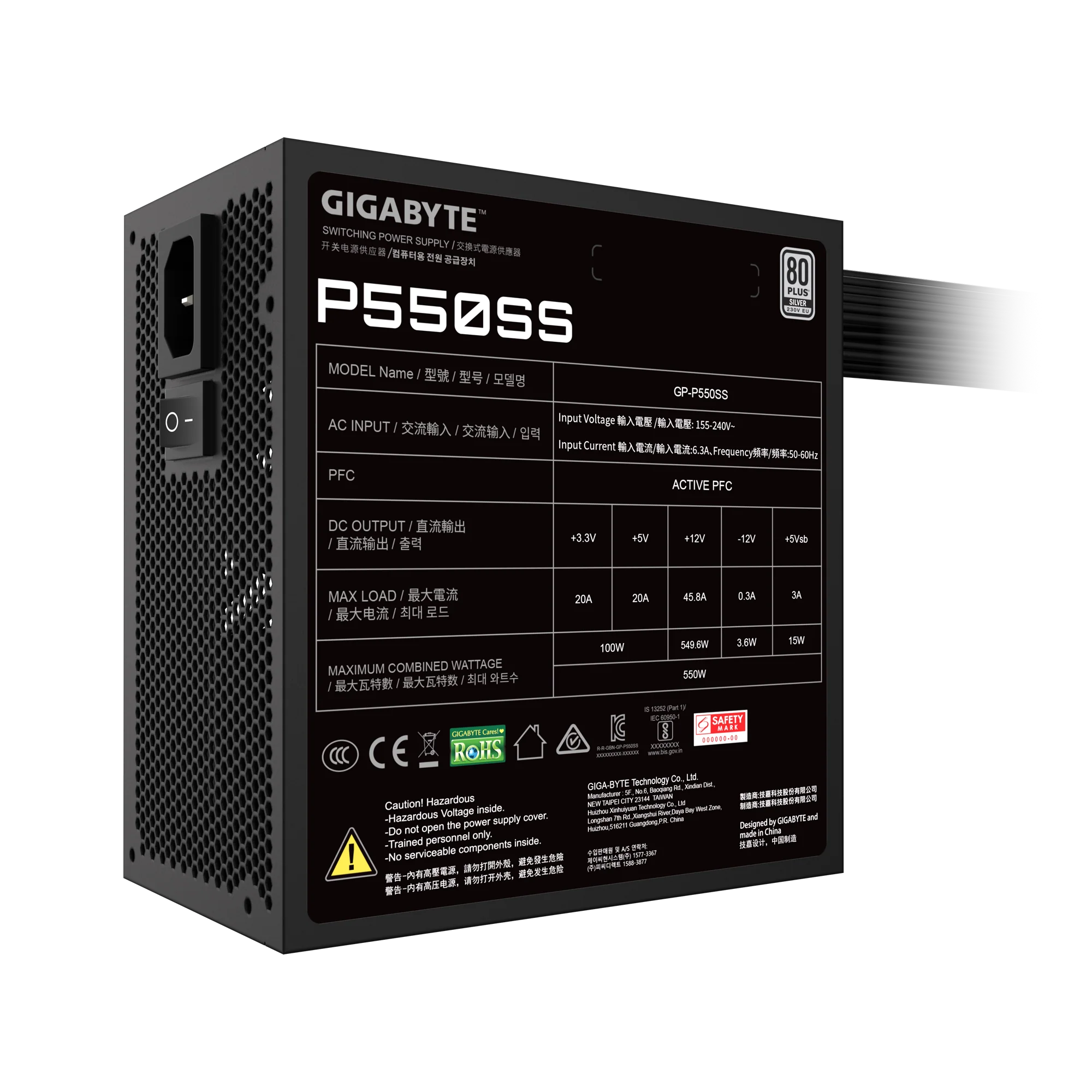

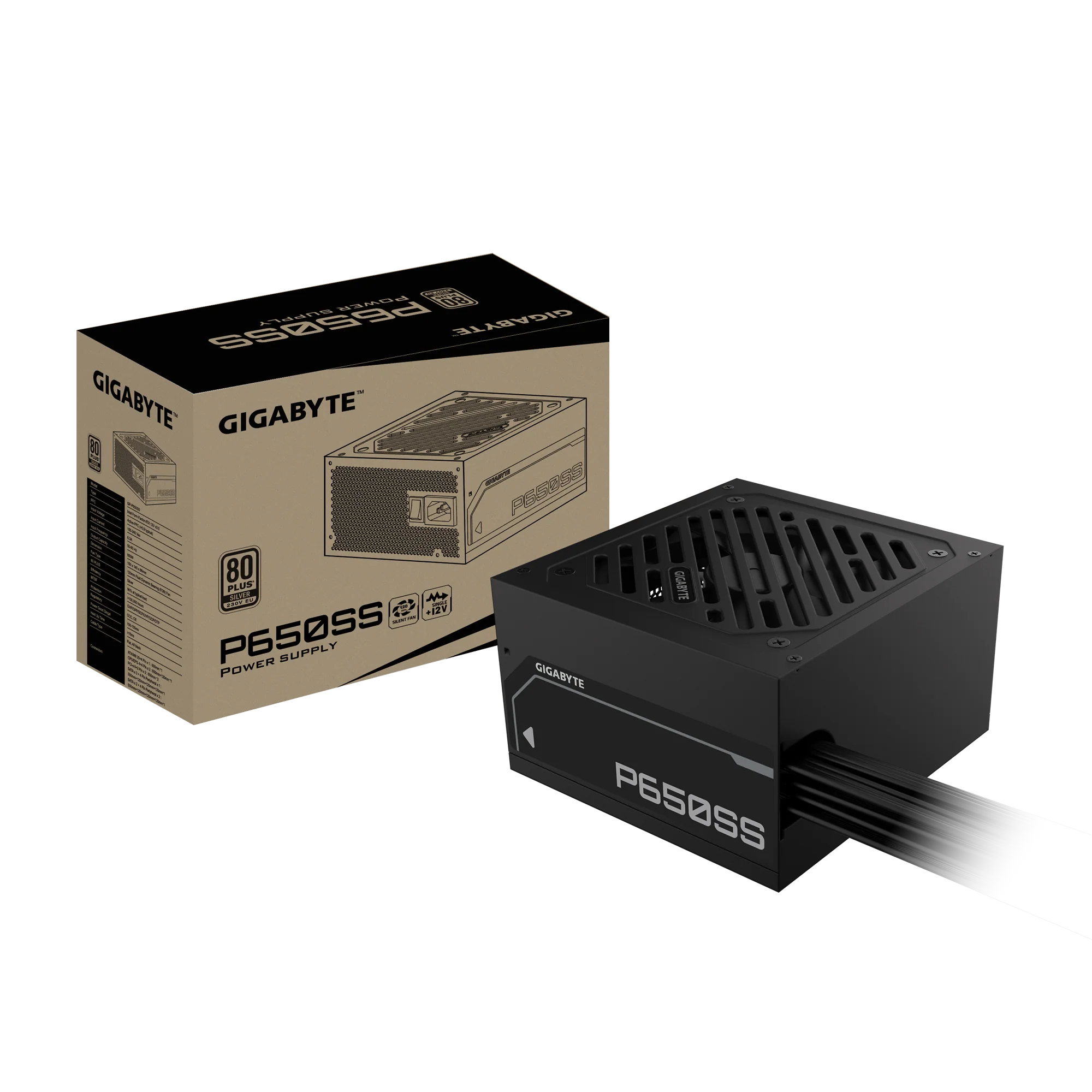

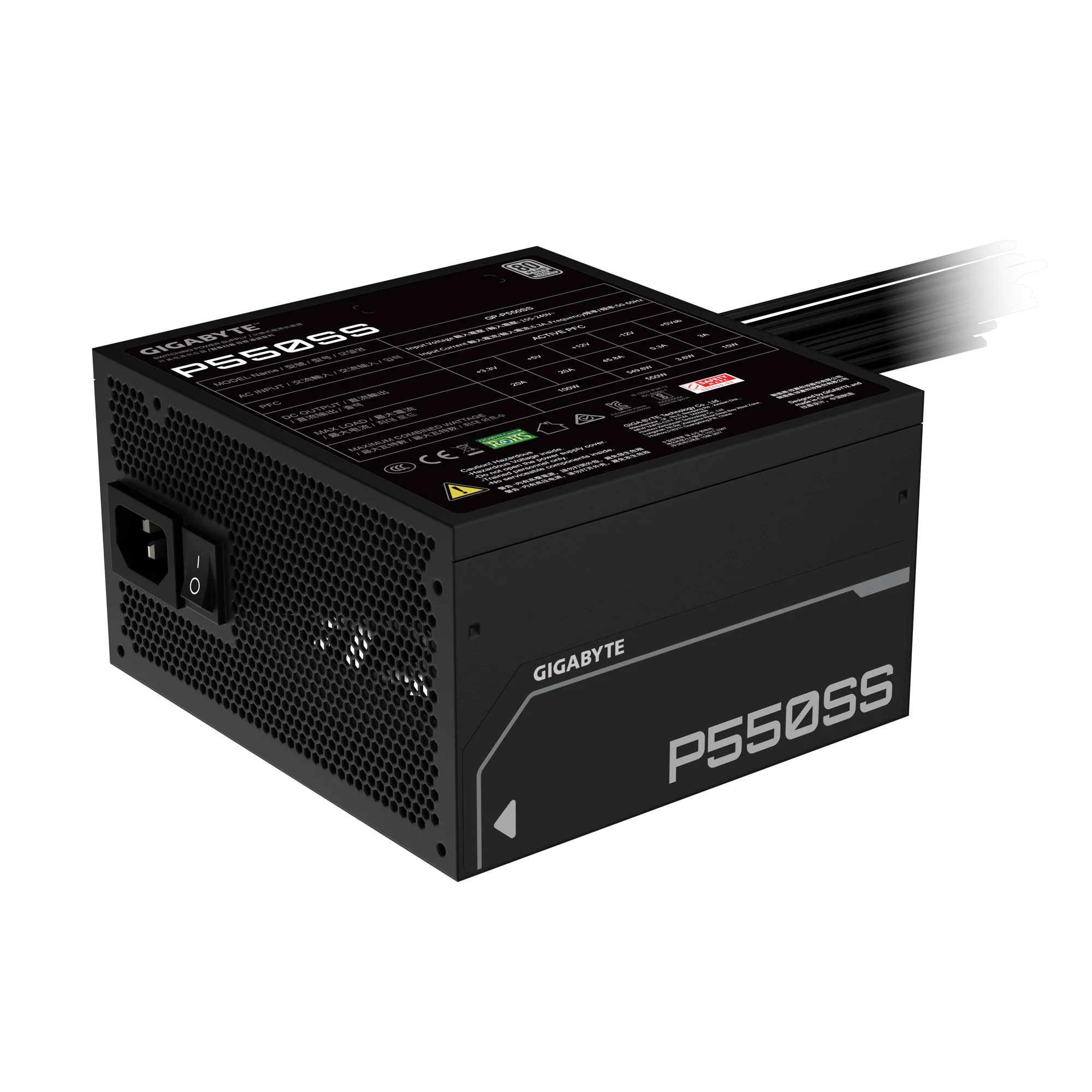

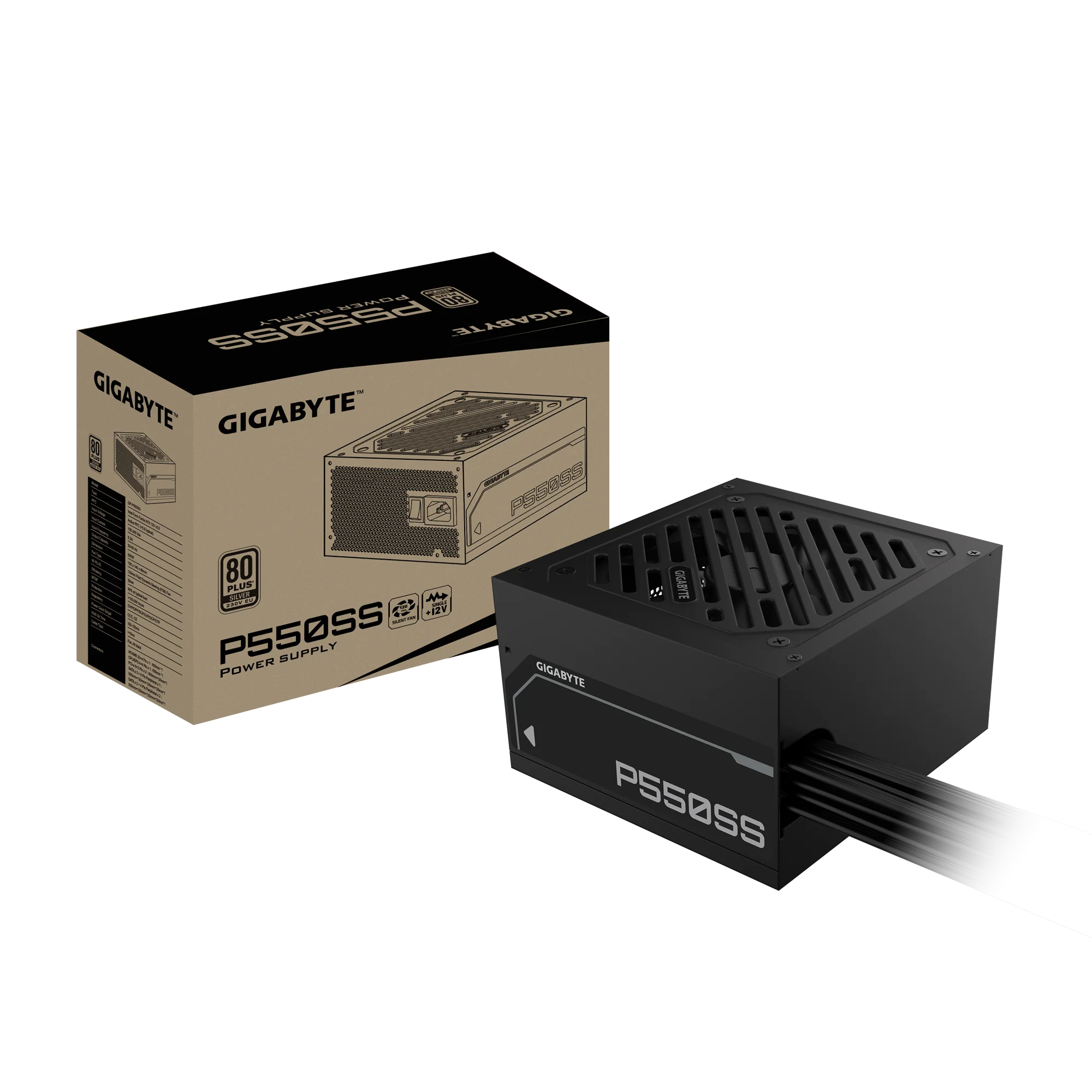

GIGABYTE GP-P550SS (550W) / GP-P650SS (650W) Power Supply | 80+ Silver PSU

Product Highlights • 80 PLUS Silver certified power supply with up to 90% efficiency at typical load • Available in 550W and 650W options for different PC build requirements • Supports Intel ATX 3.0 standard and compatible with ATX 3.1 power design • 120mm Fluid Dynamic Bearing fan provides quiet and reliable cooling performance • Active PFC design helps deliver stable and efficient power output • MTBF over 100,000 hours for long-term reliability • Flat cable design helps improve cable management and internal airflow • Powerful single +12V rail supports stable CPU and GPU power delivery • Built-in protection with OVP, OPP, SCP, UVP, OCP and OTP • Suitable for office desktops, gaming PCs and daily system upgrades Key Specifications Brand: GIGABYTE Model: GP-P550SS / GP-P650SS Product Type: ATX Power Supply Unit Power Wattage: 550W / 650W Certification: 80 PLUS Silver Efficiency: 90% at Typical Load, 230V EU Form Factor: Intel Form Factor ATX 12V V3.0, Compatible with ATX 3.1 Fan Size: 120mm Fan Bearing: Fluid Dynamic Bearing Fan PFC Type: Active PFC, >0.9 Typical MTBF: >100,000 Hours Input Voltage: 155 – 240V AC Input Current: 6.3A Input Frequency: 50 – 60Hz Protection: OVP / OPP / SCP / UVP / OCP / OTP ATX 24 Pin Connector: 1 CPU / EPS 4+4 Pin Connector 550W: 1 CPU / EPS 4+4 Pin Connector 650W: 2 PCIe 6+2 Pin Connector: 2 SATA Connector: 5 Peripheral 4 Pin Connector: 3 Dimensions & Weight Product Dimensions: 150 x 140 x 86 mm Product Weight: Not Specified What’s Inside the Box • GIGABYTE GP-P550SS / GP-P650SS Power Supply Unit • AC Power Cable • Attached PSU Cables • User Guide Warranty: 3 Years Warranty
