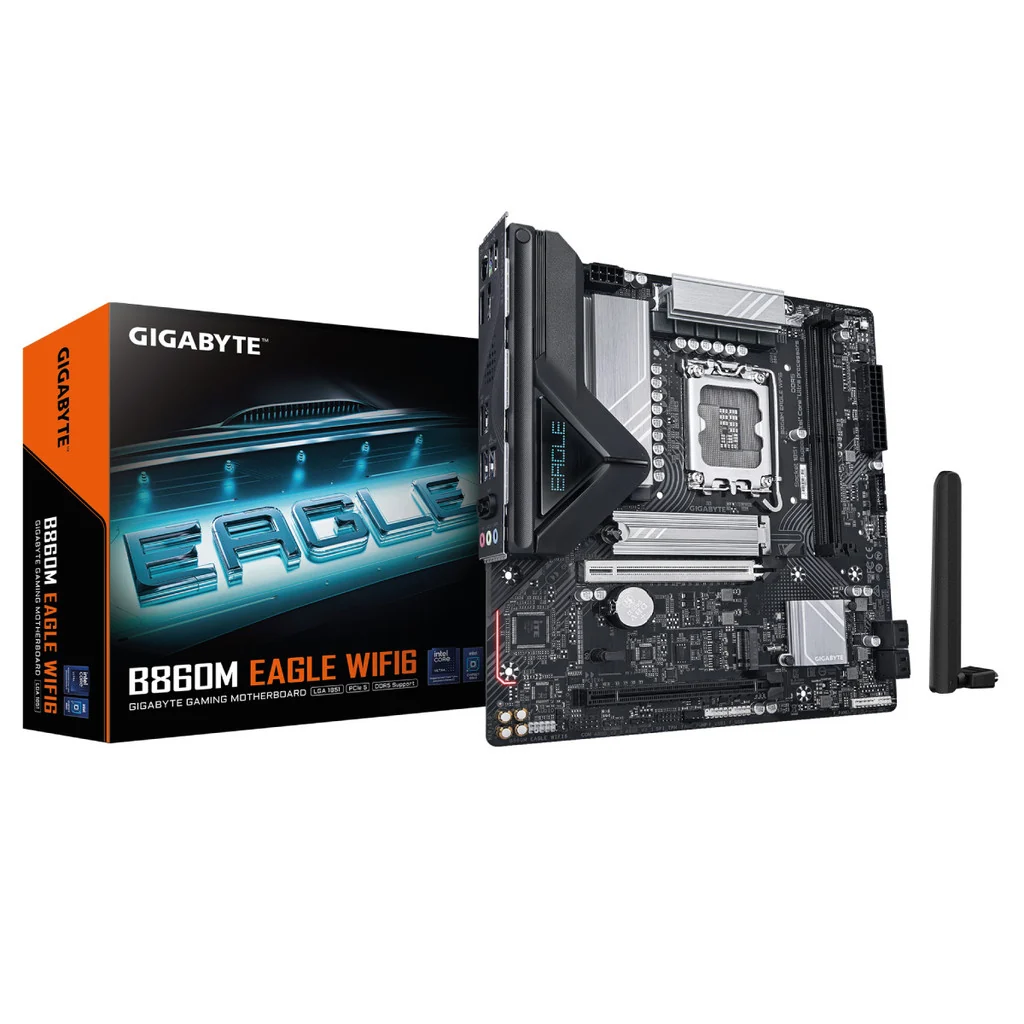

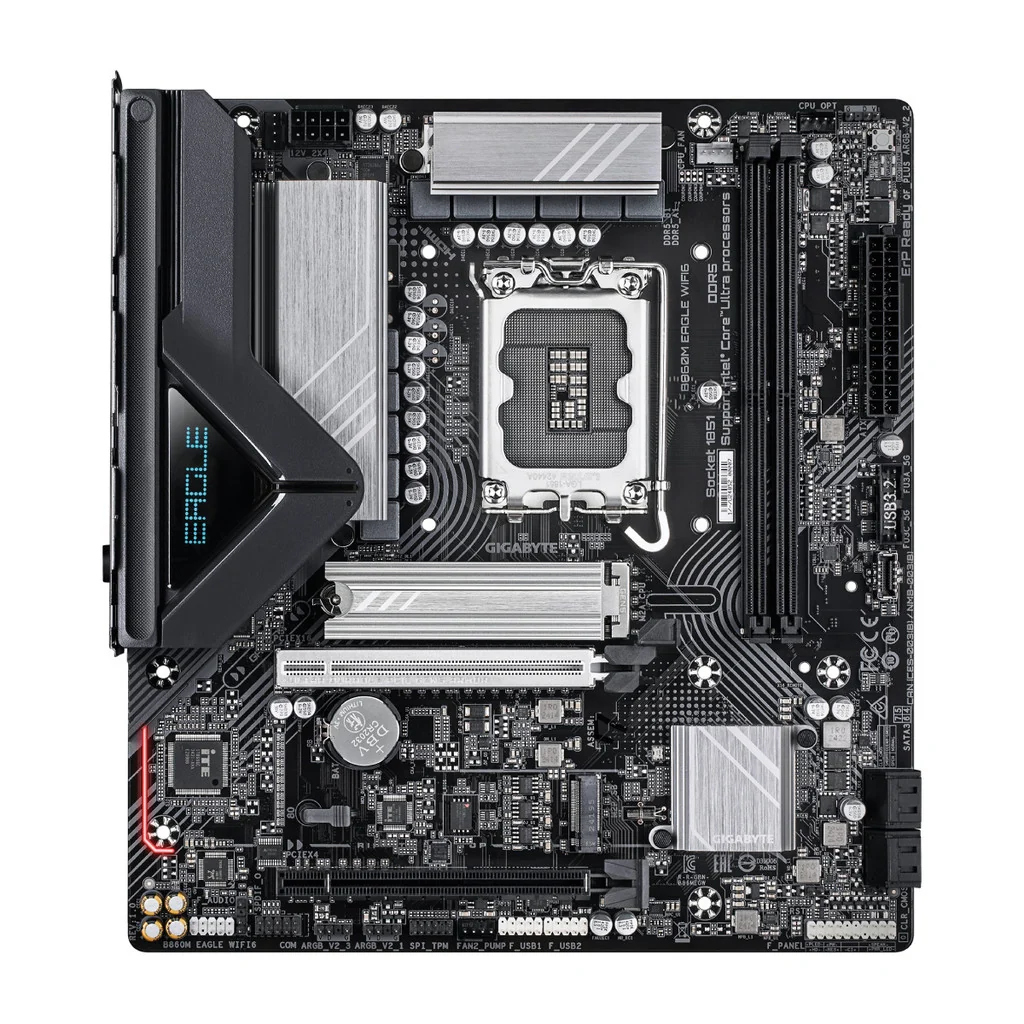

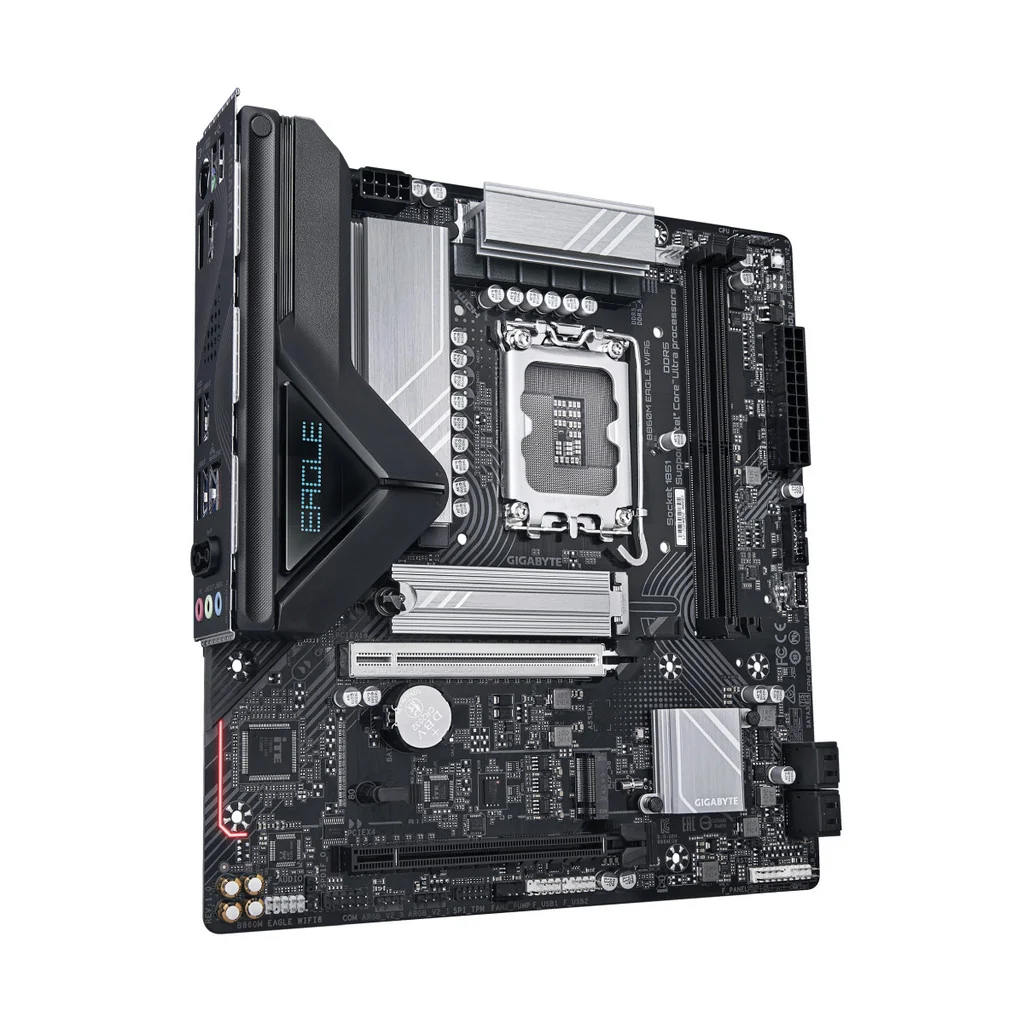

Gigabyte B860M EAGLE WIFI 6 Micro ATX (mATX) Intel LGA1851 Gaming Motherboard

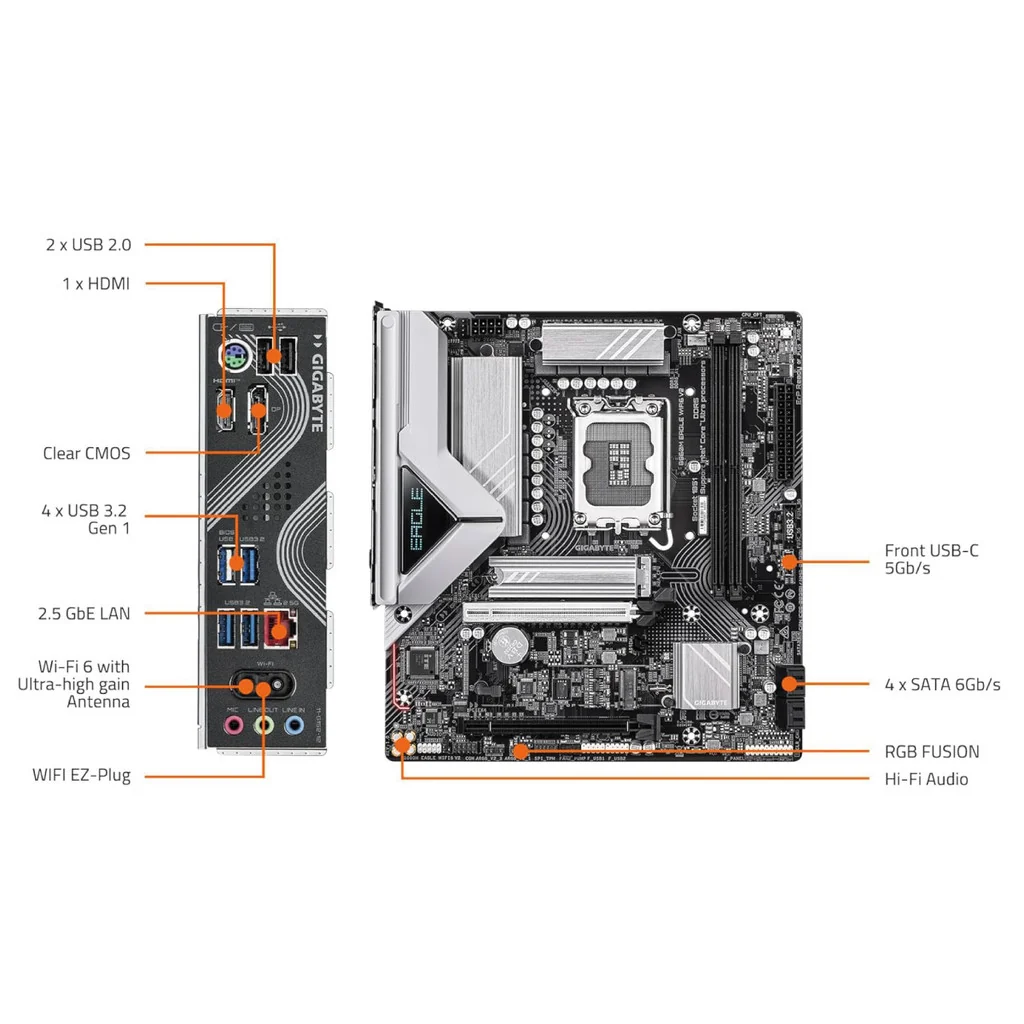

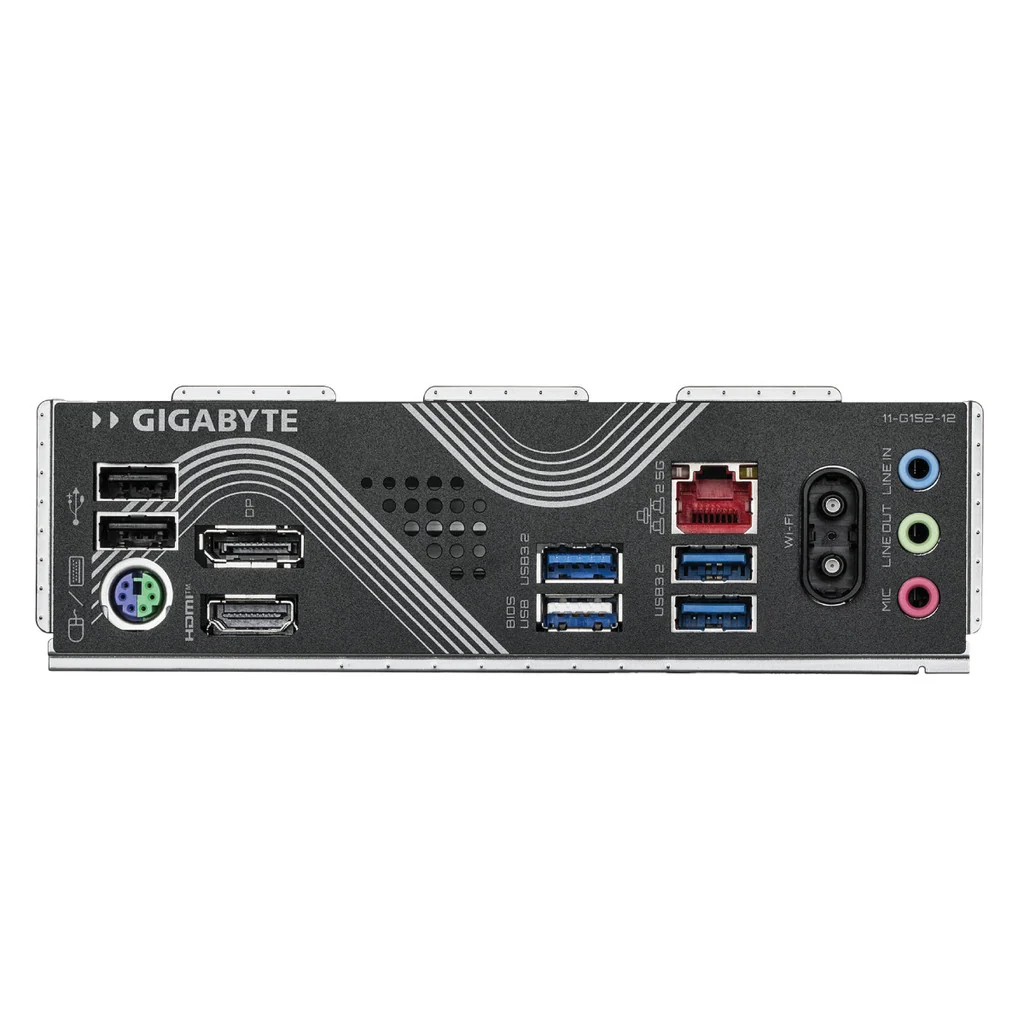

Product Highlights • Supports Intel® Core™ Ultra Processors on LGA1851 socket • Intel® B860 Express chipset for modern Intel gaming builds • 2 x DDR5 DIMM slots supporting up to 128GB memory • Supports DDR5 memory speed up to 9066MT/s (O.C.) • Built-in Wi-Fi 6, Bluetooth® 5.3 and Realtek® 2.5GbE LAN • 2 x M.2 slots including PCIe 5.0 support and 4 x SATA 6Gb/s ports • Micro ATX form factor suitable for compact gaming PC builds Key Specifications Model: B860M EAGLE WIFI6 Product Type: Intel Gaming Motherboard Form Factor: Micro ATX / mATX Chipset: Intel B860 Express Socket: Intel LGA1851 CPU Support: • Intel® Core™ Ultra Processors Memory: 2 x DDR5 DIMM Maximum Memory: Up to 128GB Memory Speed: Up to DDR5 9066MT/s (O.C.) Memory Support: Dual Channel, Intel® XMP, ECC / Non-ECC Un-buffered DDR5 Graphics Output: • 1 x HDMI 2.1 port, supports up to 4096 x 2160 @ 60Hz • 1 x DisplayPort 2.1, supports up to 3840 x 2160 @ 144Hz Expansion Slots: • 1 x PCIe 5.0 x16 slot • 1 x PCIe 4.0 x16 slot, running at x4 mode Storage: • 1 x M.2 slot, supports PCIe 5.0 x4 / x2 SSD • 1 x M.2 slot, supports PCIe 4.0 x4 / x2 SSD • 4 x SATA 6Gb/s connectors • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage Wireless Connectivity: Wi-Fi 6, Bluetooth® 5.3 LAN: Realtek® 2.5GbE LAN Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio Back Panel Connectors: • 1 x PS/2 keyboard / mouse port • 1 x HDMI port • 1 x DisplayPort • 3 x USB 3.2 Gen 1 ports • 3 x USB 2.0 / 1.1 ports • 2 x Antenna connectors • 1 x RJ-45 port • 3 x Audio jacks Internal I/O Connectors: • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x CPU fan header • 1 x CPU fan / water cooling pump header • 1 x System fan header • 1 x System fan / water cooling pump header • 3 x Addressable RGB Gen2 LED strip headers • 2 x M.2 Socket 3 connectors • 4 x SATA 6Gb/s connectors • 1 x Front panel header • 1 x Front panel audio header • 1 x S/PDIF Out header • 1 x USB Type-C® header with USB 3.2 Gen 1 support • 1 x USB 3.2 Gen 1 header • 2 x USB 2.0 / 1.1 headers • 1 x Trusted Platform Module header • 1 x Serial port header • 1 x Q-Flash Plus button • 1 x Reset jumper • 1 x Clear CMOS jumper Special Features: • 6+1+2 Digital VRM Design • PCIe 5.0 Ready • M.2 Thermal Guard • Wi-Fi EZ-Plug • Q-Flash Plus • Smart Fan 6 • GIGABYTE Control Center • RGB Fusion Support Operating System: Windows® 11 64-bit, Windows® 10 64-bit Dimensions & Weight Dimensions: 24.4 x 22.5 x 2.0 cm Weight: 1.60 kg Warranty: 3 Years Warranty
