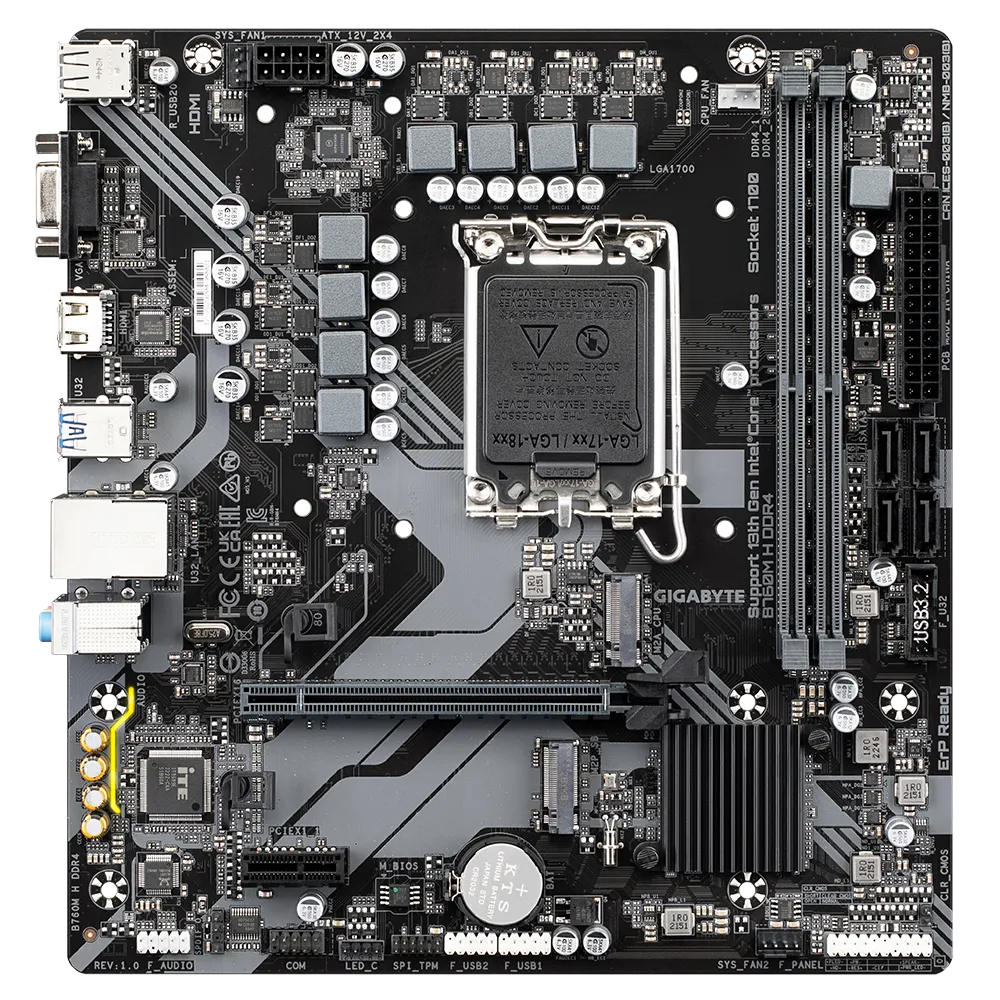

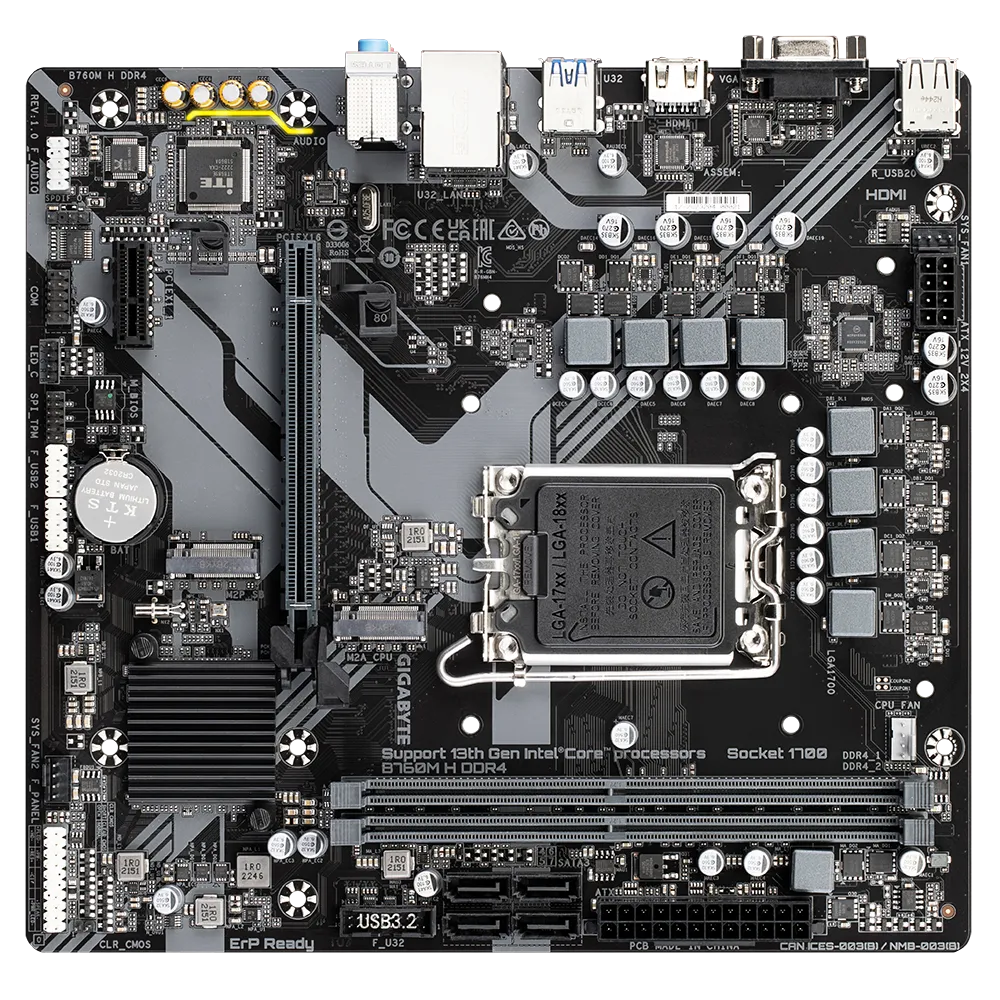

Gigabyte B760M H DDR4 Micro ATX (mATX) Intel Motherboard | Intel LGA1700 Socket

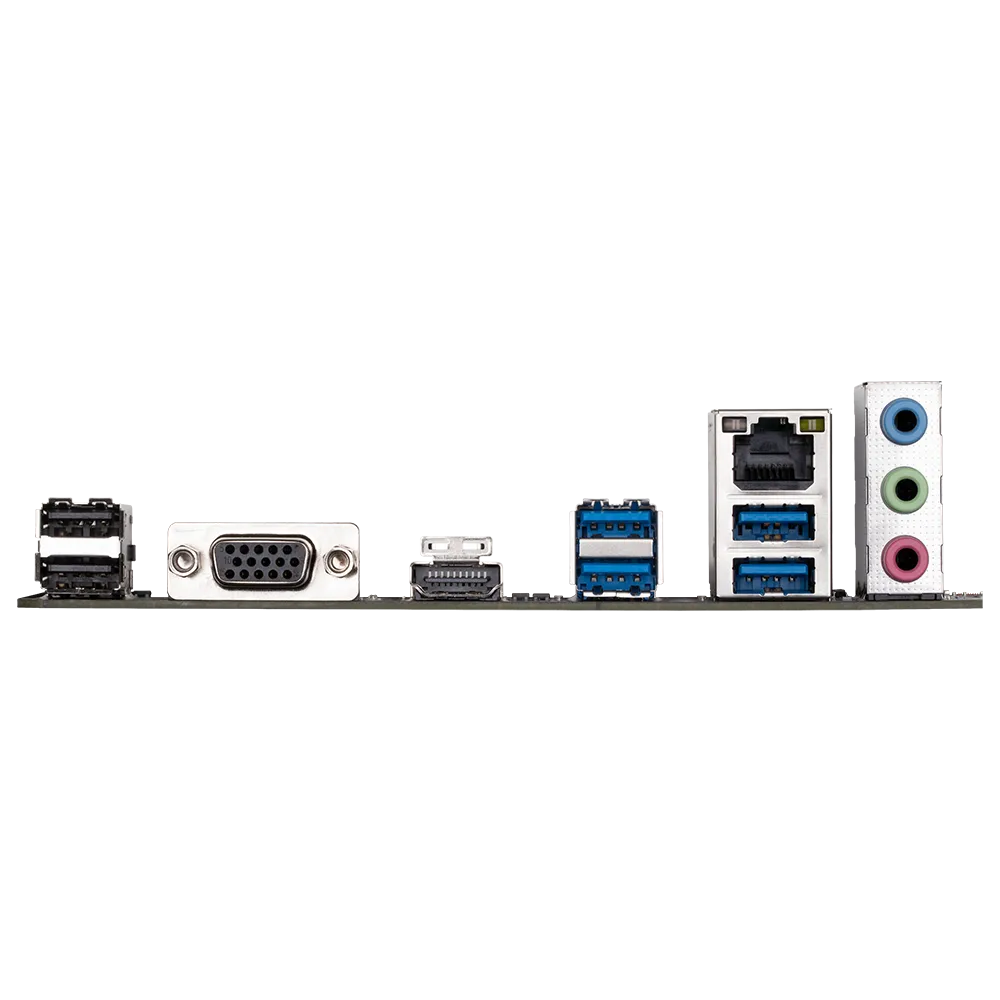

Product Highlights • Supports Intel® Core™ 14th, 13th and 12th Gen processors • Intel® B760 chipset with LGA1700 socket • 2 x DDR4 DIMM slots supporting up to 64GB memory • Supports DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory • HDMI and D-Sub display output for flexible connectivity • 2 x PCIe 4.0 M.2 slots and 4 x SATA 6Gb/s ports for storage expansion • Micro ATX form factor suitable for compact PC builds Key Specifications Model: B760M H DDR4 Product Type: Intel Motherboard Form Factor: Micro ATX / mATX Chipset: Intel B760 Socket: Intel LGA1700 CPU Support: • Intel® Core™ 14th Gen Processors • Intel® Core™ 13th Gen Processors • Intel® Core™ 12th Gen Processors • Intel® Pentium® Gold Processors • Intel® Celeron® Processors Memory: 2 x DDR4 DIMM Maximum Memory: Up to 64GB Memory Speed: DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s Memory Support: Dual Channel, Intel® XMP Video Output: • 1 x D-Sub port • 1 x HDMI port, supports up to 4096 x 2160 @ 60Hz Expansion Slots: • 1 x PCIe 4.0 x16 slot • 1 x PCIe 3.0 x1 slot Storage: • 2 x M.2 connectors, Socket 3, M Key, Type 2280 • Supports PCIe 4.0 x4 / x2 SSD • 4 x SATA 6Gb/s connectors • Supports RAID 0, RAID 1, RAID 5 and RAID 10 LAN: Realtek® GbE LAN, 1Gbps / 100Mbps Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio Rear I/O Ports: • 2 x USB 2.0 / 1.1 ports • 1 x D-Sub port • 1 x HDMI port • 4 x USB 3.2 Gen 1 ports • 1 x RJ-45 port • 3 x Audio jacks Internal I/O Connectors: • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 1 x CPU fan header • 2 x System fan headers • 1 x RGB LED strip header • 2 x M.2 Socket 3 connectors • 4 x SATA 6Gb/s connectors • 1 x Front panel header • 1 x Front panel audio header • 1 x S/PDIF Out header • 1 x USB 3.2 Gen 1 header • 2 x USB 2.0 / 1.1 headers • 1 x TPM header • 1 x Serial port header • 1 x Clear CMOS jumper Special Features: • Hybrid 6+1+1 Phases Digital VRM Solution • Smart Fan 6 • PCIe EZ-Latch • GIGABYTE Control Center • Q-Flash Operating System: Windows® 11 64-bit, Windows® 10 64-bit Dimensions & Weight Dimensions: 23.0 x 21.5 x 2.0 cm Weight: 0.80 kg Warranty: 3 Years Warranty
