Product

D-Link DES-F1006P-E 6 Port / D-Link DES-F1010P-E 10 Port / D-Link DES-F1018P-E 18 Port 250M Distance PoE Switch & 2 Uplink Ports for CCTV & IP Camera

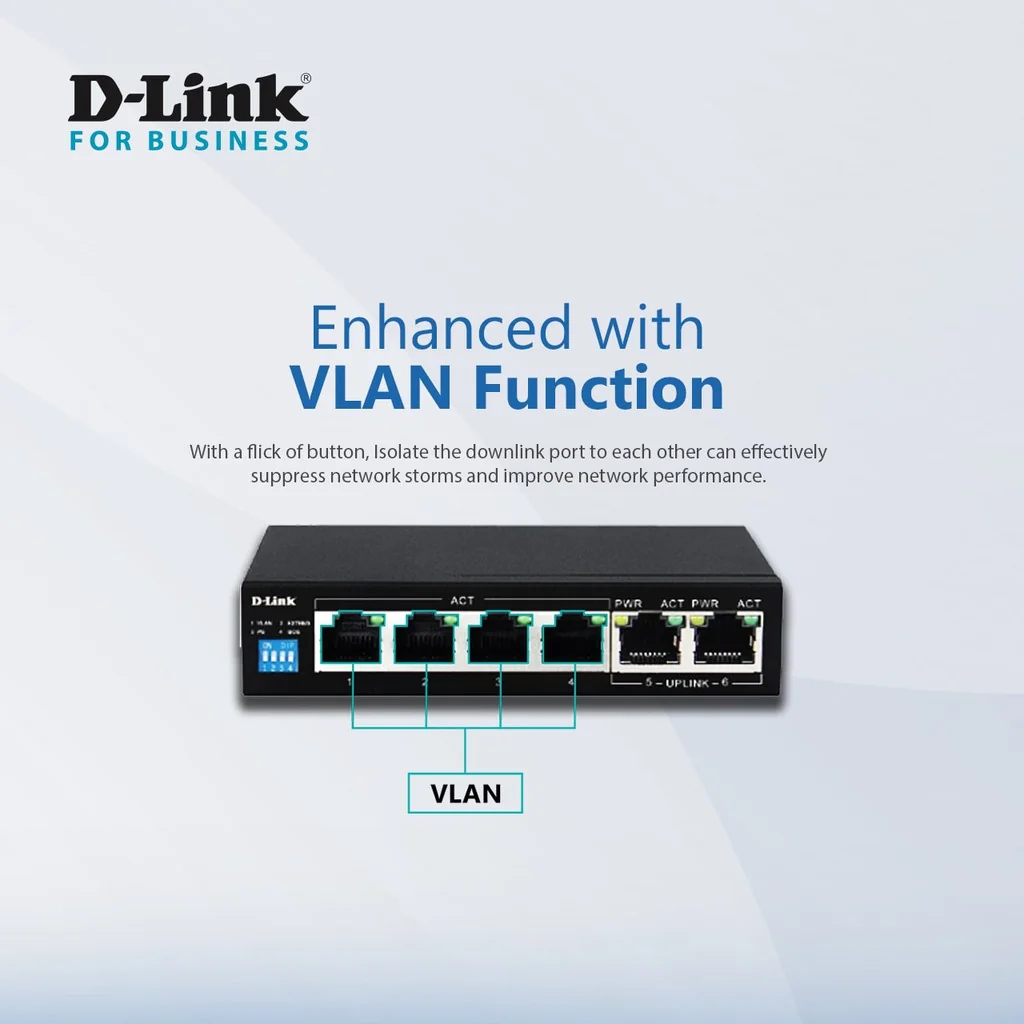

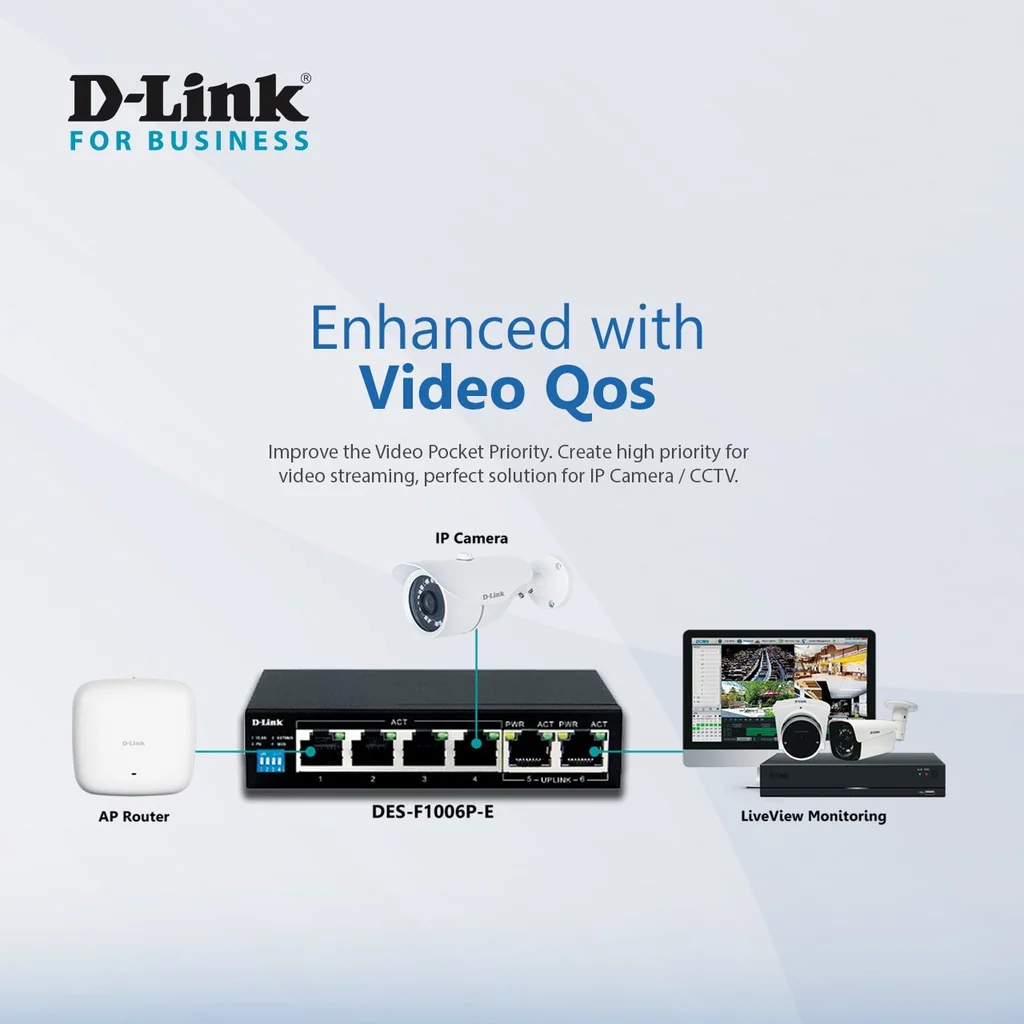

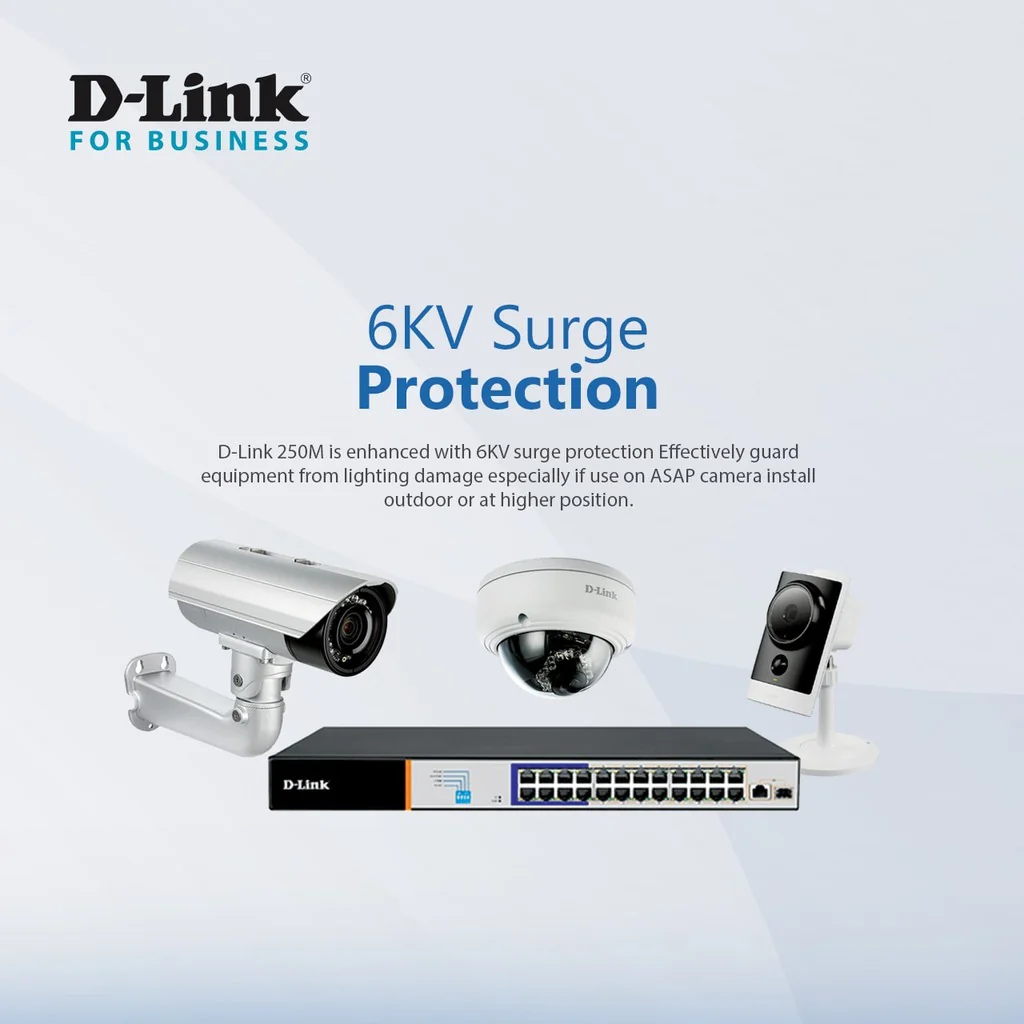

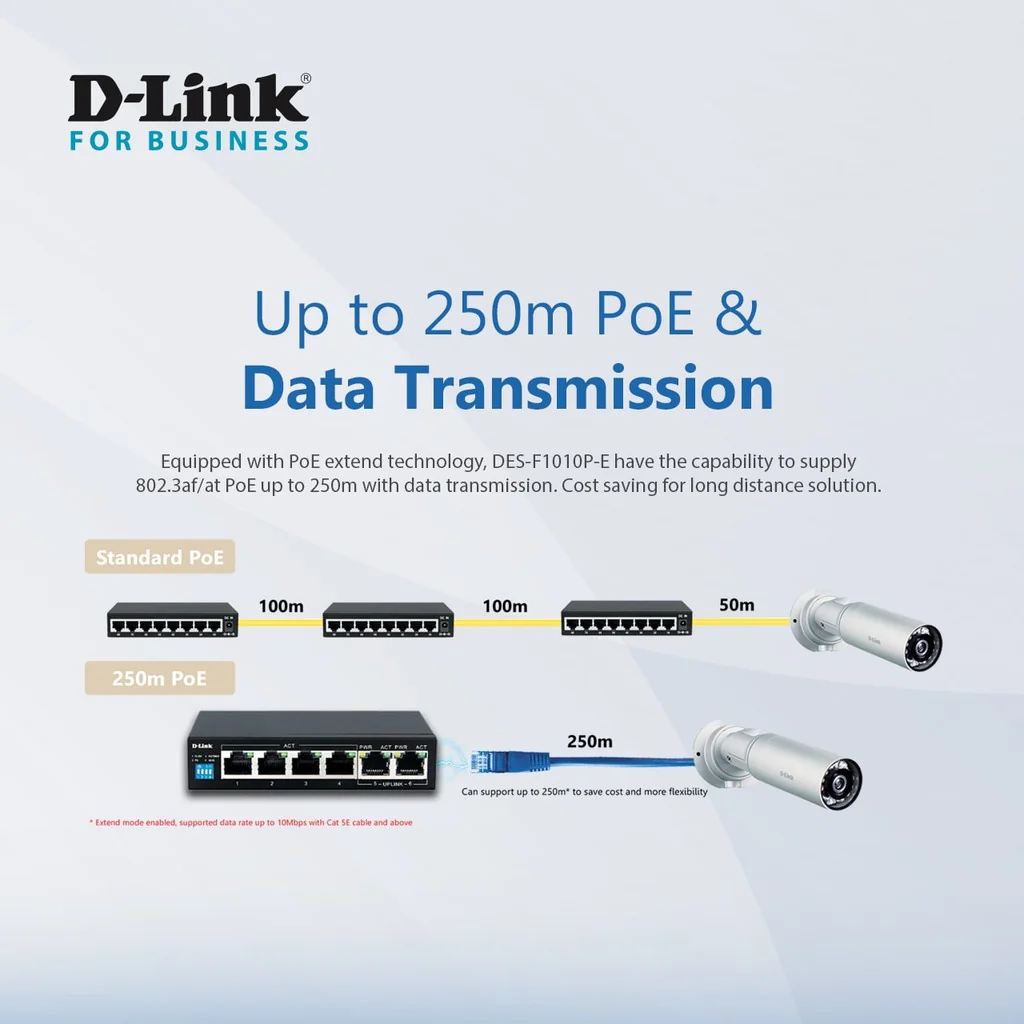

Product Highlights • Multiple models available: 6 / 10 / 18 Port PoE Switch • Up to 150W PoE budget for CCTV & IP camera deployment • Extend mode supports up to 250m long-distance transmission • IEEE 802.3af/at/bt compatibility for wide device support • Smart features: VLAN, QoS, AI PoE (selected models) • 6KV lightning protection for stable outdoor usage • Plug & play – no configuration needed Model Comparison 🔹 DES-F1006P-E (Basic Setup / Small CCTV) • 4 × PoE Ports + 2 × Uplink • 60W PoE Budget • 10/100 Mbps Ports • Extend Mode (250m) 🔹 DES-F1010P-E (Medium Setup / Office CCTV) • 8 × PoE Ports + 2 × Uplink • 96W PoE Budget (up to 30W/port) • 10/100 Mbps Ports • Extend Mode (250m) 🔹 DES-F1018P-E (Large Setup / Advanced CCTV) • 16 × PoE Ports • 1 × Gigabit Uplink + 1 × SFP Combo Port • 150W PoE Budget • Ports 15–16 support 60W (802.3bt) • AI PoE & AI Extend features Key Specifications Brand: D-Link Product Type: PoE Switch (DES-F1006P-E / DES-F1010P-E / DES-F1018P-E) Function Type: Wired Feature 1: 10/100Mbps PoE Ports Feature 2: 60W / 96W / 150W PoE Budget Feature 3: Extend Mode up to 250m Feature 4: VLAN & QoS Support Feature 5: Lightning Protection 6KV Dimensions & Weight DES-F1006P-E: Approx. 140 × 90 × 28 mm | 400g DES-F1010P-E: Approx. 190 × 100 × 30 mm | 600g DES-F1018P-E: Approx. 280 × 180 × 44 mm | 1.5kg What's in the Box • 1 × D-Link PoE Switch (Based on selected model) • 1 × Power Adapter / Power Cable • 1 × User Manual • 1 × Warranty Card Warranty Warranty Duration: 3 Year Warranty Type: Manufacturer Warranty
