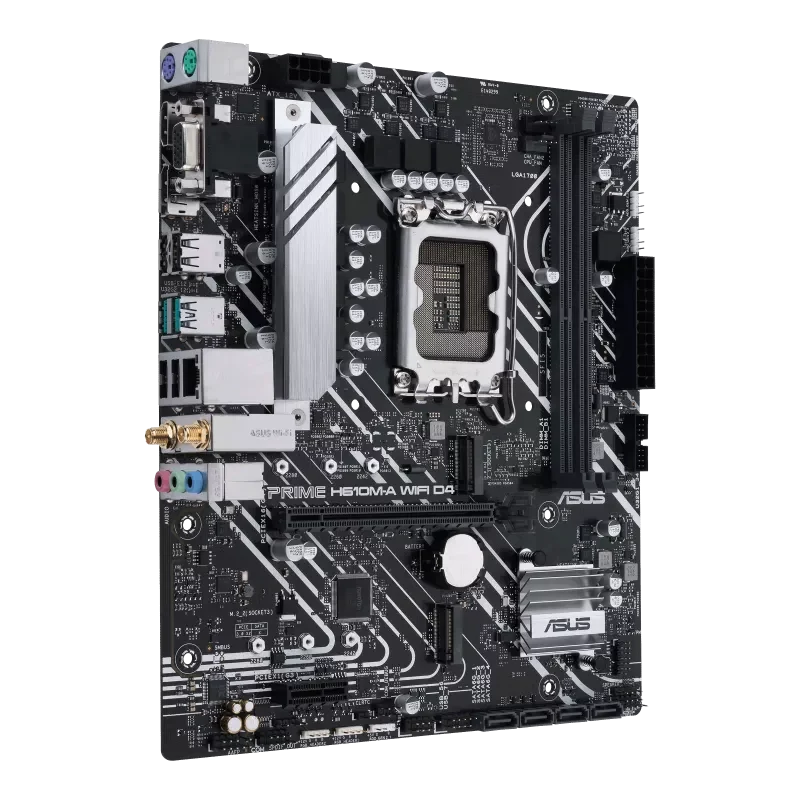

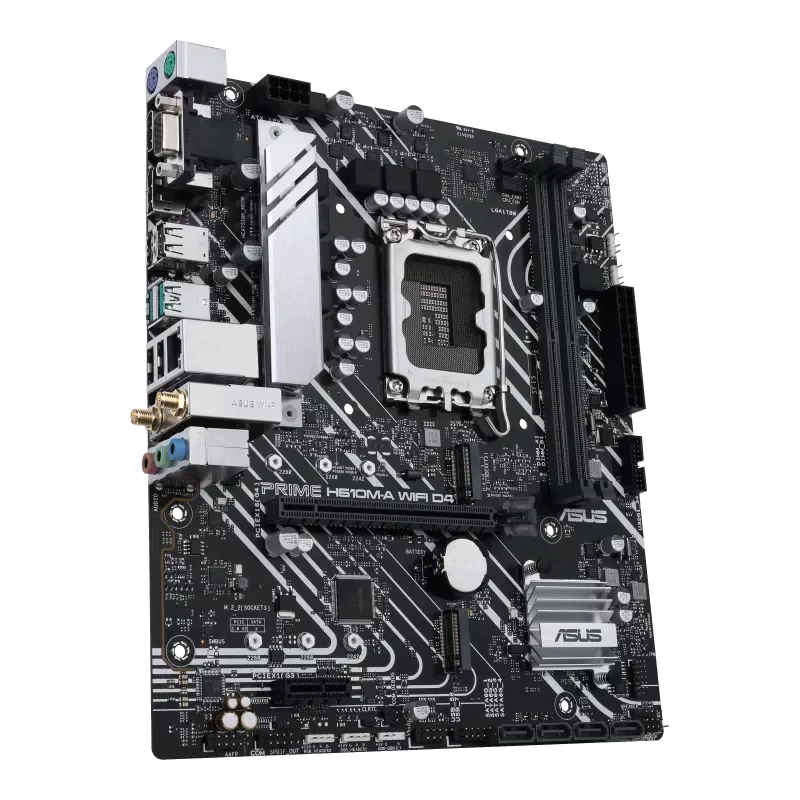

Asus Prime H610M-A WIFI D4 Micro ATX (mATX) Intel LGA1700 Motherboard

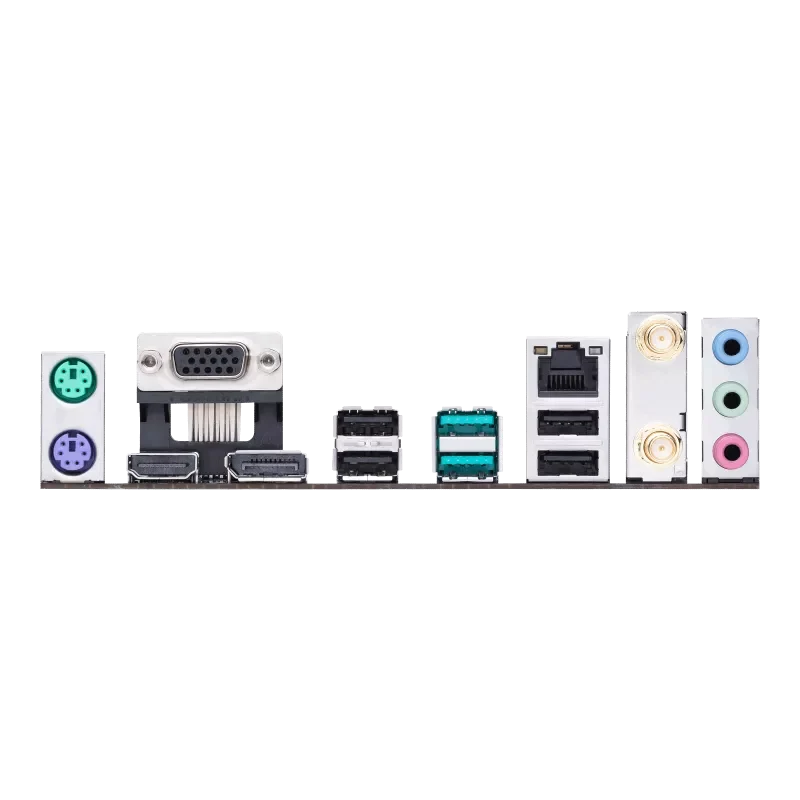

Product Highlights • Supports compatible 14th, 13th and 12th Gen Intel Core processors • Two DDR4 DIMM slots support up to 64GB of memory • PCIe 4.0 x16 slot supports modern graphics cards • Dual M.2 slots and four SATA ports provide flexible storage expansion • Built-in dual-band WiFi 5 and Bluetooth 5.0 connectivity • Intel Gigabit Ethernet provides stable wired network performance • DisplayPort and HDMI outputs support resolutions up to 4K at 60Hz • ASUS 5X Protection III provides enhanced component protection • Aura Sync headers support customizable RGB lighting Key Specifications Product Type: Micro-ATX Motherboard Model: PRIME H610M-A WIFI D4 CPU Socket: Intel LGA1700 Supported Processors: Intel Core 14th, 13th and 12th Gen, Pentium Gold and Celeron Processors Chipset: Intel H610 Memory Slots: 2 x DDR4 DIMM Maximum Memory: 64GB Memory Speed: Up to DDR4 3200MHz Memory Architecture: Dual-Channel Intel XMP Support: Yes Graphics Outputs: 1 x DisplayPort 1.4, 1 x HDMI 2.1 and 1 x D-Sub Maximum Display Resolution: Up to 4K at 60Hz via DisplayPort or HDMI Expansion Slots: 1 x PCIe 4.0 x16 and 1 x PCIe 3.0 x1 M.2 Slots: 2 M.2_1 Support: PCIe 3.0 x4, Type 2242 / 2260 / 2280 M.2_2 Support: PCIe 3.0 x2, Type 2242 / 2260 / 2280 SATA Ports: 4 x SATA 6Gbps Ethernet: Intel 1Gb Ethernet Wireless Connectivity: Dual-Band WiFi 5 Bluetooth: Bluetooth 5.0 Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC Rear USB Ports: 2 x USB 3.2 Gen 2 Type-A and 4 x USB 2.0 Type-A Front USB Support: 2 x USB 3.2 Gen 1 and 3 x USB 2.0 RGB Headers: 2 x Aura RGB Headers Addressable Headers: 3 x Addressable Gen 2 Headers BIOS: 128Mb Flash ROM, UEFI AMI BIOS Supported Operating Systems: Windows 10 64-Bit and Windows 11 64-Bit Form Factor: Micro-ATX Size & Weight Dimensions: 244 x 211 mm Weight: 815 g What’s in the Box • ASUS PRIME H610M-A WIFI D4 Motherboard • ASUS WiFi Moving Antenna • 2 x SATA 6Gbps Cables • I/O Shield • M.2 SSD Screw Package • Support DVD • User Guide Warranty: 3 Year Warranty
