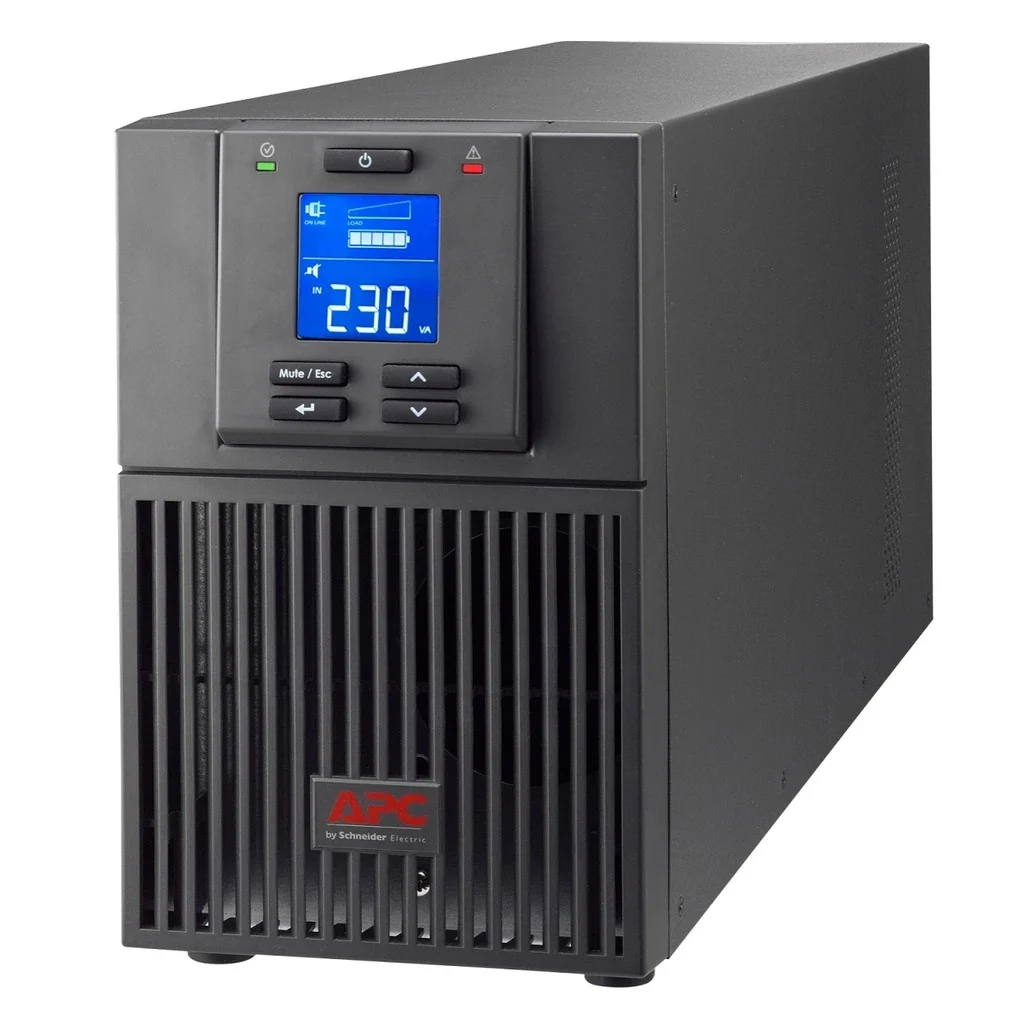

APC Easy UPS On-Line, 1000VA/900W, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD

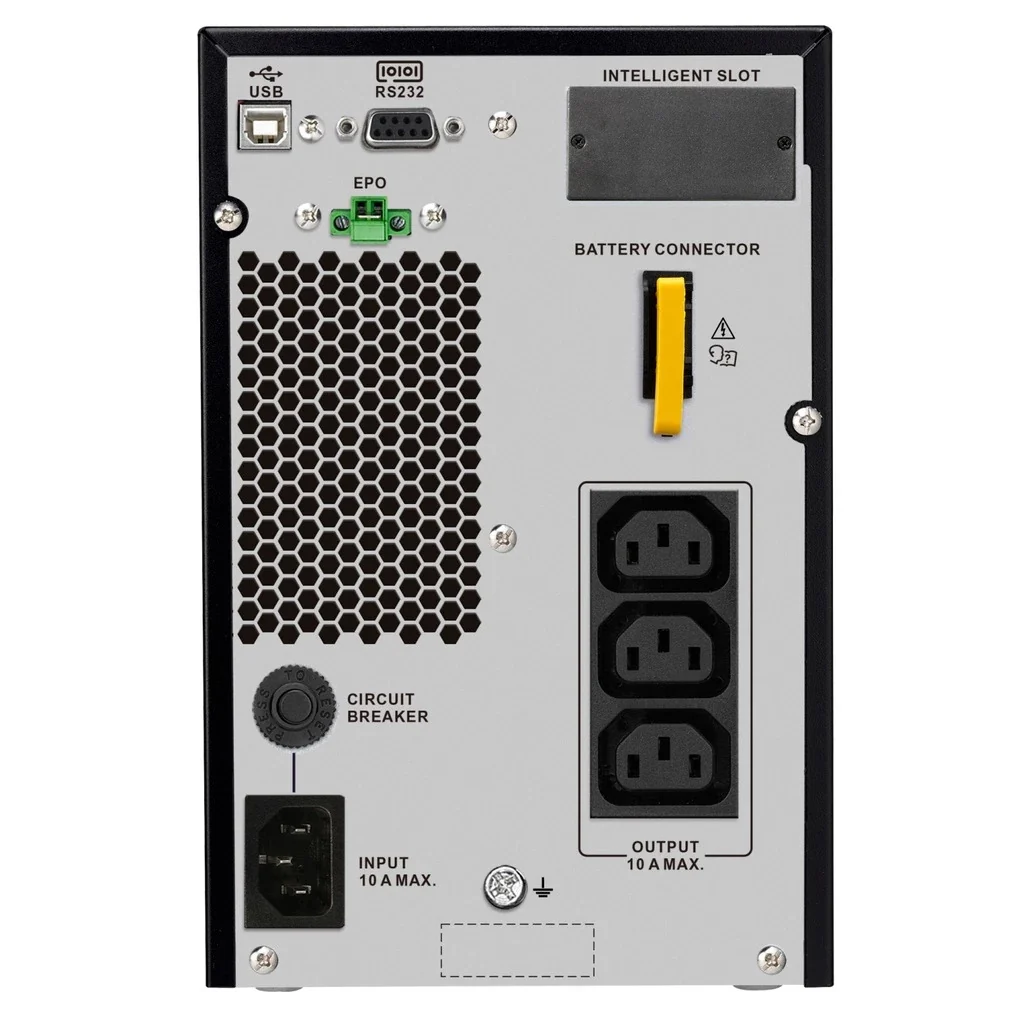

SRV1KI-E Main Input Voltage: 230 V AC 1 phase Input voltage: 220 / 240 V Input Connection Type: IEC 60320 C14 Input voltage limits: 110–285 V ±5% load / 180–285 V full load Network frequency: 40…70 Hz auto sensing Output voltage: 230 V AC 1 phase / 220 / 240 V Rated power in W: 900 W Rated power in VA: 1000 VA Output connection type: 3 IEC 60320 C13 Bypass type: Internal bypass (automatic and manual) Crest factor: 3:1 Harmonic distortion: 3 % Maximum configurable power in VA: 1000 VA Maximum configurable power in W: 900 W UPS type: Double conversion online Wave type: Sine wave Efficiency: 88 % (full load) Output frequency: 50/60 Hz +/- 3 Hz sync to mains Battery type: Lead-acid battery Additional information: Configurable for 220 , 230 or 240 nominal output voltage Battery voltage: 24 V Extended runtime: 0 Number of battery filled slots: 0 Number of battery free slots: 0 Battery recharge time: 4 h Battery life: 3…5 years Battery charger power: 30 W rated Battery type: Lead-acid internal included Control panel: Multifunction LCD status and control console Free slots: 1 Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm UPS connectivity: Serial port / USB port / Available expansion slot Surge energy rate: 945 J Cable length: 1.5 m Number of cables: 1 Colour: Black (RAL 7010) Height: 223 mm Width: 145 mm Depth: 288 mm Net weight: 9.6 kg Mounting location: Front Mounting preference: No preference Mounting mode: Not rack-mountable Two post mountable: 0 USB compatible: Yes Mounting position: Vertical Mounting mode: Tower Max runtime: 3 min Number of power module filled slots: 0 Number of power module free slots: 0 Redundant: No Range of product: Easy UPS On-Line Product or component type: Uninterruptible power supply (UPS) Number of tare power: 34 W Curve equation: Efficiency Curve fixed loss: 0.0408 Curve load minimum: 5 % Curve load maximum: 100 % Curve proportional loss: 0.0519 Curve square loss: 0.0198 Curve test cond ID: Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output. Curve X-axis title: Load Curve X-axis units: Percentage Curve X-axis minimum: 0 % Curve X-axis maximum: 100 % Curve Y-axis title: Efficiency Curve Y-axis units: Percentage Curve Y-axis minimum: 50 % Curve Y-axis maximum: 100 % Graph display: 1 Show note OP temperature: No Battery curve: D Liquid value: 0 Battery power in VAH: 155 VAH runtime UPS size: WS Product certifications: CE / UKCA / TISI Standards: EN/IEC 62040-1:2019/A1:2021 / EN/IEC 62040-2:2006 / EN/IEC 62040-2:2018 Ambient air temperature for operation: 0…40 °C Ambient air temperature for storage: -20…50 °C Operating altitude: 0…3000 m Storage altitude: 0…15000 m Relative humidity: 0…95 % non-condensing Storage Relative Humidity: 0…95 % non-condensing IP degree of protection: IP20 Acoustic level: 50 dBA Heat dissipation: 380 Btu/h Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 33.000 cm Package 1 Width: 23.500 cm Package 1 Length: 36.500 cm Package 1 Weight: 10.900 kg Unit Type of Package 2: P06 Number of Units in Package 2: 2 Package 2 Height: 45.000 cm Package 2 Width: 60.000 cm Package 2 Length: 80.000 cm Package 2 Weight: 29.000 kg Warranty (in months): 24
