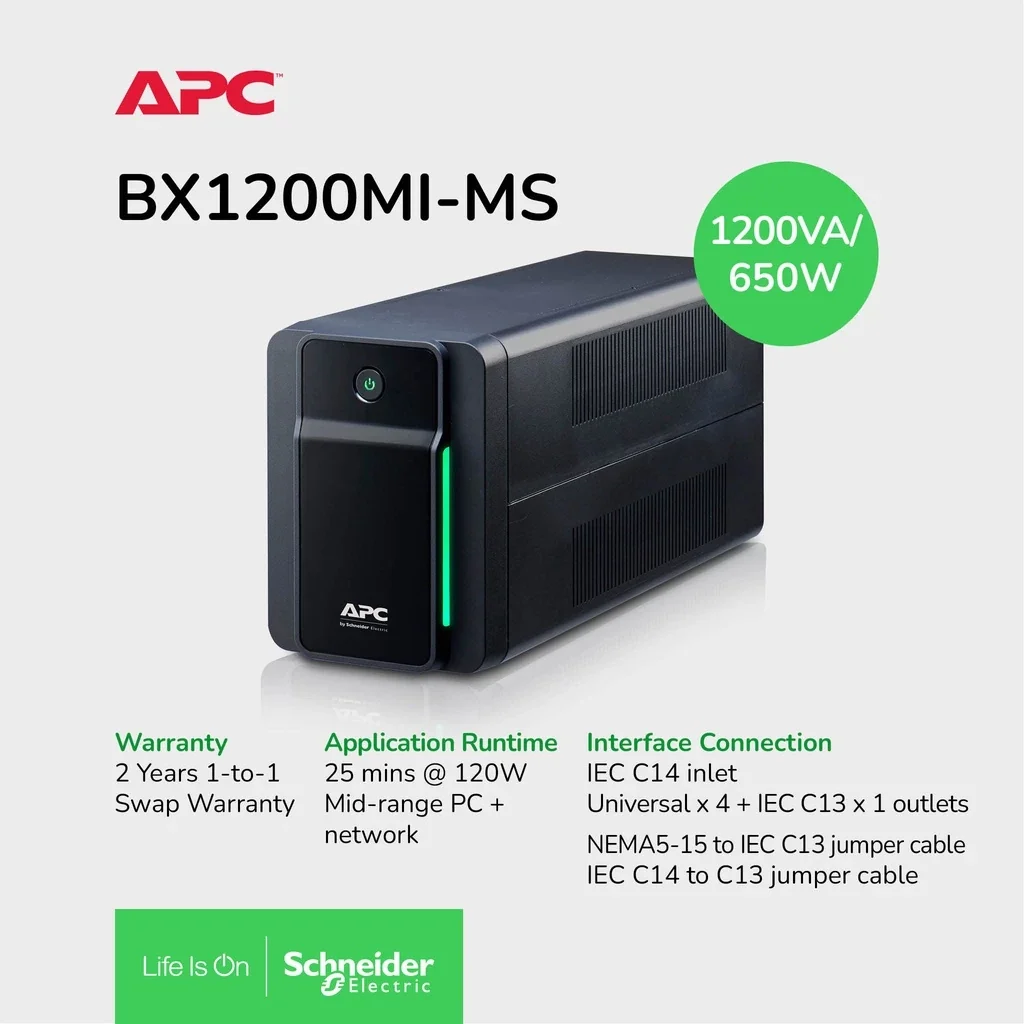

APC Easy UPS Backup Battery 1200VA, 230V, 4 UNIVERSAL Outlets

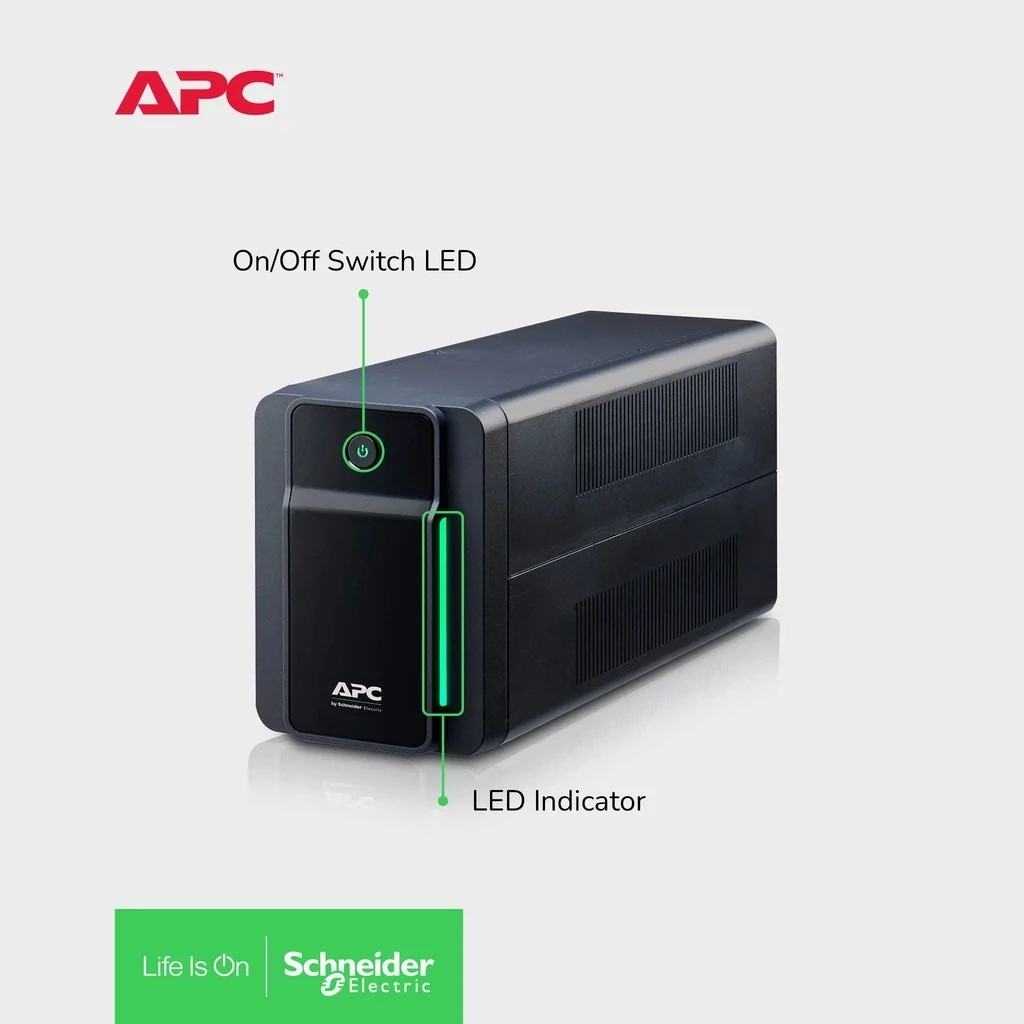

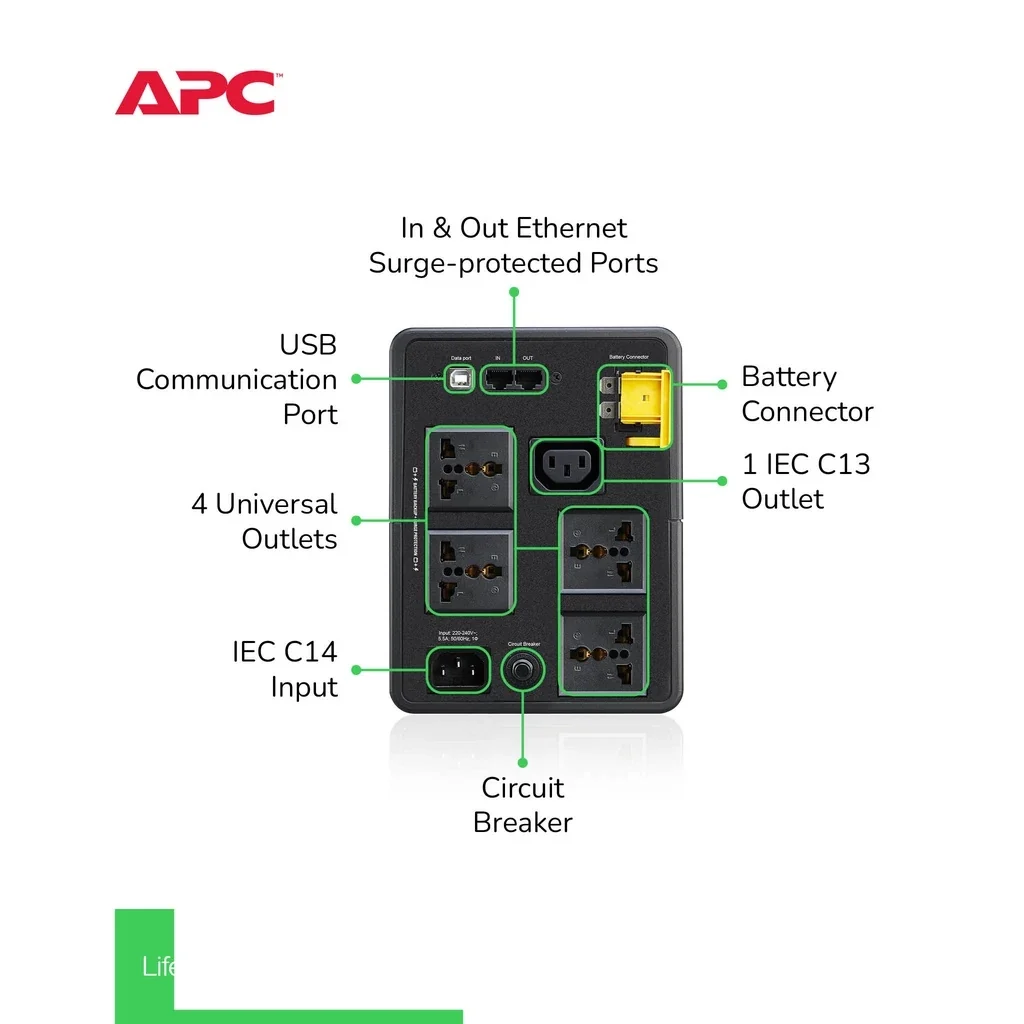

BX1200MI-MS Main Input Voltage: 230 V AC 1 phase Cos phi: 0.54 Input voltage limits: 140…300 V Network frequency: 50/60 Hz +/- 5 Hz auto-sensing Output voltage: 230 V AC 1 phase Rated power in W: 650 W Rated power in VA: 1200 VA Output connection type: 4 universal, 1 IEC 60320 C13 USB Charging Port: None Maximum configurable power in VA: 1200 VA Maximum configurable power in W: 650 W Transfer time: 6 ms typical, 10 ms maximum UPS type: Line interactive Wave type: Stepped approximation to a sinewave Full load runtime: 00:01:00 (650 W) Half load runtime: 00:05:00 (300 W) Output frequency: 50/60 Hz +/- 1 Hz sync to mains Battery type: Lead-acid battery Battery voltage: 12 V Battery graph comments: Curve fit measured runtime. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. Extended runtime: 0 Number of battery filled slots: 0 Number of battery free slots: 0 Battery recharge time: 8 h Battery life: 3…5 year(s) Battery type (internal): Lead-acid internal included Control panel: LED Status display with on line / on battery UPS connectivity: None Surge energy rate: 273 J Cable length: 1.2 m Number of cables: 1 Colour: Black Height: 190 mm Width: 140 mm Depth: 390 mm Net weight: 7.6 kg Mounting preference: No preference Mounting mode: Not rack-mountable Two post mountable: 0 USB compatible: Yes Mounting mode (form factor): Tower Number of power module filled slots: 0 Number of power module free slots: 0 Redundant: No Range of product: Back-UPS Product or component type: Uninterruptible power supply (UPS) Product certifications: CE Standards: EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006 EN/IEC 62040-2:2018 Ambient air temperature for operation: 0…40 °C Ambient air temperature for storage: -15…40 °C Storage altitude: 0…3000 m IP degree of protection: IP20 Relative humidity: 0…95 % non-condensing Storage relative humidity: 0…95 % non-condensing Acoustic level: 40 dBA Operating altitude: 0…3000 m Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 29.7 cm Package 1 Width: 49.5 cm Package 1 Length: 23.5 cm Package 1 Weight: 8.6 kg SCC14: 10731304410710 Warranty (in months): 24
