Product

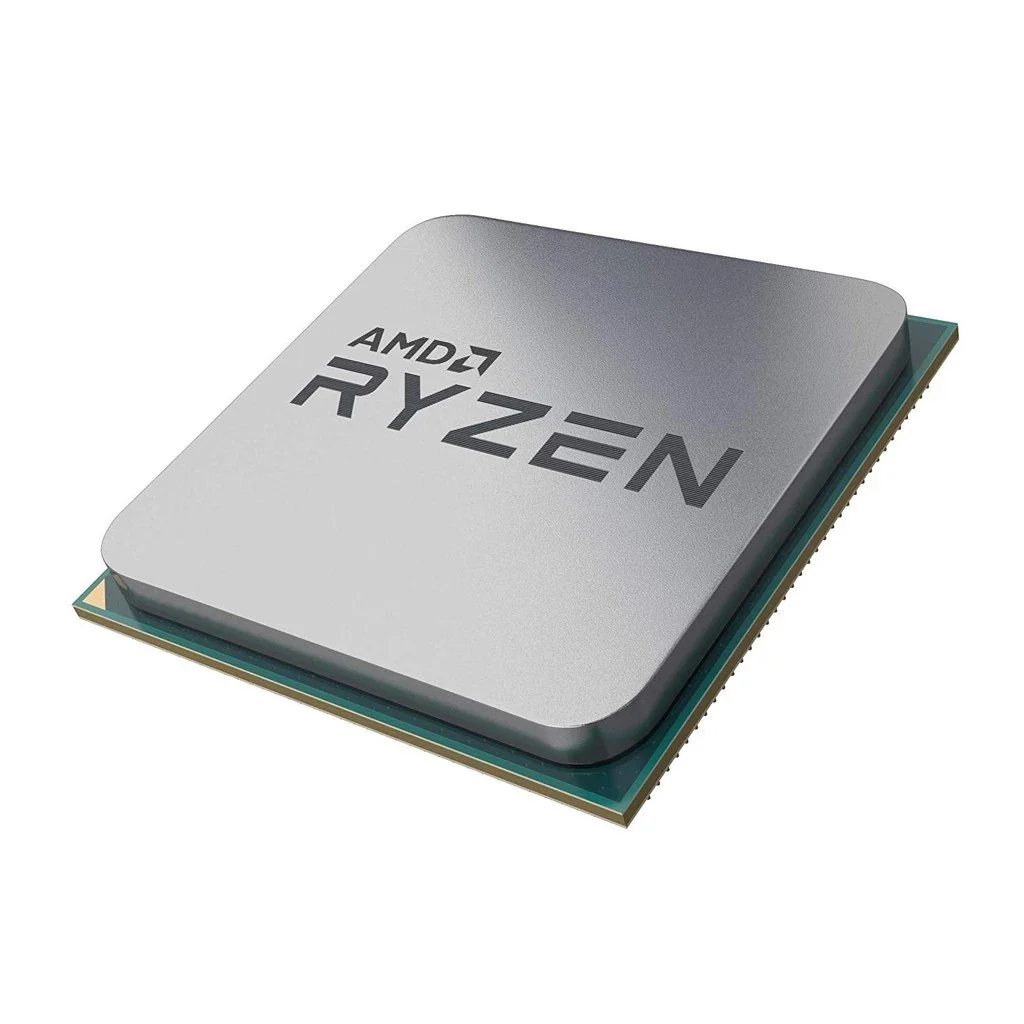

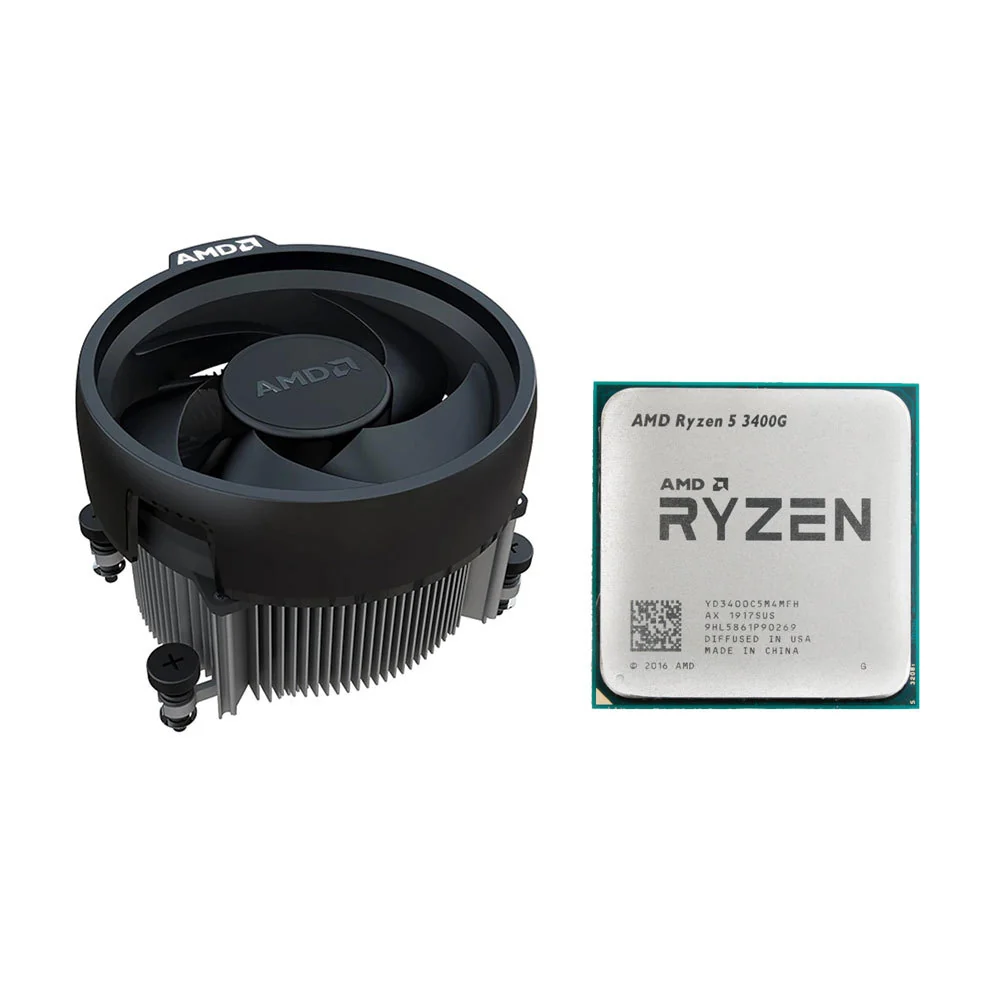

AMD Ryzen 5 3400G AM4 Processor (4-Cores/8-Threads) | AMD Ryzen 5 3000 Series

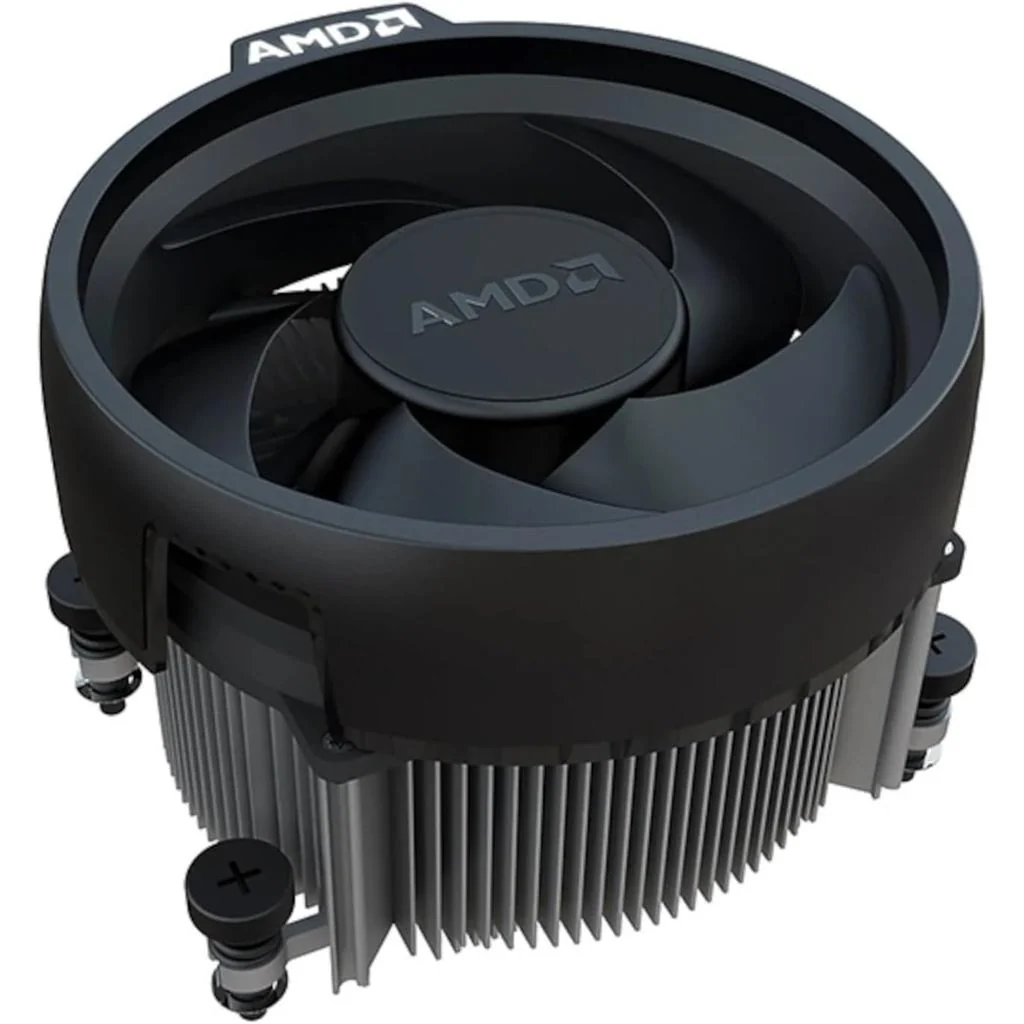

Product Highlights • AMD Ryzen™ 5 desktop processor with integrated Radeon™ RX Vega 11 Graphics • 4 cores and 8 threads for smooth multitasking and everyday performance • Boost clock up to 4.2GHz for responsive gaming and productivity • Integrated Vega 11 graphics supports gaming without dedicated GPU • Supports DDR4 memory and PCIe® 3.0 platform • Includes AMD Wraith Spire cooling solution Key Specifications Product Type: Desktop Processor Processor Family: AMD Ryzen™ Series: Ryzen 3000 Series Processor Name: AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics Form Factor: Desktop Boxed Processor Market Segment: Mainstream Desktop Code Name: Picasso Processor Architecture: Zen+ CPU Cores / Threads: 4 Cores / 8 Threads Multithreading (SMT): Yes Max Boost Clock: Up to 4.2 GHz Base Clock: 3.7 GHz Cache: • L1 Cache: 384 KB • L2 Cache: 2 MB • L3 Cache: 4 MB TDP: 65W Configurable TDP (cTDP): 45W – 65W Manufacturing Process: 12nm FinFET Unlocked for Overclocking: Yes Socket: AM4 Supported Chipsets: • X570 • X470 • X370 • B450 • B350 • A320 CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions: • AES • AMD-V • AVX • FMA3 • MMX-plus • SHA • SSE / SSE2 / SSE3 / SSE4.1 / SSE4.2 / SSE4A • SSSE3 • x86-64 Thermal Solution: AMD Wraith Spire Max Operating Temperature (Tjmax): 95°C Launch Date: 07/07/2019 Operating System Support: • Windows 10 64-Bit • RHEL x86 64-Bit • Ubuntu x86 64-Bit Connectivity PCI Express® Version: PCIe® 3.0 Native PCIe® Lanes: 20 Total / 16 Usable NVMe Support: • Boot • RAID0 • RAID1 • RAID10 Native USB 3.2 Gen 1 (5Gbps): 4 System Memory Type: DDR4 Memory Channels: 2 Max Memory Capacity: 64GB Memory Subtype: UDIMM Max Memory Speed: • 2×1R DDR4-2933 • 2×2R DDR4-2667 • 4×1R DDR4-2133 • 4×2R DDR4-1866 ECC Support: Yes (Motherboard Support Required) Graphics Specifications Graphics Model: Radeon™ RX Vega 11 Graphics Graphics Core Count: 11 Graphics Shaders: 704 Graphics Frequency: 1400 MHz GPU Max Memory: 2GB DirectX® Version: 12 OpenGL® Version: 4.6 OpenCL™ Version: 2.2 WDDM Version: 2.7 DisplayPort™ Version: 1.4a HDMI® Version: 2.0 HDCP Support: 2.2 Max Displays: 3 Multi-Monitor Support: Yes AMD FreeSync™: Yes Wireless Display: Miracast USB Type-C® DisplayPort™ Alternate Mode: Yes Dimensions & Weight: Package Type: Retail Box Processor What's in the Box: • 1 × AMD Ryzen™ 5 3400G Processor • 1 × AMD Wraith Spire Cooler • User Documentation Warranty: 3 Years Warranty
